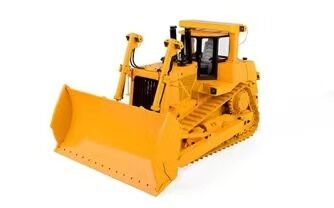

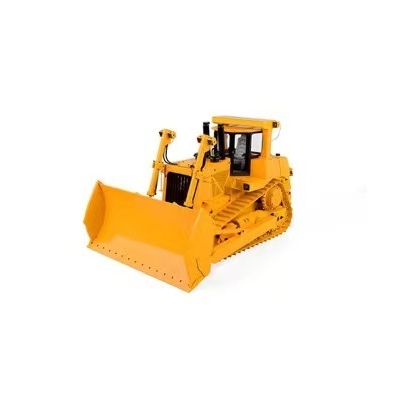

1/14 Scale DXR2 Hydraulic Earth Dozer

SKU: VV-JD00015

$4,709.97
RRP $5,233.30
SAVE $523.33 (10%)
Out of Stock: Available to Order



Fixed Rate By Invoice Total - $0.00
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies, or any other oversized, or over weight items - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Warehouse - $0.00
Pick up from: 3rd Party Warehouse in Smeaton Grange NSW 2567, between 9:30am - 4:30pm, Monday - Friday (exc. public holidays). This is strictly PICK-UP ONLY, in-store purchasing is NOT available. Confirmation email will be sent when goods are ready for pickup. Confirmation will include the pick-up address. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all inquiries please email sales@rchobbies.com.au

1/14 Scale DXR2 Hydraulic Earth Dozer





Notice: This product is for experienced RC hobbyists. This is not recommended for anyone under the age of 16.





Specifications:

  • Alloy Zinc and Alloy Aluminum Casting (except Track and Hydraulic Pump)
  • Weld Steel Bucket
  • 9 Channel 2.4GHZ Radio
  • Heavy Duty Hoses (OD 3.2mm Nylon, ID 2.2mm)
  • Main Heavy Duty Hoses (OD 4mm Nylon, ID 2.5mm)
  • Optimized Steel Hydraulic System
  • Reliable Hydraulic Valve and Adjustable Pump
  • Brushless Hydraulic System
  • Lipo Cutoff
  • Full Metal Scale
  • All Terrain Metal Crawler
  • 540 Brushed Monster Torque Motor
  • Full Metal Transmission (1:256 Gear Ratio)
  • Run Time is: 38 Minutes (5300mAh Battery)
  • Chrome Steel Oil Pump (47.5mm x 35mm x 36mm)
  • Bucket Capacity: 494949 mm³
  • Maximum Bucket Force (Down): 76kg / 167pounds
  • Maximum Bucket Force (Up): 50kg / 110pounds
  • Maximum Bucket Force (Thrust): 50kg / 110pounds
  • Driving Speed: 408 Meter Per hour
  • Scale: 1:14
  • Length: 27in / 685mm
  • Width: 13.8in / 351mm
  • Height: 12.7in / 323mm
  • Bucket Height: 6.87in / 174.6mm
  • Maximum Bucket Up and Down Angle: 29 degrees
  • Maximum Bucket Tilt Angle (Left and Right): 9 degrees
  • Maximum Ripper Depth of the Ground: 1.97in / 50mm
  • Total Mass Load: 37kg / 82LBs
  • Operating Oil Pressure: 25Bar, 362.5psi
  • Dead Weight: 26kg / 57LBs




















































What's Included:

  • 1x 1/14 Scale DXR2 Hydraulic Earth Dozer


Required Parts:

  • 5000mAh 11.1V 50C 3S1P Short-Size Lipo Battery Pack with XT60 Plug
  • Compatible Battery Charger
  • 8x AA Batteries for Radio (Z-S1718)
  • AW ISO 32 Hydraulic Oil 14oz (Z-X0042)


Replacement Parts:

  • Earth Digger 4200XL Excavator Brushed ESC (VVV-S0011)
  • DXR2 Dozer Tracks (VVV-S0166)

Optional Parts:

  • Semi Truck Sound Unit (VVV-S0074)
  • 1/14 Scale DXR2 Hydraulic Earth Dozer Light System (VVV-S0173)
  • Universal Scale Functional Radiator for Hydraulic Equipment (VVV-S0246)
  • HD Abrasion U Dozer Blade for DXR2 Hydraulic Earth Dozer (VVV-S0251)



Before operation, please check here for preparation procedure. Click Here

Instruction Manuals:

Notes:

  • While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
  • ESC Supports Bullet Connector
  • Use good quality hex drivers to avoid stripping screw heads.
  • Use thread lock when putting metal screws into metal parts.
  • Steps marked with an asterisk (*) require thread lock.
  • Use thread lock sparingly.
  • Do not over tighten screws otherwise you may strip the thread.
  • Do not adjust the oil pressure switch.
  • Each unit is professionally assembled, adjusted and tested.
  • Oil pressure may drop as you operate over time.
  • Battery Size should be within 140x40x44MM (LxWxH)
  • Manufactured by JDCustoms 30 Days Limited Warranty





Warranty Information:

  • This product is made for heavy duty usage. Since there is no plastic parts, its designed to last. But hydraulic pump, hoses and electronics system can break over time. Do not let the system overheat during usage. We will have all spare parts available for sell. Pump, hoses and electronic systems are not covered under warranty, but we do guarantee fully functional at arrival. Each unit is full tested twice before we ship.

Each unit is professionally assembled, adjusted and tested. Do not adjust the oil pressure switch. Oil pressure will drop as you operate over time.
