COMBO AXE Plus R3 & AXE540L-3300KV-R2

SKU: HW38020389

$338.53
RRP $376.14
SAVE $37.61 (10%)
Only 3 Left!



Fixed Rate By Invoice Total - $25.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies, or any other oversized, or over weight items - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Warehouse - $0.00
Pick up from: Warehouse in Smeaton Grange NSW 2567 Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please email sales@rchobbies.comau. Thanks.

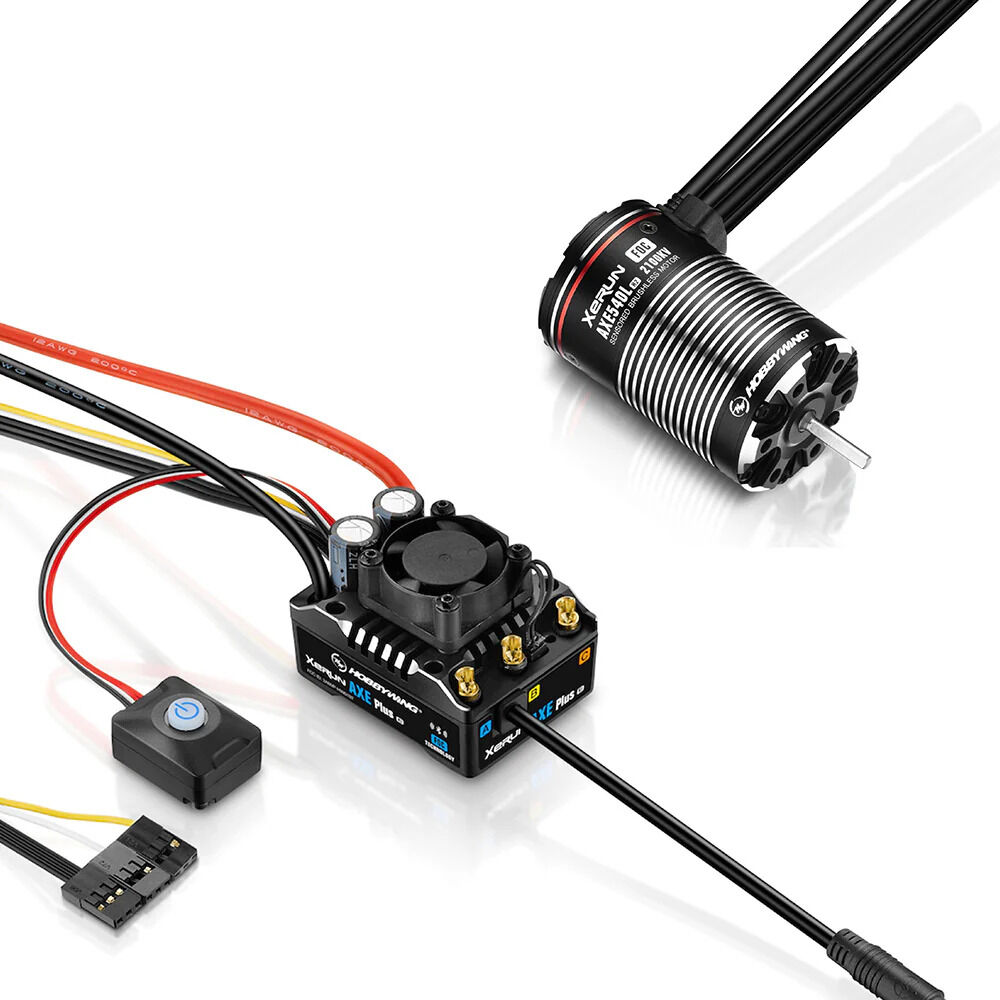

HOBBYWING XERUN AXE PLUS R3 & AXE 550L 3300KV R2 MOTOR



Experience the best of control and power with the Combo Xerun AXE Plus R3 & AXE 550L 3300KV R2 Motor by Hobbywing. This combination offers precise control and impressive performance for RC enthusiasts seeking top-tier performance. The Xerun AXE Plus R3 ESC ensures a smooth ride, while the AXE 550L 3300KV R2 Motor delivers powerful acceleration. Together, they elevate your RC adventures to new heights, ready to tackle any challenge.

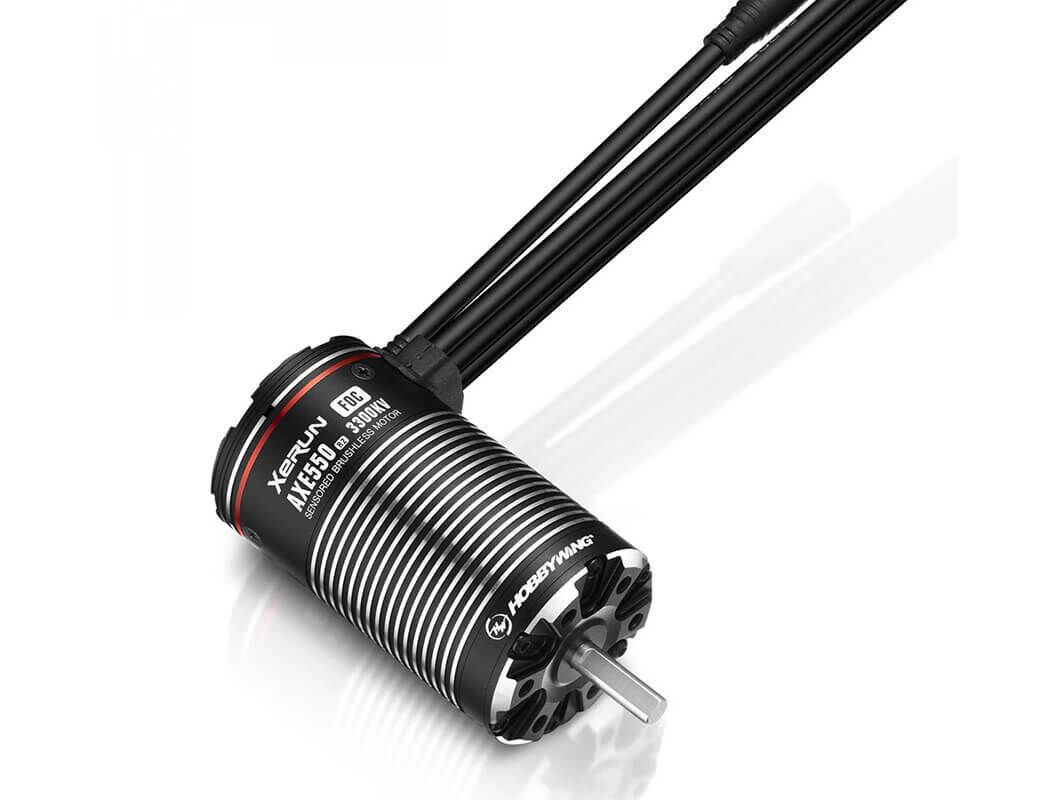

Features Motor

  • FOC (Field-Oriented-Control) for super linearity and high torque
  • Patented Staggered Pole rotor design for ultra-low torque ripple
  • Applicable to all weather and track conditions
  • Built-in high precision magnetic encoder

Technical Specifications Motor

Type: Brushless FOC
Pole: 4
KV Rating: 3300KV
LiPo Cells: 2S-3S
No Load Current: 4.7A
Outer Diameter: 36.0mm
Length: 63.8mm
Shaft Diameter: 5mm
Shaft Length: 15.5mm
Weight: 247g
Application: 1/10 Rock Crawler

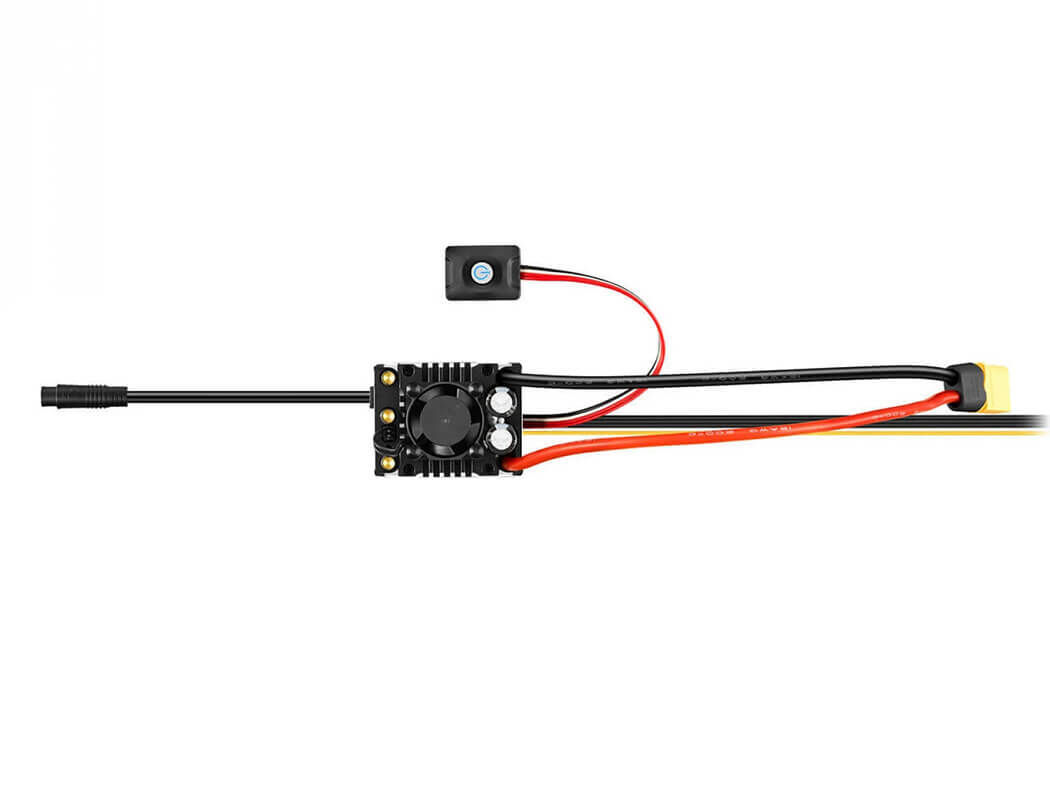

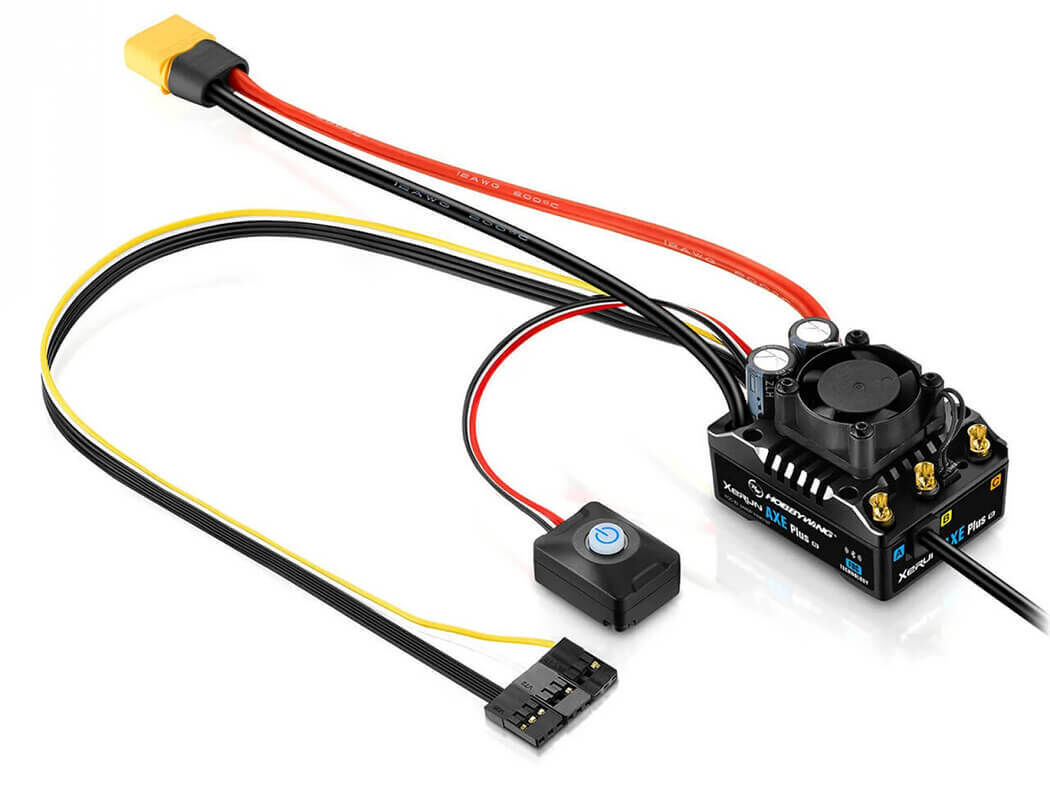

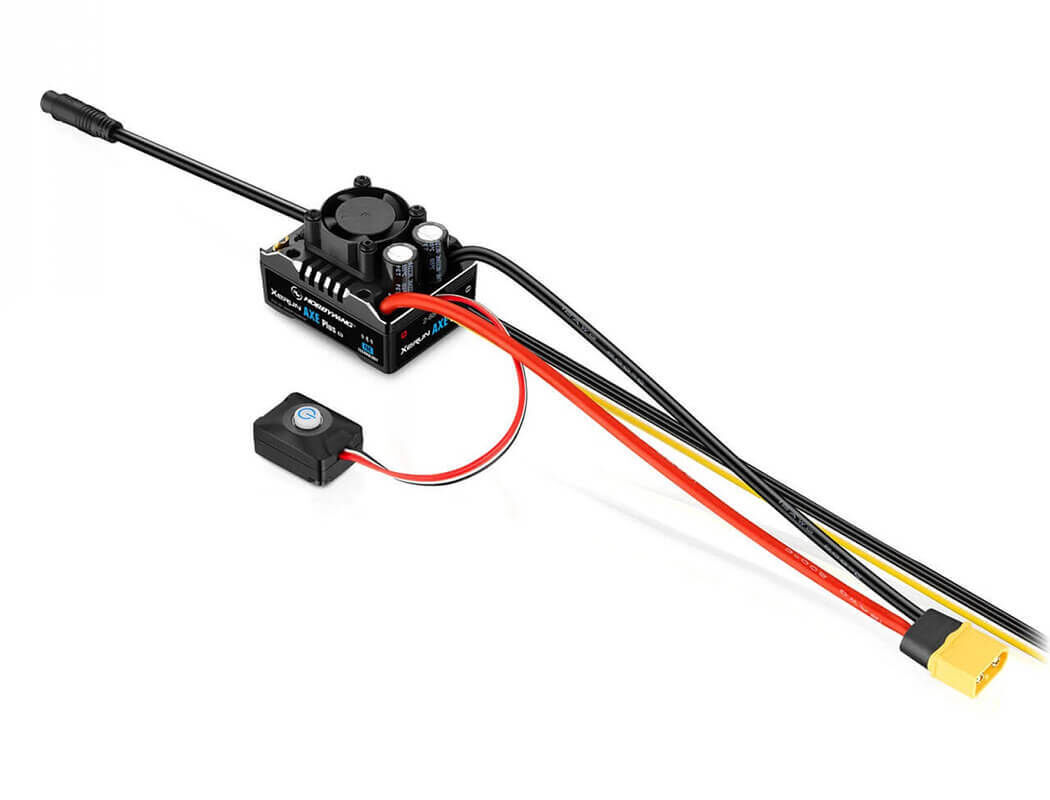

Features XeRun AXE Plus R3

  • Stronger performance thanks to FOC (Field-Oriented-Control) technology.
  • Drag brake adjustable up to 200% for unparalleled holding power on slopes.
  • Super BEC with max. 6A and three voltage levels for using different servos.
  • Waterproof and dustproof to IP67 standard.
  • Smart torque delivery and speed control for easy control and constant speed under all loads.
  • Built-in Bluetooth module.
  • Multiple controller protection functions including reverse polarity protection.
  • Only compatible with Xerun AX "R2" and "R3" motor series.

Technical Specifications XeRun AXE Plus R3

Type: Brushless Sensored FOC
Current (cont./peak): 135A / 600A
Cells: 2S-6S LiPo
Motor Limits: Only supports Xerun-AXE "R2" and "R3" motor series
AXE R2: 540 / 540L / 550
AXE R3: 4274
BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)
Waterproof: Yes
Cables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
Fan: 25 x 25 x 10mm, powered by BEC
Connectors: XT60
Programming: Per Bluetooth and "HW LINK"-App
Firmware Upgrade: Yes

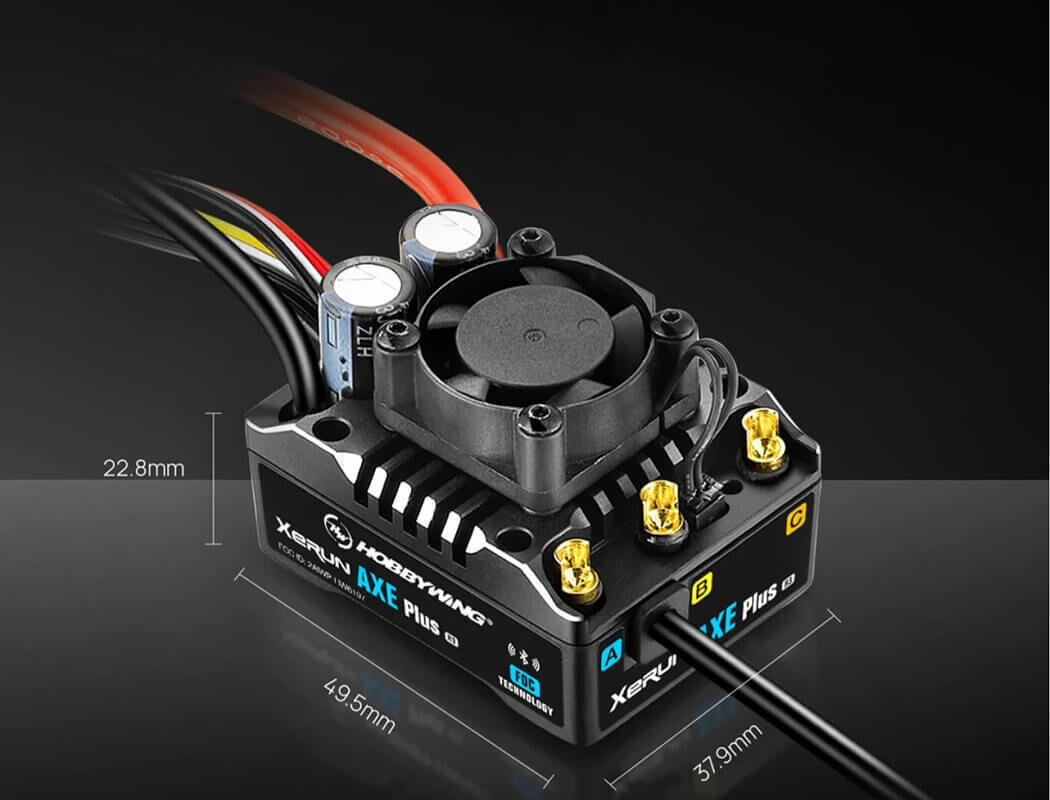

Dimensions: 49.5 x 37.9 x 32.8mm
Weight: 126.5g
Application: 1/10, 1/8, 1/6 Rock Crawler



(HW38020389)
