COMBO-MAX10 G2S-140A&3665SD-2400KV-G3

SKU: HW38010209

$269.99
RRP $299.99
SAVE $30.00 (10%)
Available



Fixed Rate By Invoice Total - $25.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies, or any other oversized, or over weight items - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Warehouse - $0.00
Pick up from: Warehouse in Smeaton Grange NSW 2567 Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please email sales@rchobbies.comau. Thanks.

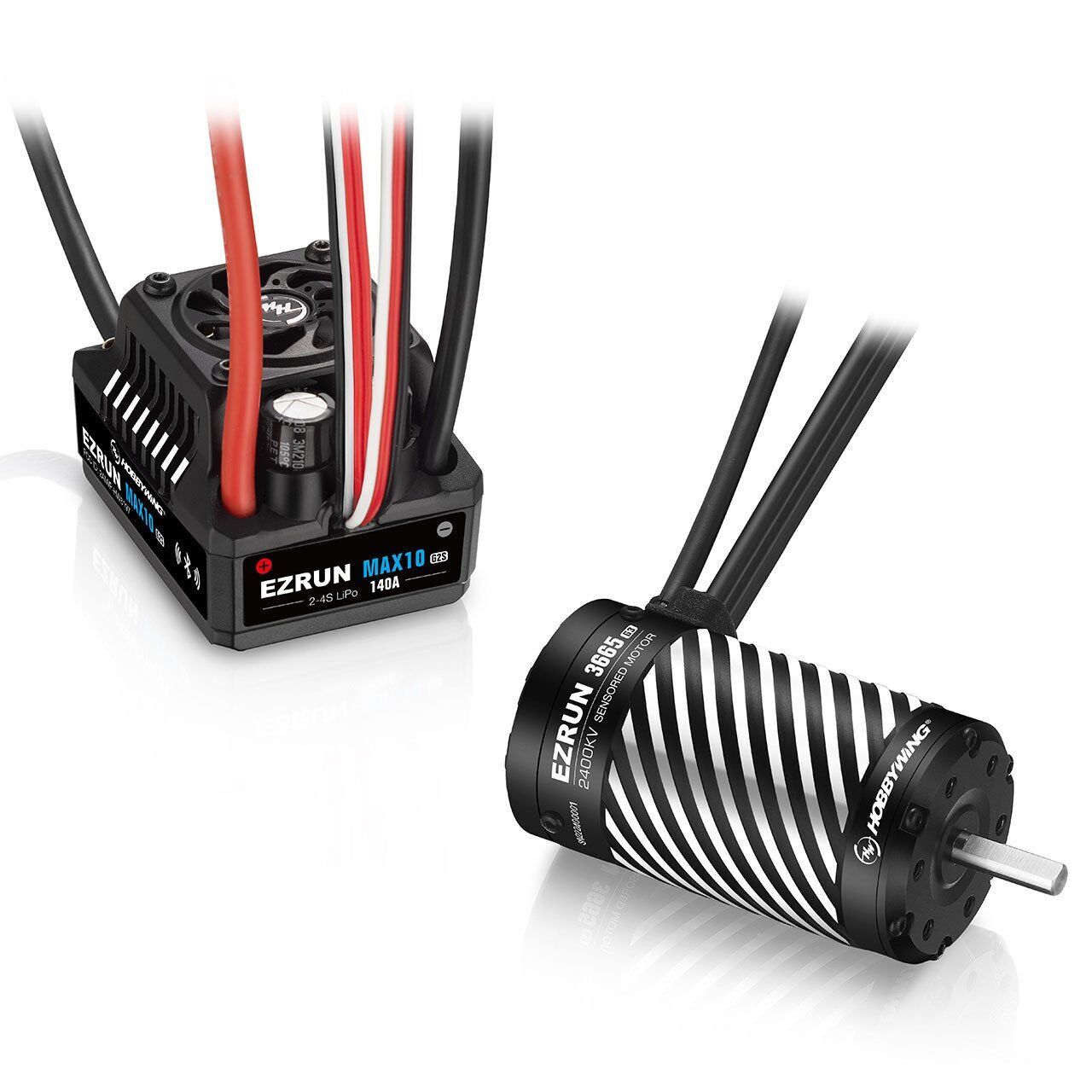

Product information "Hobbywing Ezrun MAX10 G2S 140A Combo with 3665SD-2400kV-G3"

This combo pairs the Ezrun MAX10 G2S with 140A and the matching Ezrun 3665SD G3 rated 2400kV - a factory-matched 1/10 scale drivetrain package.

The MAX10 G2S is the consistent evolution of the MAX10 G2: identical power ratings, identical case - but an ESC that can be set up without any additional hardware. The Bluetooth module sits inside the power switch, the connection to the smartphone runs through the HW LINK app, and parameter setup, data review and firmware updates all run through it. Also new over the G2 are the internal data logging and the third BEC step of 8.4V for high-voltage servos.

This pairing is exactly where the ESC plays to its strength: turbo timing can only be enabled with Hobbywing motors and raises maximum RPM by up to approx. 25%. Motor overheat protection likewise only works with a supported Hobbywing motor. The supplied Ezrun 3665SD G3 provides both out of the box.

Features

  • Bluetooth module integrated into the power switch - programming straight from a smartphone, no extra devices
  • Internal data logging of the last 10 minutes of runtime, reviewed graphically in the HW LINK app
  • Turbo timing up to 32 degrees - up to approx. 25% higher maximum RPM with the supplied motor
  • Three-step BEC: 6V / 7.4V / 8.4V at 5A in switch mode
  • Frameless fan with side air discharge, switched in by temperature
  • ESC and motor dust- and waterproof to IP67, with waterproof sensor cable
  • Capacitor overheat protection
  • Protection against low voltage, overheating and loss of signal
  • 4-pole rotor for high torque, quick acceleration and stable performance
  • CNC machined aluminium housing and high-precision bearings on the motor

Technical Specifications

ESC (Ezrun MAX10 G2S 140A)
Type 1/10 brushless, sensored and sensorless
Current (cont./peak) 140A / 880A
Input Voltage 2-4S LiPo
BEC 6V / 7.4V / 8.4V adjustable, 5A continuous (switch mode)
Motor Limits 2S LiPo: KV <= 6000 (3652 size motor)
3S LiPo: KV <= 4000 (3665 size motor)
4S LiPo: KV <= 2600 (4268 size motor)
Turbo Timing up to 32 degrees
Fan Yes, powered by the BEC
Programming Bluetooth (HW LINK app)
LCD program box
OTA program module
Programming Port Separate, 3-pin
Waterproof Yes, to IP67
Input XT60
Output Gold bullet sockets
Dimensions 53 x 39.5 x 37.2 mm
Weight 125 g (incl. wires and connectors)
Application 1/10 Short Course Truck, Truck and Monster Truck
Motor (Ezrun 3665SD G3)
Type Brushless, Sensored
kV Rating 2400kV
No-Load Current <= 5.2A
Cells 2-4S LiPo
Poles 4
Length 65.8 mm
Diameter 37 mm
Shaft Diameter 5 mm
Weight 304 g
Waterproof Yes, to IP67
Application 1/10 On-Road / Off-Road Short Course Truck (light duty)

Note: A 3S battery or larger is required for 7.4V or 8.4V at the BEC. The effective Bluetooth range is approx. 5 m by design.

Delivery

  • 1x Ezrun MAX10 G2S ESC 140A
  • 1x Ezrun 3665SD G3 motor rated 2400kV

Optional Accessories

  • HW30502002 LCD Program Box Pro
  • HW30850400 OTA Bluetooth Program Module







(HW38010209)

SKU HW38010209
Barcode # 6938994407809
