SAVOX W/PROOF DIGITAL MINI SERVO 8KG/0.10S@6V (TRX 1/16) PLUS

SAV-SW1250MG

SKU: SAV-SW1250MG

$116.46
RRP $129.40
SAVE $12.94 (10%)
Available



Fixed Rate By Invoice Total - $23.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies, or any other oversized, or over weight items - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Warehouse - $0.00
Pick up from: 3rd Party Warehouse in Smeaton Grange NSW 2567, between 9:30am - 4:30pm, Monday - Friday (exc. public holidays). This is strictly PICK-UP ONLY, in-store purchasing is NOT available. Confirmation email will be sent when goods are ready for pickup. Confirmation will include the pick-up address. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all inquiries please email sales@rchobbies.com.au

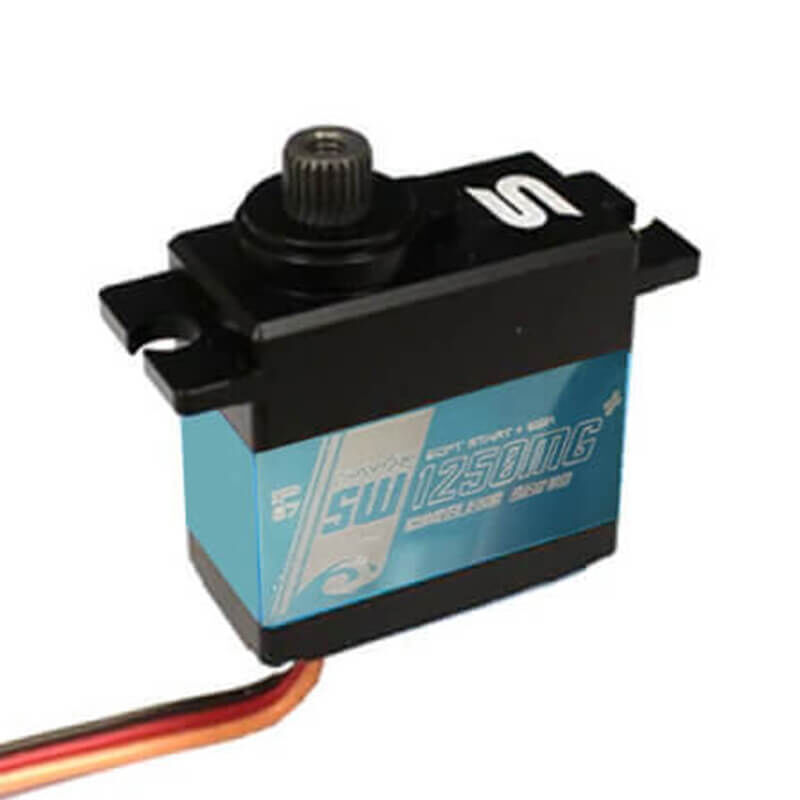

SAVOX W/PROOF DIGITAL MINI SERVO 8KG/0.10S@6V (TRX 1/16) PLUS



The SW1250MG+ is a premium waterproof, ultra torque, digital mini servo that is the ultimate replacement for Traxxas 1/16 scale applications.

FEATURES

  • Full aluminium waterproof case.
  • Strong metal gear train for increased durability.
  • Ultra torque and speed for mini applications
  • Designed for Traxxas 1/16 vehicles.

SPECIFICATIONS

  • Torque @ 6.0v - 5.0 kg-cm/69.4 oz-in
  • Torque @ 7.4v - 8.0 kg-cm/111.1 oz-in
  • Speed @ 6.0v - 0.12 sec/60 deg
  • Speed @ 7.4v - 0. 10sec/60 deg

TECHNICAL DETAILS

Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 80mA @4.8V, 100mA @6.0V
Stall Current (at locked): 1500mA @4.8V, 1900mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 1BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (800 → 2200 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless

Savox Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.

(SAV-SW1250MG)

SKU SAV-SW1250MG
Barcode # 4710006994543
Brand SAVOX
