EcoPower WP173-X24 Aluminum Digital Micro Servo Direct Fit For Axial™ SCX24 (HV)

SKU: ECP-173-X24

$90.59
RRP $100.65
SAVE $10.06 (10%)
Out of Stock: Available to Order



Fixed Rate By Invoice Total - $14.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

(Waterproof)

The Revolution of Powerful Mini Servos!

EcoPower is proud to introduce the WP173-X24 Aluminum Digital Micro High-Voltage Servo! The most innovative and powerful micro servo tailored specially for the Axial™ SCX24 platforms as the ultimate performance upgrade!

EcoPower WP173-X24 & WP827-X24 SCX24 Servos with Integrated Mount

About the WP173-X24 Servo



Design

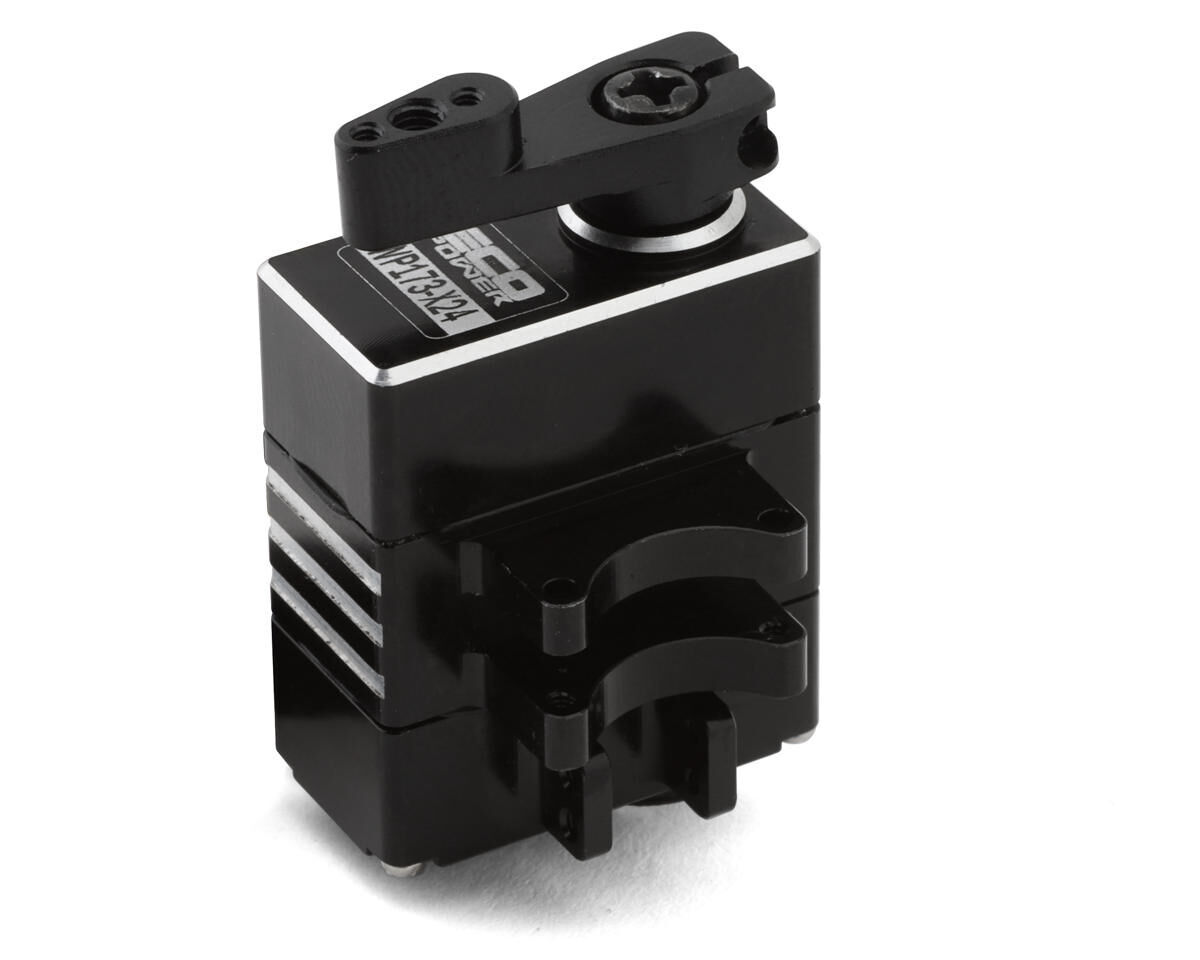

Unlike all other traditional servos on the market, the EcoPower WP173-X24 micro Servo features a first of its kind innovative built-in direct axle and links mount system that revolutionized the game by allowing the WP173 to be directly mounted to the SCX24 axles with no need for a servo mount! This brilliant mounting system provides a sturdy and rigid fit with extra clearance between the chassis rails!

Extreme Torque & Speed

Whether you are into hardcore Comp rock crawling, backyard crawling or just hitting the trails, a high-torque and speed steering servo will always be at the top of the upgrade list, especially for rigs with heavier tuning weights and wheels! This EcoPower WP173-X24 micro servo is capable of outputting 173oz.in (12.5Kg-cm) of torque and 0.07 sec/60 of speed at 8.4 Volts to turn even the heaviest micro rig wheels smoothly, precisely and with ease!

Robust Construction & Drivetrain

When it comes to durability and reliability, the EcoPower WP173-X24 micro servo is fitted with all metal heavy-duty gears, an all-aluminum finned case to maximize heat dissipation and an aluminum 25T servo horn to ensure maximum durability and flex-free operation under the harshest conditions! In addition, the EcoPower WP173-X24 is fully elements and waterproof! Allowing you to navigate through wet and dirt-filled trails with peace of mind!

Features:

  • The ultimate upgrade for Axial™ SCX24
  • Extreme torque and speed levels
  • Innovative direct axle mount
  • Eliminates the need for separate servo mount
  • All CNC-machined aluminum case
  • 1-year warranty!
  • High voltage capable of operating on up to 8.4 Volts!
  • HD all metal gears and output shaft spline
  • Waterproof design
  • Powerful coreless motor
  • Includes a CNC-machined aluminum horn with multiple mounting holes
  • Includes:

  • (1) WP173-X24 Aluminum Digital Micro Servo
  • (1) Aluminum Servo Horn

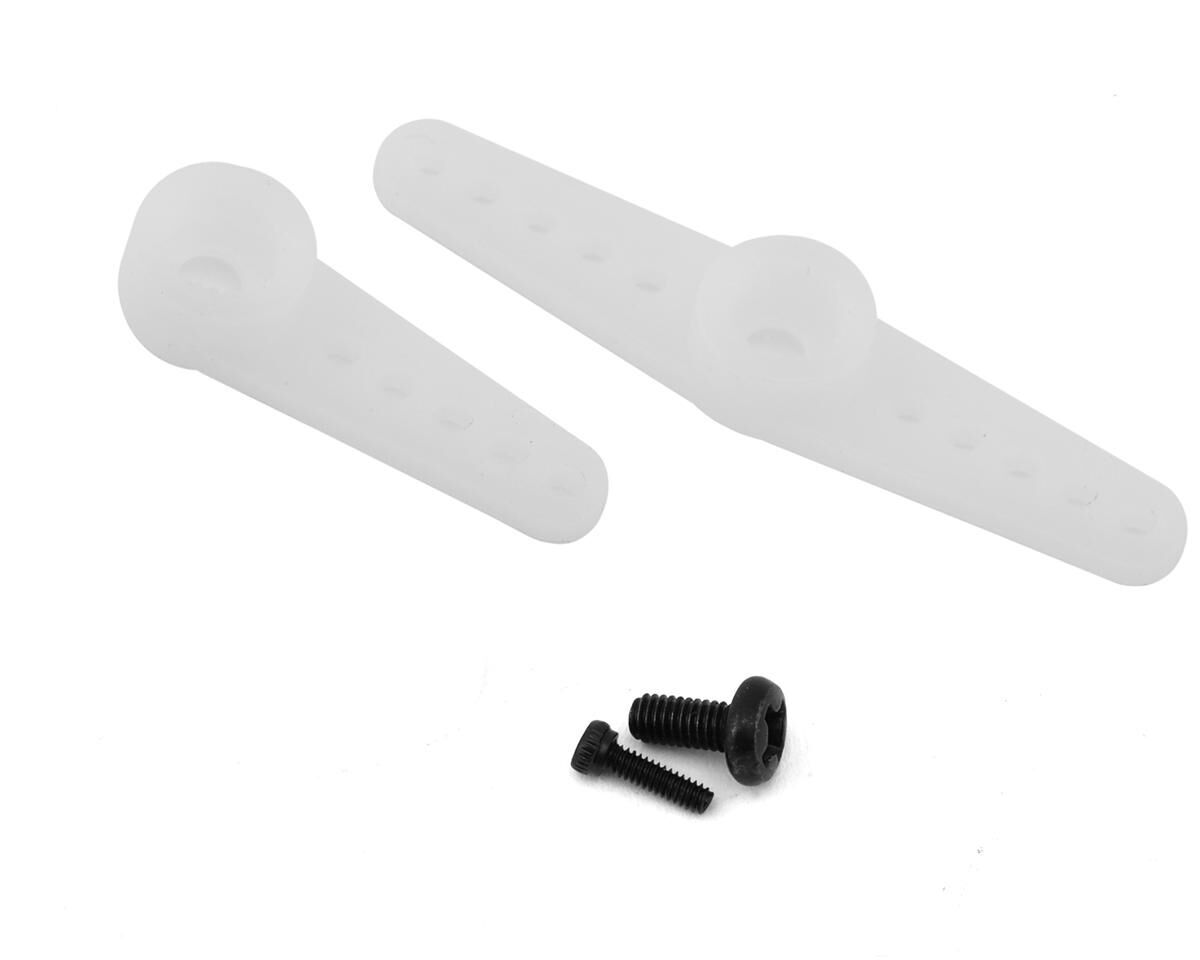

  • (2) Composite Servo Horns
  • Specifications:

    Application 1/24 & 1/18
    Input Voltage 6V-8.4V
    Speed
    @6.0V: 0.09 sec/60
    @8.4V: 0.07 sec/60
    Torque:
    @6.0V: 123oz.in (8.9Kg-cm)
    @8.4V: 173oz.in (12.5Kg-cm)
    Motor Digital Coreless
    Output Shaft Mini 25T
    Gear Material Metal
    Dimensions (LxWxH) 0.9x0.47x1.25in (23x12x31.75mm)
    Weight 16g

    *Tech Note: This servo is compatible with all SCX24 platforms and wheelbase EXCEPT the Deadbolt version!

    **Tech Note: Do not exceed 8.4 Volt as it might damage the servo

    ***Tech Note: Although this servo is waterproof, submerging it under water for longer periods may degrade and decay the seal points

(ECP-173-X24)

SKU ECP-173-X24
Barcode # 694485082196
