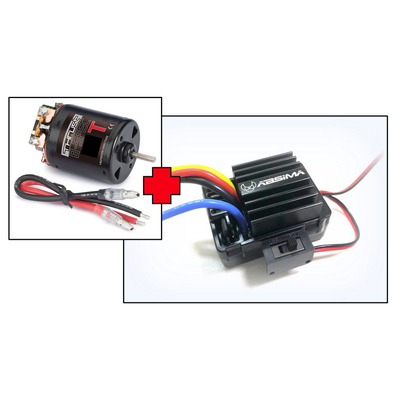

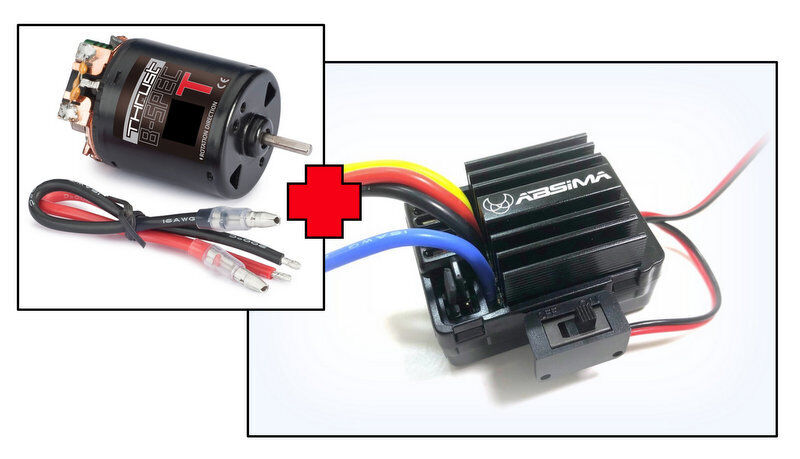

****Electric Motor "Thrust B-Spec" 35T + 1:10 Brushed ESC 40A

SKU: AB2100020

$101.61
RRP $112.90
SAVE $11.29 (10%)
Available



Fixed Rate By Invoice Total - $23.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies, or any other oversized, or over weight items - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Warehouse - $0.00
Pick up from: 3rd Party Warehouse in Smeaton Grange NSW 2567, between 9:30am - 4:30pm, Monday - Friday (exc. public holidays). This is strictly PICK-UP ONLY, in-store purchasing is NOT available. Confirmation email will be sent when goods are ready for pickup. Confirmation will include the pick-up address. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all inquiries please email sales@rchobbies.com.au
This set is specially designed for new beginners and intermediate modelers. It not only carries forward the outstanding quality of ABSIMA (powered by HOBBYWING) products but simplifies the operation.

FEATURES:
  • Water-proof and dust-proof for all weather races
  • Small size with built-in capacitor module
  • Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection
  • Easily programmed with “jumpers”


SPECIFICATION:

  • Application: On-road/Off-road
  • Cont. / Burst Current - forward: 40A / 180A
  • Cont. / Burst Current - reverse: 20A / 90A
  • Input: 2-3S LiPo / 5-9 Cells NiMH
  • Battery "Low-Power" Cut-off: NiMH 4.5V / 2S LiPo 6.5V / 3S LiPo 9.75V
  • Motor Limit 2S LiPo/5-6 Cells NiMH: 540 or 550 Motor =12T or RPM <30.000 @ 7.2V
  • Motor Limit 3S LiPo/7-9 Cells NiMH: 540 or 550 Motor =18T or RPM <20.000 @ 7.2V
  • Maximum Reverse Force: 50%
  • Overheat Protection: 100°
  • Resistance: Fwd: 0.002 Ohm, Bwd: 0.004 Ohm
  • Built-in BEC: 2A/6V (Linear Mode BEC)
  • Plug System: Tamiya
  • Plug & Drive System: yes
  • On/Off Switch: yes
  • Dimmension (L/W/H): 46.5*34.0*28*5 mm
  • Weight: 70g



  • Weight: 70g

SPECIFICATION MOTOR:

  • Turns: 35T
  • RPM: 10.900
  • Continuous Current: 7.5A
  • Operation V: 7.2
  • Motor size: 540
  • Shaft length: 8,6mm
  • Shaft Ø: 3,19mm
  • Motor length: 54mm
  • Motor Ø: 35,7mm



SCOPE OF DELIVERY:

  • WP1040 Brushed Crawler & Boat ESC
  • 35T Electric Motor
  • Manual

(AB2100020)

SKU AB2100020
Barcode # 4250650938796
Brand ABSIMA
