****Electric Motor "Thrust B-Spec" 45T + 1:10 Brushed ESC 40A

SKU: AB2100021

$101.61
RRP $112.90
SAVE $11.29 (10%)
In Stock



Fixed Rate By Invoice Total - $18.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.
This set is specially designed for new beginners and intermediate modelers. It not only carries forward the outstanding quality of ABSIMA (powered by HOBBYWING) products but simplifies the operation.

FEATURES:
  • Water-proof and dust-proof for all weather races
  • Small size with built-in capacitor module
  • Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection
  • Easily programmed with “jumpers”


SPECIFICATION:

  • Application: On-road/Off-road
  • Cont. / Burst Current - forward: 40A / 180A
  • Cont. / Burst Current - reverse: 20A / 90A
  • Input: 2-3S LiPo / 5-9 Cells NiMH
  • Battery "Low-Power" Cut-off: NiMH 4.5V / 2S LiPo 6.5V / 3S LiPo 9.75V
  • Motor Limit 2S LiPo/5-6 Cells NiMH: 540 or 550 Motor =12T or RPM <30.000 @ 7.2V
  • Motor Limit 3S LiPo/7-9 Cells NiMH: 540 or 550 Motor =18T or RPM <20.000 @ 7.2V
  • Maximum Reverse Force: 50%
  • Overheat Protection: 100°
  • Resistance: Fwd: 0.002 Ohm, Bwd: 0.004 Ohm
  • Built-in BEC: 2A/6V (Linear Mode BEC)
  • Plug System: Tamiya
  • Plug & Drive System: yes
  • On/Off Switch: yes
  • Dimmension (L/W/H): 46.5*34.0*28*5 mm
  • Weight: 70g



  • Weight: 70g

SPECIFICATION MOTOR:

  • Turns: 35T
  • RPM: 10.900
  • Continuous Current: 7.5A
  • Operation V: 7.2
  • Motor size: 540
  • Shaft length: 8,6mm
  • Shaft Ø: 3,19mm
  • Motor length: 54mm
  • Motor Ø: 35,7mm

SPECIFICATION MOTOR:

  • Turns: 35T
  • RPM: 10.900
  • Continuous Current: 7.5A
  • Operation V: 7.2
  • Motor size: 540
  • Shaft length: 8,6mm
  • Shaft Ø: 3,19mm
  • Motor length: 54mm
  • Motor Ø: 35,7mm

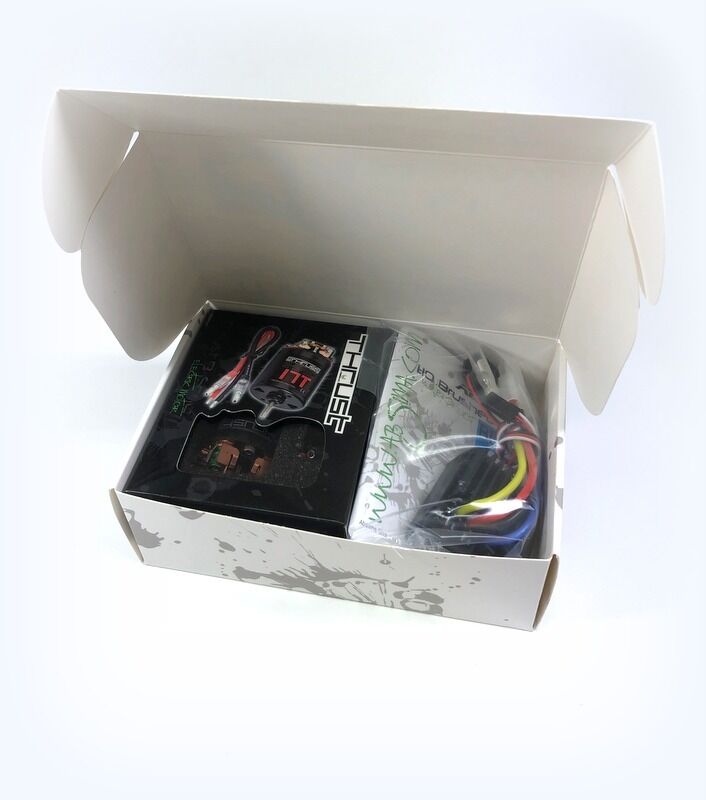

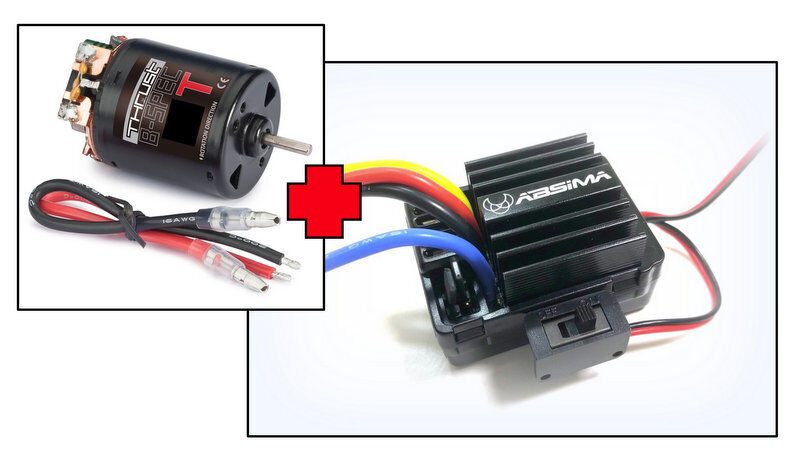

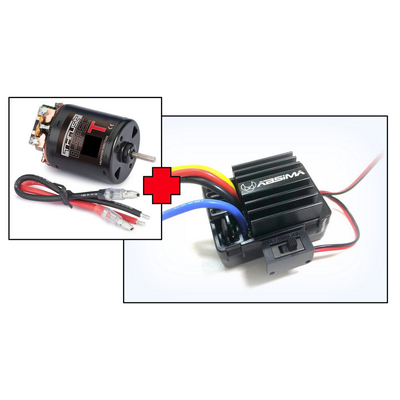

SCOPE OF DELIVERY:

  • WP1040 Brushed Crawler & Boat ESC
  • 35T Electric Motor
  • Manual



(AB2100021)

SKU AB2100021
Barcode # 4250650938802
Brand ABSIMA
