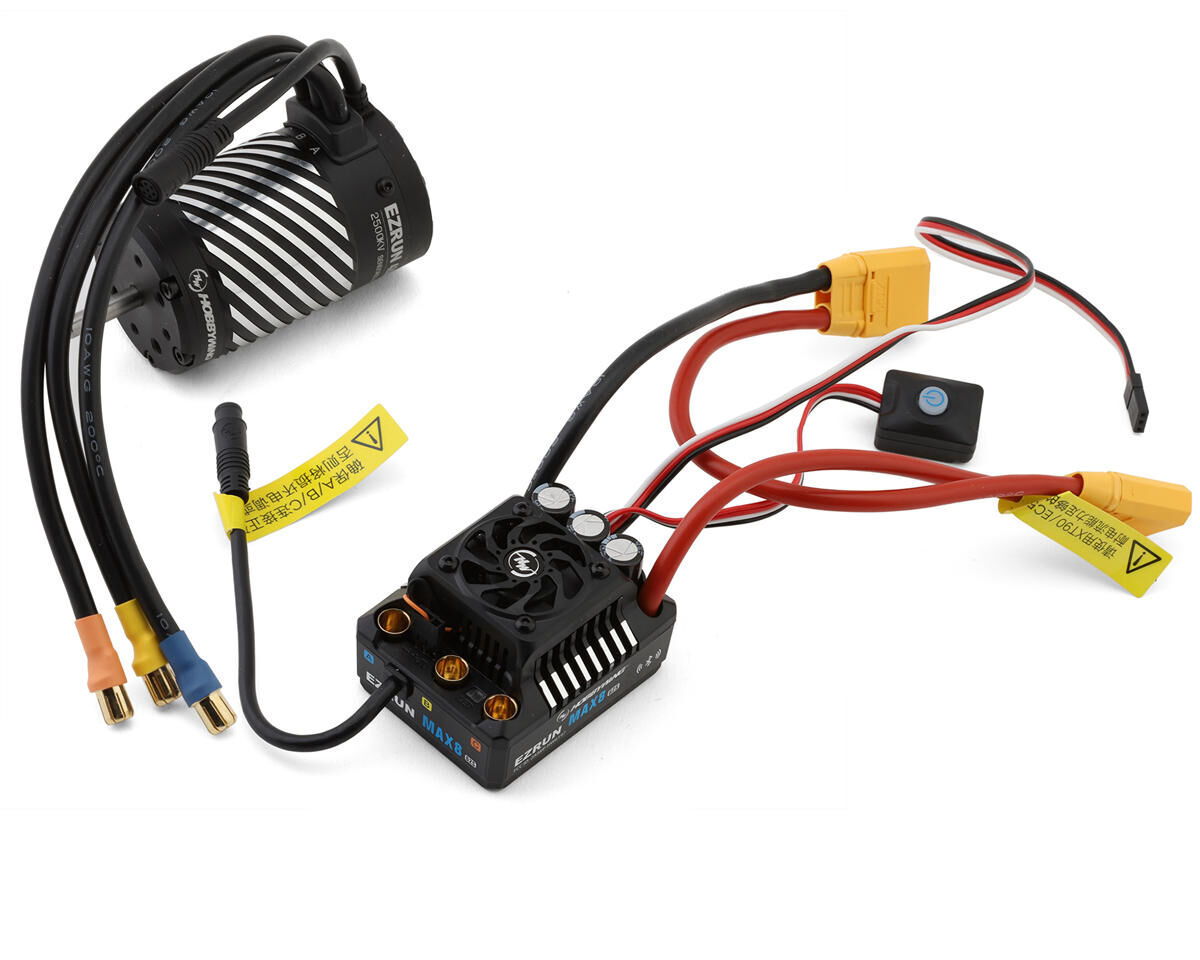

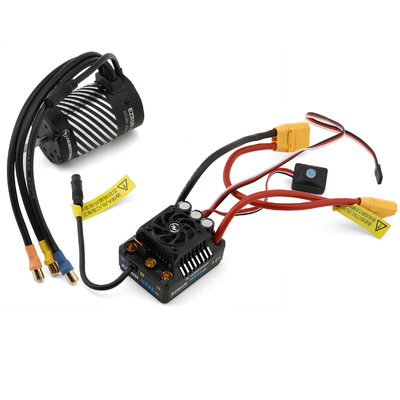

EZRun Max8 G2S Brushless ESC/4268SD G2R Motor Combo (2500kV)

SKU: HW38010606

$344.34
RRP $382.60
SAVE $38.26 (10%)
Available



Fixed Rate By Invoice Total - $25.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies, or any other oversized, or over weight items - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Warehouse - $0.00
Pick up from: Warehouse in Smeaton Grange NSW 2567 Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please email sales@rchobbies.comau. Thanks.

The Hobbywing EZRun Max8 G2S Brushless ESC and 4268SD G2R Brushless Motor Combo are engineered to deliver peak performance in 1/8 scale applications. This heavy hitting combo features the optimized G2R Brushless Motor, which offers maximum torque and increased power with lower internal resistance, ensures efficient and cooler operation. This combo is designed to maximize your potential with unmatched performance and reliability.

About the Combo



Technology

The OTA programmer allows for real-time data recording, enabling you to monitor throttle, voltage, current, temperature, motor RPM, and more. This data can be viewed in real time and recorded using HW Link for easy data analysis. The system includes multiple protections such as low-voltage cutoff, ESC and motor thermal protection, fail-safe (throttle signal loss protection), and reverse polarity protection. Firmware upgrades are possible via the Hobbywing multifunction LCD Pro program box or the OTA programmer (both sold separately).

Motor

The Hobbywing EZRun 4268SD G2R Sensored Brushless Motor has been designed to provide maximum speed and power. Using an advanced sensored system, this motor can deliver more aggressive launches, higher speeds and better efficiencies. With the waterproof sensor connection, you can enjoy all the benefits of a sensored system no matter the terrain.

ESC

The ESC features three built-in 680uF capacitors, enhancing performance by 74% (870uF) compared to the MAX8 ESC. These large capacitors eliminate the need for external capacitors on your vehicle. It also includes a patented frameless fan design, which rapidly transfers internal heat to the integrated housing radiator. High airflow from the fan's side and a copper thermal conduction sink on the internal power plate ensure efficient cooling. This design maintains the ESC's reliability and optimal thermal condition.

Features

  • Motor
  • Advanced sensored brushless technology ensures precise control and smooth power delivery
  • The fully closed case design effectively keeps dust and debris out, protecting the internal components
  • The waterproof sensored motor is built to withstand wet conditions, allowing for reliable operation in most environments
  • Designed for extreme speed and power, this motor is engineered to deliver exceptional acceleration and top-end speed
  • ESC
  • Enhanced waterproof and dust-proof design for various climates.
  • Built-in 6A/15A switch mode BEC, supports 6V/7.4V/8.4V servos.
  • Advanced electronic switches prevent dust, humidity, and impact issues.
  • 32-degree turbo timing increases RPM by 25% with compatible motors.
  • Real-time data logging and firmware updates via HW LINK app and Bluetooth.
  • Includes:

  • (1) EZRun Max8 G2S Brushless ESC
  • (1) EZRun 4268SD G2R Brushless Motor
  •

    Specifications:

    ESC
    Scale Size 1:8 Scale
    Type Brushless Sensored
    Input Voltage 3S-4S Lipo
    BEC Voltage 6-8.4V
    Motor Limit
    4S 3000kV
    6S 2400kV
    Programmable Yes
    Dimensions 60x48x40.5mm
    Weight 6.84oz (194g)
    Motor
    Scale Size 1:8 Scale
    Type Brushless Sensored
    Input Voltage 3-4S LiPo
    kV Rating 2500kV
    Diameter 1.65in (42mm)
    Length 3.07in (78mm)

(HW38010606)

SKU HW38010606
