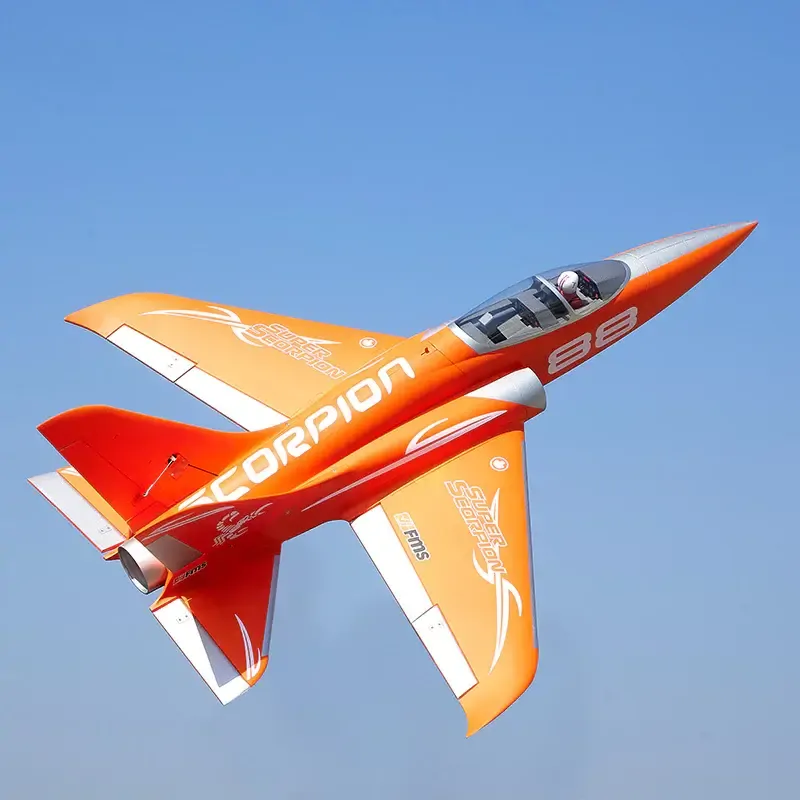

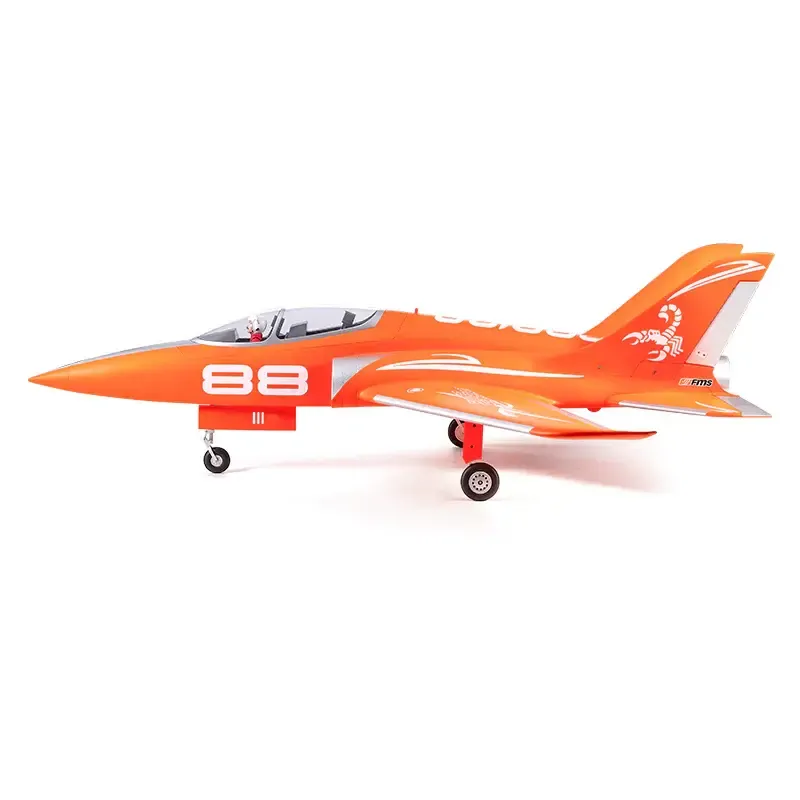

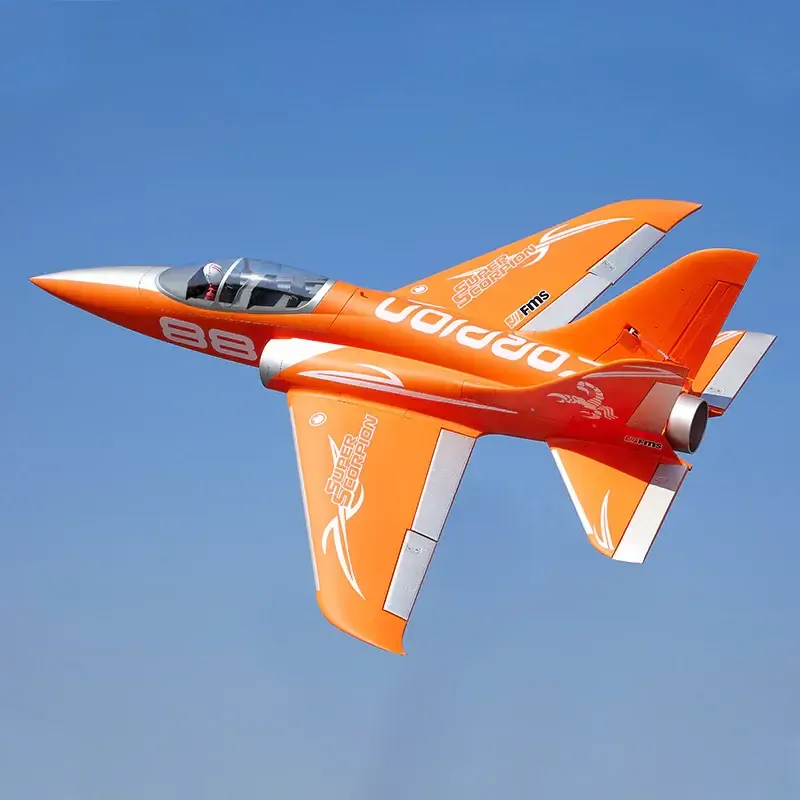

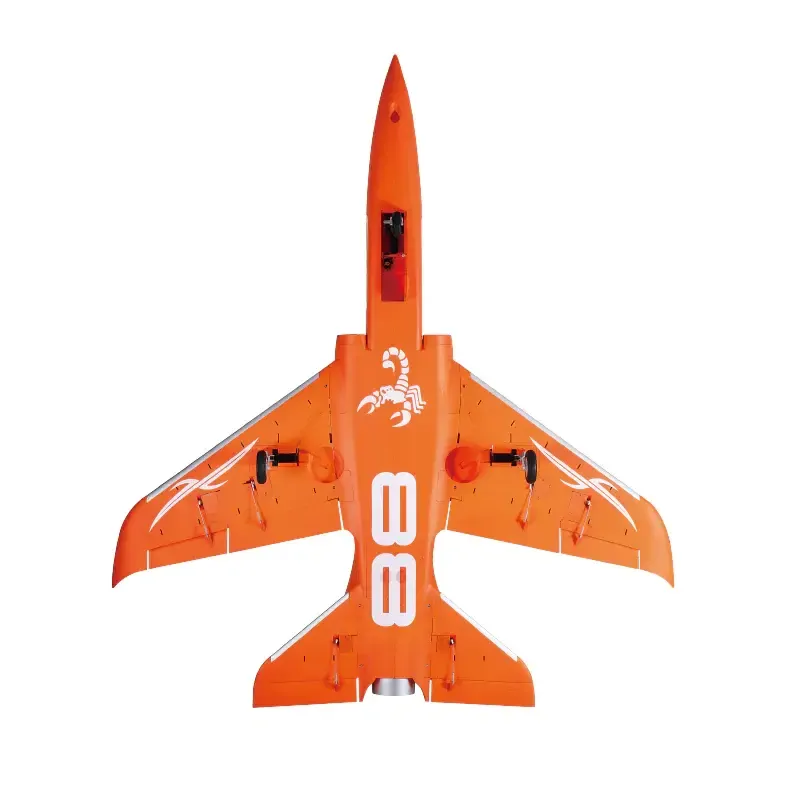

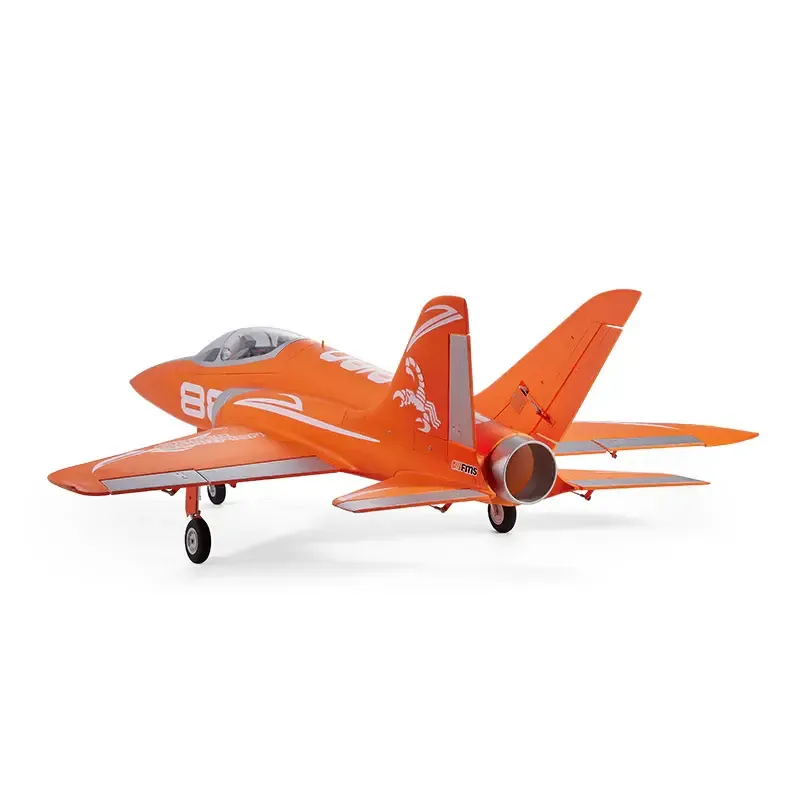

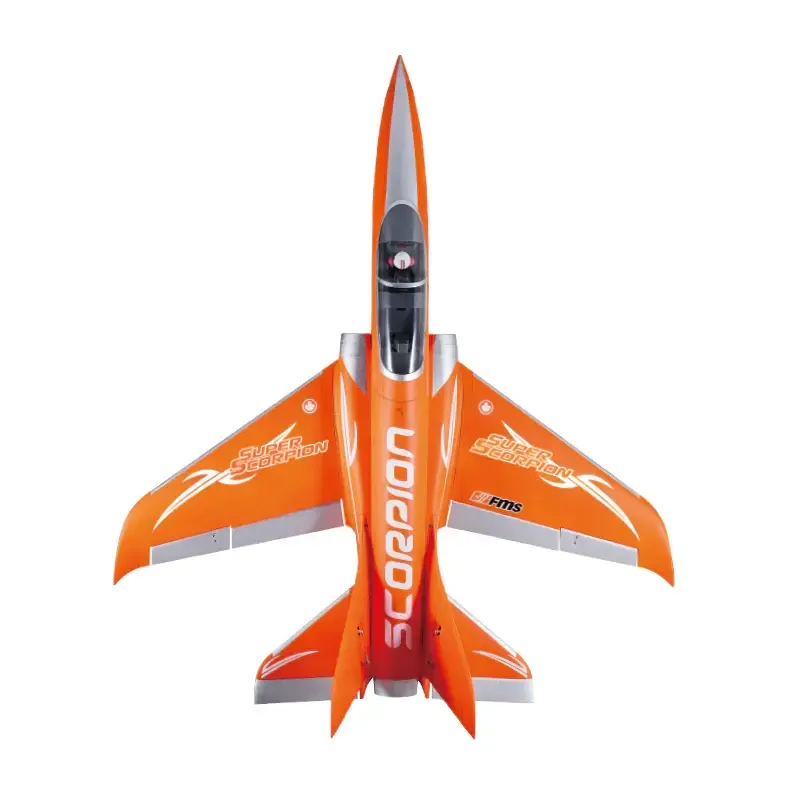

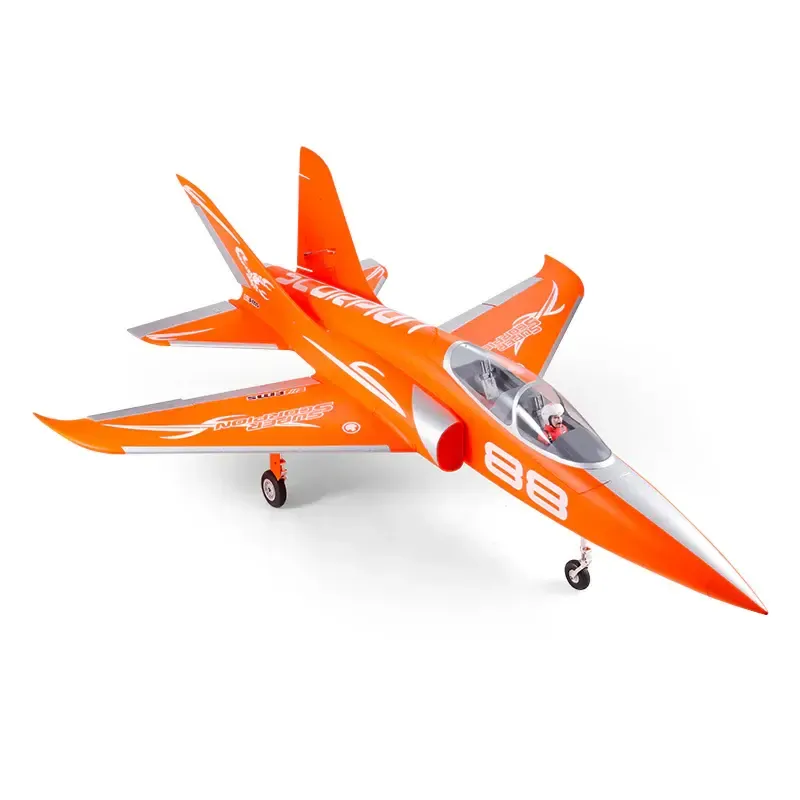

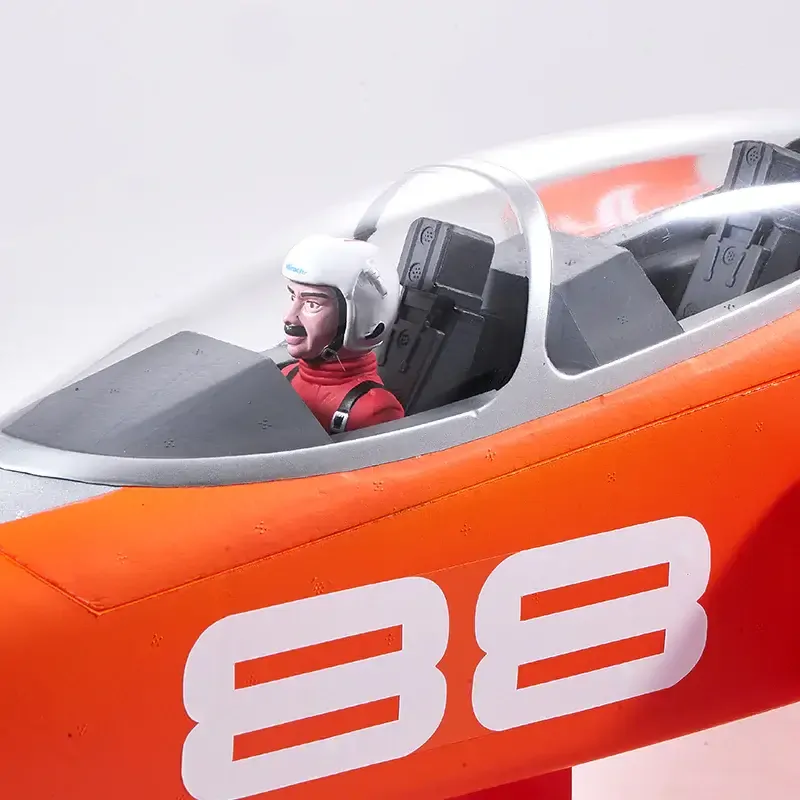

FMS EDF Jet 90mm Super Scorpion V2 PNP 8S VERSION
SKU: FMS145POR8S
Fly Fast, at the Cutting Edge of RC EDF Jet Aviation
The all-new FMS 90mm EDF Super Scorpion V2 is here. Designed to elevate your flight experience with its upgraded inrunner motor and unique 12-blade fan. You'll feel the power and hear the difference! Choose between striking orange or camouflage paint schemes, both optimized for increased visibility and realism in flight. Available in 6S and 8S versions, this advanced sport jet delivers on every front; speed, stability, and maneuverability. Ready to dominate the skies? The Super Scorpion V2 has arrived!
Features
1. New! Improved CNC machined trailing link struts, ensuring smooth suspension and effectively reducing the impact force to the airframe during takeoff, landing, and taxiing.
2. New! Available in both 6S (3670-KV1950 inrunner motor) and 8S (4075-KV1500 inrunner motor) versions.
3. New! Available in two different paint schemes; orange and camouflage!
4. Electric retracts with locked-rotor mode and over-current protection.
5. Multi-plug connectors for added durability, reliability, and ease of assembly.
6. Preinstalled ball link connector for increased throw and precision.
7. Screw-together assembly.
8. High-quality wear-resistant tires.
9. Buckle-design latch prevents unexpected canopy release in flight.
10. Flap functionality to help ease takeoff and landing.
11. Environmentally friendly water-based paint for better color and adhesion.
12. High quality EPO foam.
In The Box
(1) 90mm Super Scorpion V2 EDF PNP
(2) 120A ESC with Reverse Thrust Function (installed)
8S (4075-KV1500 inrunner motor) options (installed)
(4) 90mm 12-blade ducted fan (installed)
(5) 9 High-precision All-metal Digital Servos (installed)
(6) Product Manual
Needed to Complete
(1) 6 Channel Transmitter and Receiver
8S (29.6V 5000mAh-5500mAh 45c with EC5 connector)
(3) LiPo Battery Charger
Notes to Buyers

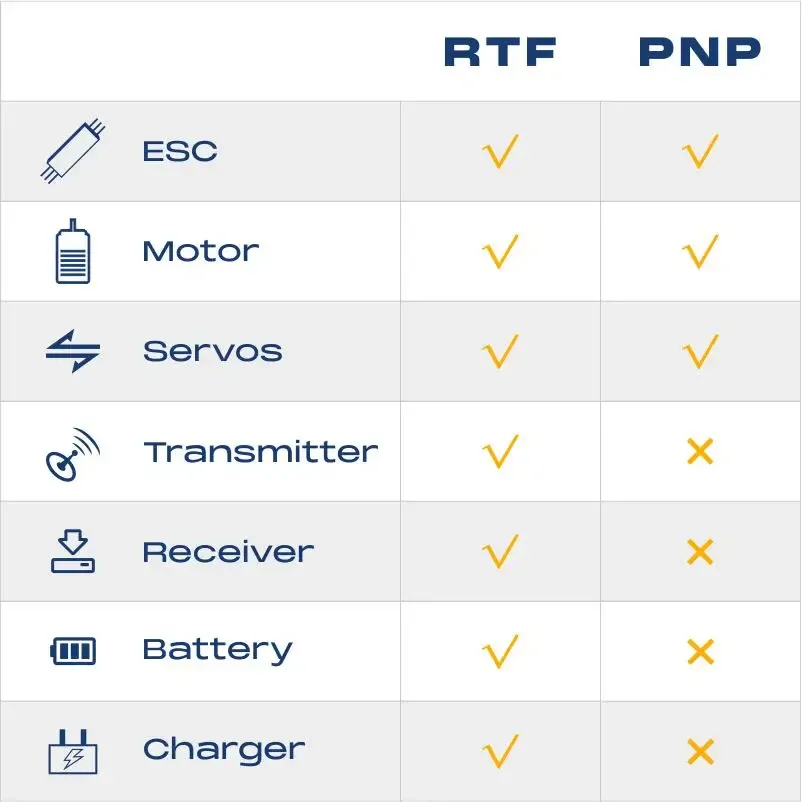

① RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
② PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.
③ EPO foam and cockpits can bubble or deform in high heat. To prevent this, avoid leaving them in direct sunlight when not in use.
④ Reflex V3 is not included and needs to be purchased separately.
⑤ 6-channel receiver is needed for Ailerons, Elevator, Throttle, Rudder, Landing Gear, and Flaps. Upgrade to 7 or more channels for advanced features like Thrust Reverse and Reflex Control.
Specification
| Model | 6S | 8S |
| Wingspan | 1140mm /44.9 in | 1140mm /44.9 in |
| Overall Length | 1320mm /52in | 1320mm /52in |
| Flying Weight | Around 3500g | Around 3950g |
| Motor Size | 3670-KV1950 | 4075-KV1500 |
| ESC | 120A | 120A |
| Servo | 13gX5pcs | 13gX5pcs |
| Servo | 23gX4pcs | 23gX4pcs |
| Radio | 6CH Channel | 6CH Channel |
| CG (center of gravity) | 150-160mm | 150-160mm |
| Prop Size | 90mm 12-blade ducted fan | 90mm 12-blade ducted fan |
| Recommended Battery | 22.2V 5000mAh-6000mAh 45c with EC5 connector | 29.6V 5000mAh-5500mAh 45c with EC5 connector |
| Aileron | Yes | Yes |
| Rudder | Yes | Yes |
| Flaps | Yes | Yes |
| Retracts | Yes | Yes |
| Approx. Flying Duration | 3 minutes | 3 minutes |
| Minimum Age Recommendation | 14+ | 14+ |
| Experience Level | Intermediate | Intermediate |
| Assembly Time | 10 minutes | 10 minutes |
| Wing Load | 119 g/dm² (0.23oz/in²) | 134.3 g/dm² (0.26oz/in²) |
| Wing Area | 29.4dm² (455.5 sq.in) | 29.4dm² (455.5 sq.in) |
View Less
Features
Retractable Shock-Absorbing Trailing Link Landing Gear
Upgraded CNC-machined shock-absorbing landing gear reduces landing impact. The front gear assembly includes a nose gear door, while the main gear features gear covers, and both support gear retraction and extension.
Excellent Power
The 90mm Super Scorpion V2 boasts a new 12-blade 90mm EDF unit and a powerful inrunner motor, available in 6S (3670-KV1950) or 8S (4075-KV1500) versions, delivering premium EDF jet performance.
High Speed
The 90mm Super Scorpion V2 is one of FMS's fastest sport jets, reaching a straight-line speed of 150 mph (8S PNP). (Speed tests are subject to actual conditions.)
Bright Paint Design
The aircraft is equipped with high-strength 34.5x EPO foam and painted in bright orange or camouflage to provide excellent visibility in the sky.
ESC with Thrust Reverse
The 90mm Super Scorpion V2 includes a 120A thrust-reversing ESC. This reverse function can significantly reduce rollout and can even reverse the aircraft for precise maneuvering on shorter runways.
Precision Control
The 90mm Super Scorpion V2, equipped with 9 all-metal digital servos, delivers exceptional precision and control. Its pre-installed ball linkages guarantee precise handling for advanced maneuverability.
Robust Large Tires
The durable tires are ideal for smooth takeoffs and landings on a variety of terrains, including sand, grass, and concrete.
Quick, Glue-free Assembly
Glue-free assembly throughout the aircraft. Includes quick-release connectors for the main wing panels that allows for rapid assembly and disassembly, making on-site setup effortless.
Stable Flight Technology
The Reflex V3 flight control system (sold separately) offers enhanced stability, ensuring smoother and safer flights.
Spacious Battery Compartment
Easily accommodates batteries of various sizes from different manufacturers, comfortably fitting both 6S and 8S batteries.
(FMS145POR8S)
| SKU | FMS145POR8S |
