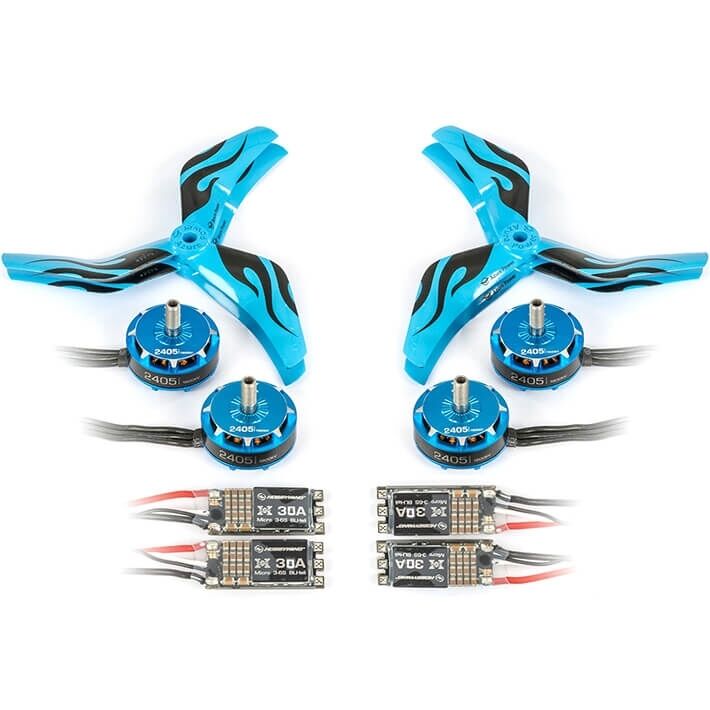

###FPV Power System M2405 2600kv prop

HW38040023

SKU: HW38040023

$198.18
RRP $220.20
SAVE $22.02 (10%)
In Stock at Warehouse



Fixed Rate By Invoice Total - $18.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

The Hobbywing XRotor 2405 series of FPV Racing Motors feature a handful of great design features that are packed together that offer nothing but incredible performance, and excellent reliability.

Featuring high strength CNC machined aluminum allow frame that incorporates a cross beam structure, & high previsision hollow alloy steel shaft, crash resistance and overall motor durability is a critical design choice. Offering an extra wide but short stator (24mm wide, 5mm height), the disc type structure provides a lower center of gravity compared to other motors, which translates to improved response while in flight. A single piece eight bladed centrifugal fan cools the motor during operation.

Hobbywing FPV Power System Features:

  • Small size combined with light weight for easy installation
  • 24mm Stator Width; 5mm Stator Height - Low CG design
  • Integrated locking teeth to secure prop even under prop strikes
  • Integrated cooling fan design
  • Aluminum Allow motor design - Incredible durability
  • N54 High Strength Magnets
  • 0.2mm Stator Laminations
  • 4mm Thick Bearings
  • 35.5g AUW

ESC Spec Check:

  • LiPo Power Input: 2-4S
  • Cont. Current: 30A
  • Burst Current: 40A
  • BEC Output: N/A
  • Firmware: BLHeli-S A-H-5016.5
  • Oneshot 125/42: Supported
  • Multishot: Supported
  • DShot150/300/600: Supported
  • Size/Weight: 23.8x14.5x5.8mm / 6g

Motor Spec Check:

  • KV: 2600kV
  • Voltage Input: 3-4s LiPo
  • No-Load Current (A/10V): 1.4A
  • Motor Resistance: 0.039 Ohms
  • Continuous Current: 25A - 420W
  • Slot/Plot Count: 12/14
  • Motor/Shaft Diameter: 30.8mm - 5mm
  • Weight: 35.5g

(HW38040023)

SKU HW38040023
Brand HOBBYWING
