QR16BL30 G2 & 2435SL 4500KV G3 COMBO

SKU: HW38030002

$98.99
RRP $109.99
SAVE $11.00 (10%)
Available



Fixed Rate By Invoice Total - $14.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies, or any other oversized, or over weight items - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Warehouse - $0.00
Pick up from: Warehouse in Smeaton Grange NSW 2567 Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please email sales@rchobbies.comau. Thanks.

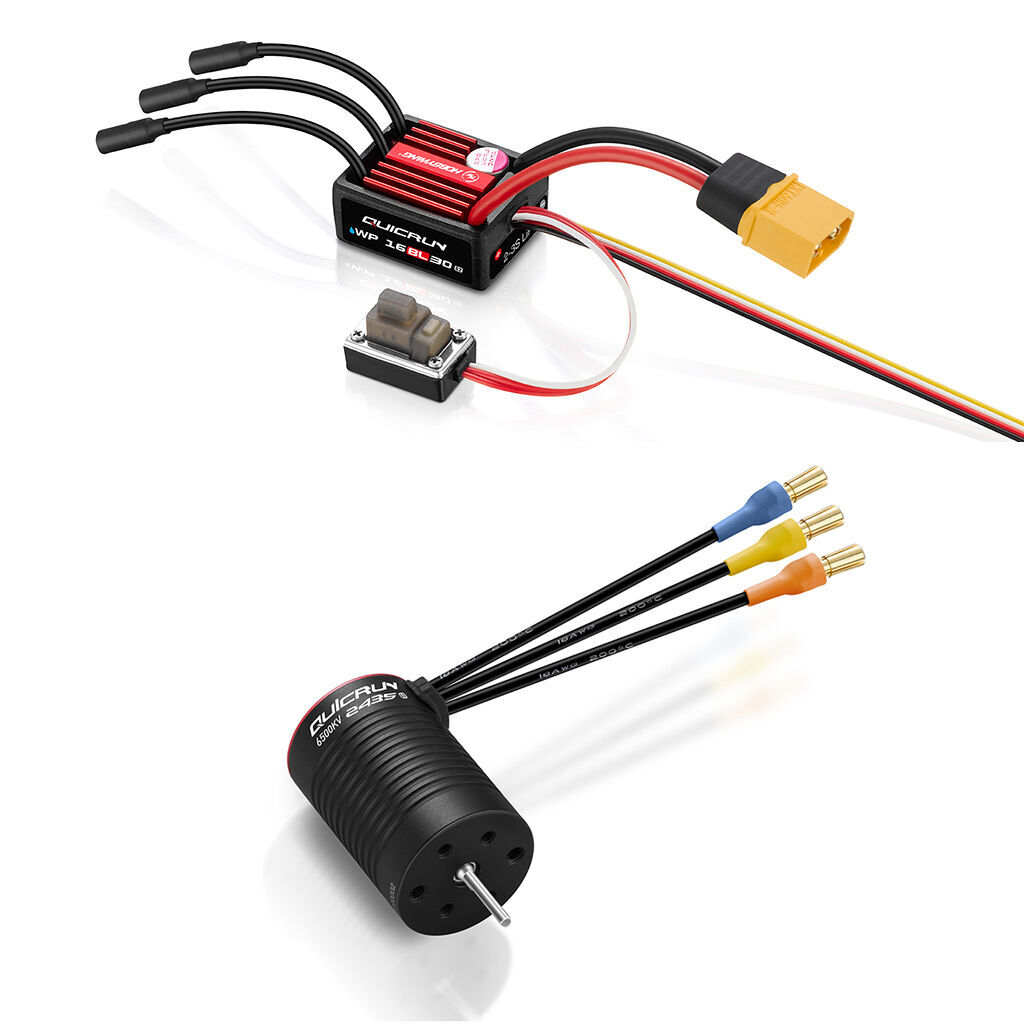

Introducing the Hobbywing QuicRun 16BL30 G2 Waterproof brushless speed control and 2435SL Motor Combo.

Intelligent Freewheeling for Lower Heat and Enhanced Performance
The ESC features intelligent freewheeling technology, delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.

Compact Size for Easier Installation and Flexible Layout
Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller: 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact and makes installation easier and allows for cleaner wiring on the chassis.

BEC Upgrade Compared to the G1 ESC
The BEC’s continuous current has been upgraded from 1A to 2A.
A peak current of up to 4A
The output voltage can be switched between 6V and 7.4V.

Easily powering high-torque and high-voltage servos. This provides faster response and more precise control.

High Protection Rating
IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.

Note: The IP67 protection rating described above applies under normal usage conditions, providing splash resistance, water resistance, and dust resistance, as tested under controlled laboratory conditions. These protective features are not permanent, and protection performance may degrade over time due to regular wear and aging. Do not submerge the product in water for extended periods, as this may cause damage.

Multiple Programming Methods
Supports three programming methods: LCD Program Box Pro, LED Program Box, and SET button, allowing users to conveniently select their preferred programming method for parameter adjustments.

Exceptional Value for Money
Specifically designed for entry-level users, with HOBBYWING’s exceptional quality. Easy to operate and beginner-friendly, with no complex setup required.

Perfect Match for QuicRun 2030 G2/2435 G3 Motors
The ESC offers excellent compatibility when paired with QuicRun 2030 G2/2435 G3 motors, delivering smoother control.

Wide Compatibility
The power system is suitable for both 1/16th & 1/18th scale hobby vehicles.

Specifications

Type
Scale - 1/16th, 1/18th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Waterproof - Yes

Specifications
Cont./Peak Current - 30A/100A
Input Voltage - 2-3S LiPo
BEC Output - 6V/7.4V@2A

Cables and Plugs
Power Cord - Black-16AWG-75mm*1,Red-16AWG-75mm*1
Output Line - Black-16AWG-60mm*3
Power Plug - XT60
Output Plug - 3.5MM gold female plug

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
OTA Programmer - Not Supported
Program Port - Shared with Throttle Wire

Data Recording
Extreme value records - Not Supported
Real-time Data - Not Supported
Historical Data (line graph) - Not Supported

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 33.4*26.8*15.1mm
Weight - 38.5g( Included wires & connectors)

Applications
Supported motor types - Sensorless brushless motor, sensored brushless motor (only works in sensorless mode)
Applicable models - 1/16th、1/18th On-Road & Off-Road
Applicable motor - QUICRUN 2435 G2

--------

Motor

Better performance
Compared with the same specification of products under the same load conditions, the maximum output power is 60% higher, the maximum efficiency is 5% higher, and the temperature is reduced by approximately 30 degrees.

Upgraded materials
durable 0.2mm thick silicon steel, high-strength explosion-proof rotor, 200°C high-temperature-resistant enameled wire, and first-line brand high-precision and high-quality bearings make the motor durable.

Excellent protection
The output of the motor is sealed with a silicone rubber on the housing. It is dust-proof for off-road vehicles/trucks. Users will now enjoy bashing without having to worry in harsh operating environments such as outdoor sand, stones, and dust.
Note: It is recommended to block the unused mounting holes of the motor front cover with screws.

Plug and play, flexible play
The motor output line has been welded with high-quality gold-plated plugs. Plug and play without worrying about soldering.

One "machine" with multiple functions, compatible with a wide range of models
The product is applicable to 1:16 and 1:18 vehicles, from on-road to buggy, short course truck, and monster truck.

Specification

Scale - 1/16th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Pole Count - 4
KV Rating - 4500KV
LiPo - 2-3s
No-load Current(A) - 2.1A
O.D. (mm) - 24
Length (mm) - 36
Shaft Diameter (mm) - 2
Weight (g) - 61.2
Connectors - 3.5mm (Male)
Front Bearing - D8*D3*T4
Rear Bearing - D8*D3*T4
Applications - 1/16th, 1/18th On Road, Off Road
