RDM-C0157-0014 | RadioMaster Zorro Radio Controller - CC2500 Switchable Version (INCLUDES BATTERIES)

RDM-C0157-0014

SKU: RDM-C0157-0014

$218.99
RRP $220.99
SAVE $2.00 (1%)
Out of Stock: Available to Order



Fixed Rate By Invoice Total - $15.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

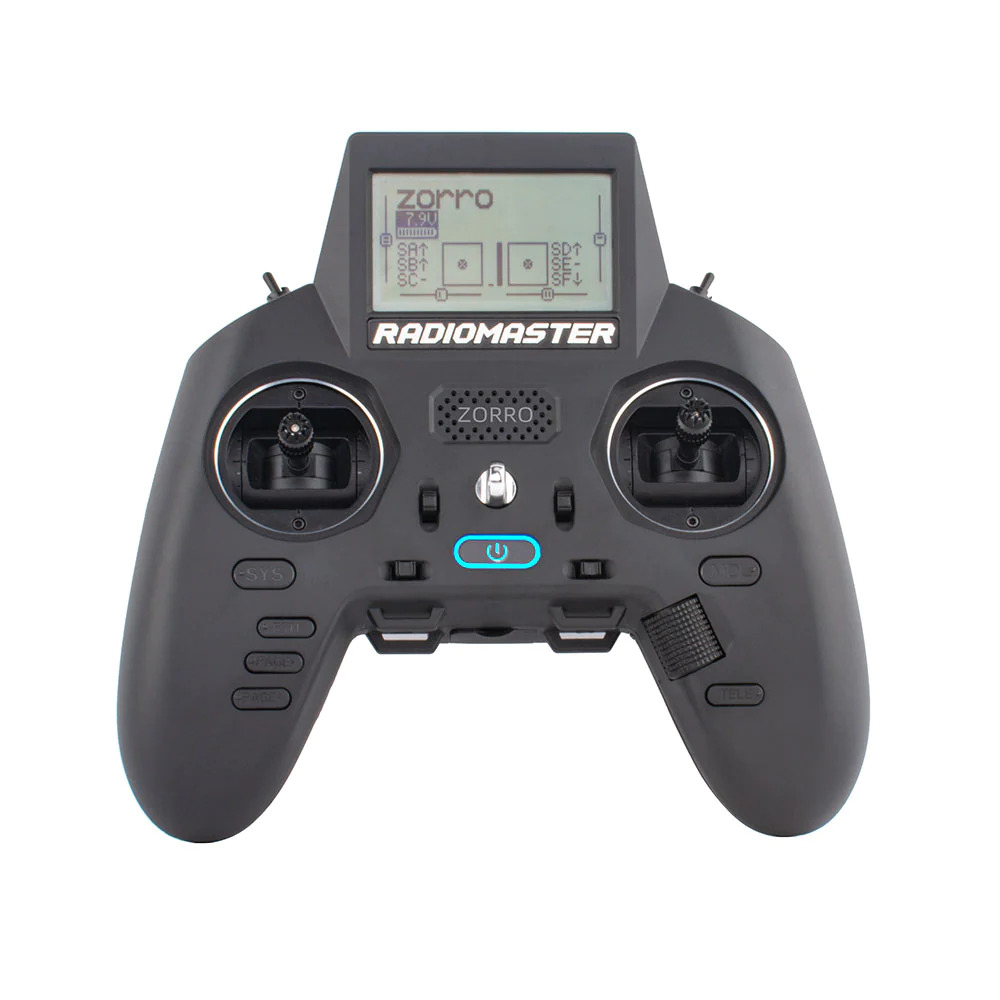

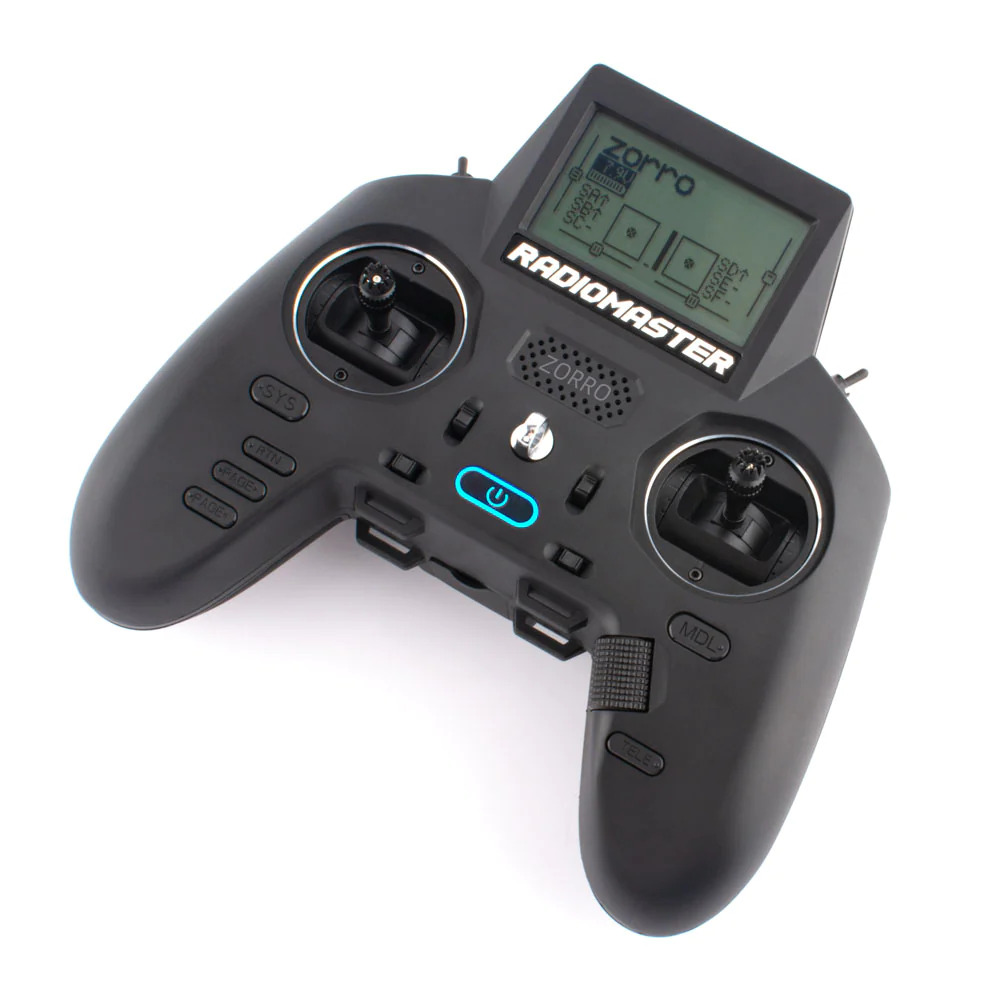

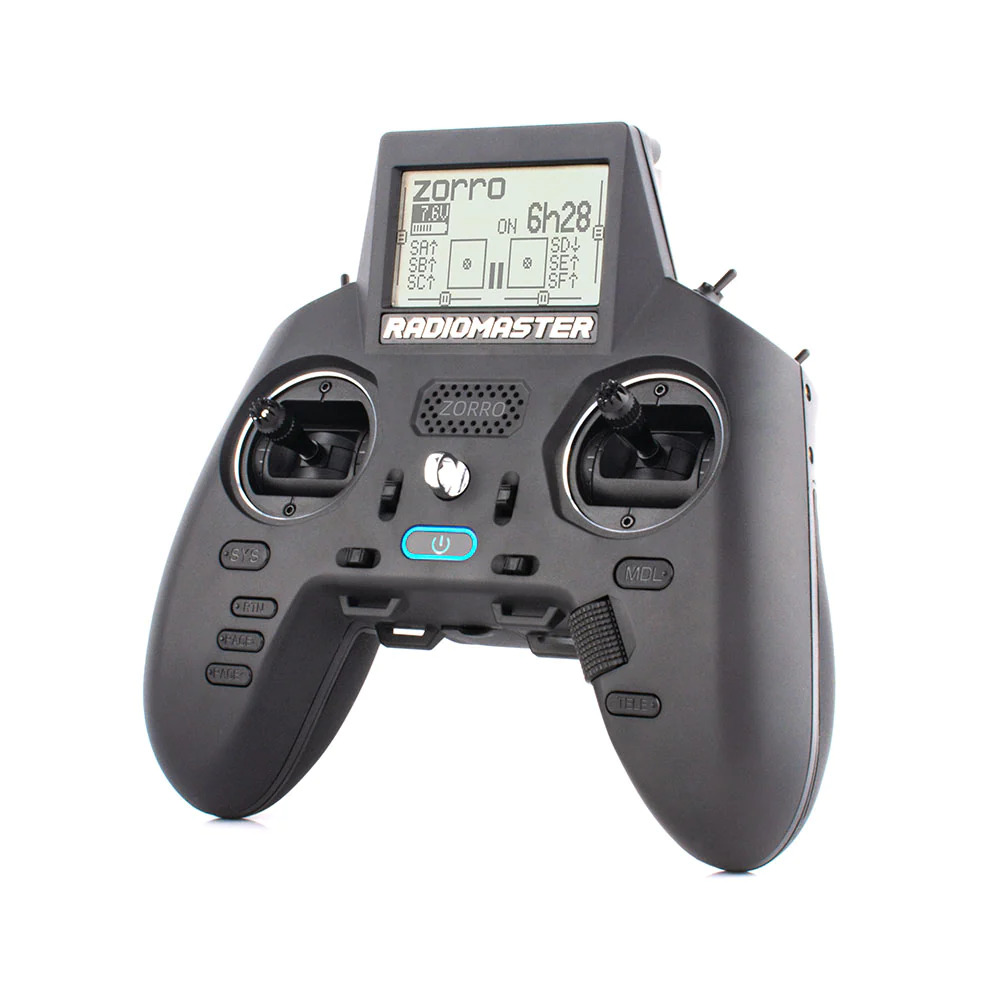

RadioMaster Zorro Raio - The Compact Class-Leader.

Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

Zorro radio controller

Specification

Versions

CC2500

4in1

ELRS

ELRS Starter Set

CC2500 + TBS Nano Crossfire Combo




Physical Dimensions

170*159*108mm



Weight

350 grams



Operating Frequency

2.400GHz-2.480GHz



Internal RF Options

CC2500 multi-protocol

4-in-1 multi-protocol

ELRS

CC2500 multi-protocol



Supported Protocols

Module dependent

Module dependent

ELRS

Module dependent



RF Power

CC2500: 20dBm max.

4-in-1: 20dBm max.

Up to 250mw ( CE & FCC Versions will be available)

CC2500: 20dBm max.



Antenna Gain

Folding 2db



Operational Current

160mA@8.4V



Operational Voltage

6.6-8.4v DC



Control Distance

> 2km @ 20dbm

> 2km @ 20dbm

Receiver and Power Output dependant

> 2km @ 20dbm



Operating system

OpenTX / EdgeTX Compatible



Control channels

Maximum 16 (Rx dependent)



Display

128*64 Monochrome LCD



Battery

2 x 18350 (Not included)



Charging

Built in USB-C Charging



Gimbal

Hall-effect



Module Bay

Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)



Firmware Upgrade Method

Via USB or SD card



Click to check the RadioMaster Radio Comparison Chart.

FCC Version and EU LBT Version are Available

Currently, we provide the standard FCC version and the EU LBT version. Please check the supported protocols below.

Standard FCC Version

  • CC2500 (FCC) Version supports all CC2500 protocols
  • 4in1 (FCC) Version supports all MPM protocols
  • ELRS (FCC) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependant)

EU LBT Version

  • CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
  • 4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
  • ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Support OPENTX & EDGETX

radiomaster zorro radio OPENTX EDGETX

Support 4 RF Configurations

radiomaster zorro radio controller

Switchable in Mode 1 and Mode 2

Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.

RadioMaster Zorro Radio

Adjustable Hall Gimbals

radiomaster hall gimbals

External Module Bay

Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.

RadioMaster Zorro Radio

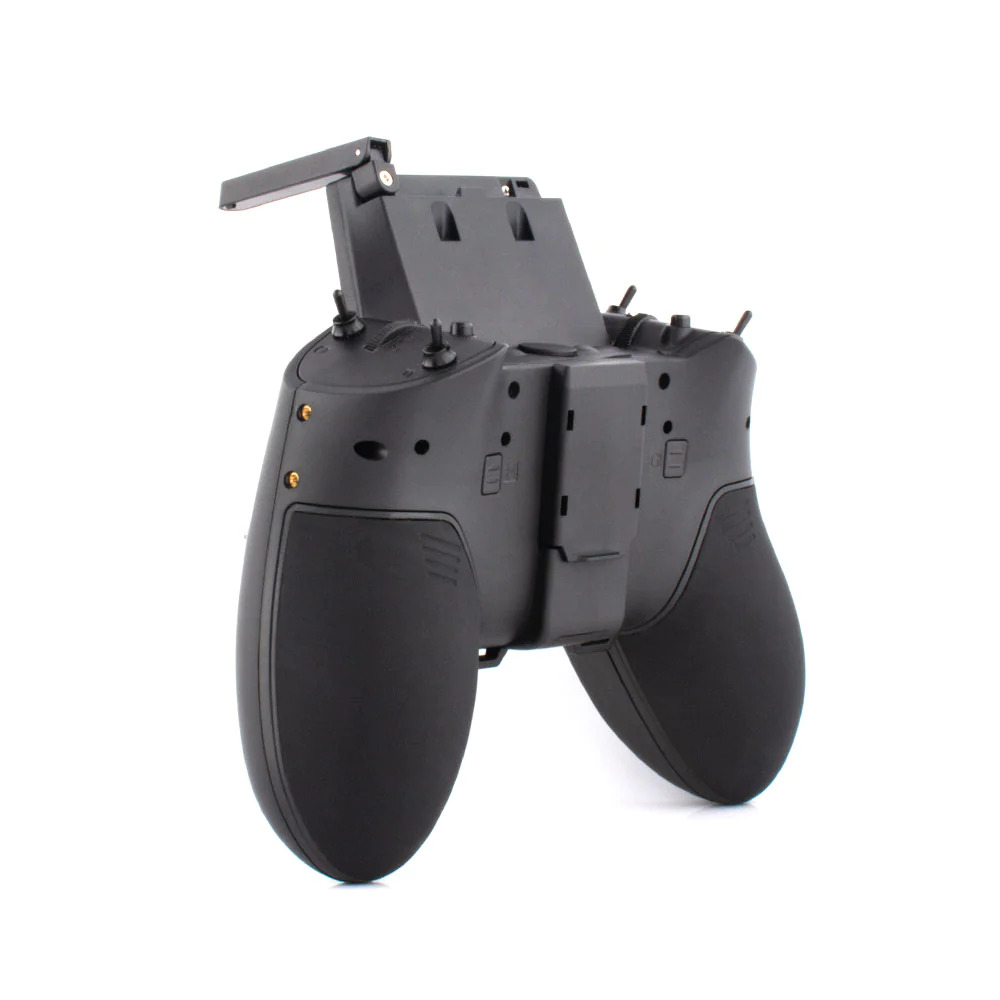

18350 Battery Compartments

Battery Charging

  • Supports USB-C Directing Charging

  • Supports External 2S Battery Power Supply

Oversized LCD & Foldable Antenna
RadioMaster Zorro Radio oversized LCD

 DIY Attachment Points

RadioMaster Zorro Radio DIY Attachment Points

Ergonomically Designed


User Manuals & Firmware

Package Includes

Please note, when you choose a different version, it is packaged with different parts.

The chart below doesn't mean you will receive all versions.

Version Package Includes
CC2500
  • 1 * Zorro Radio Controller CC2500 Version

(RDM-C0157-0014)

SKU RDM-C0157-0014
Shipping Weight 1.0000kg
