RPM Sensor

HW86060041

SKU: HW86060041

$8.28
RRP $9.20
SAVE $0.92 (10%)
In Stock at Warehouse



Fixed Rate By Invoice Total - $14.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

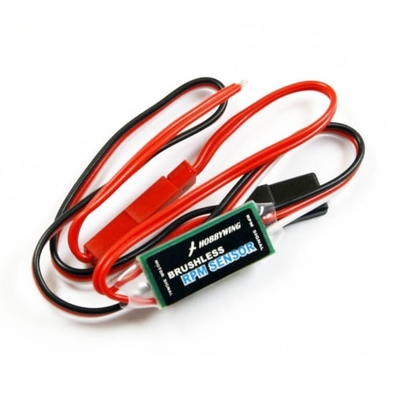

HOBBYWING RPM SENSOR
This Hobbywing RPM Sensor detects the voltage changes at the wires of brushless motor, and then outputs the RPM signal. This RPM sensor can work with some speed control systems for helicopters. And one of its typical applications is to work as the RPM sensor for V-Bar system made by Mikado.

It is included as standard equipment with the Platinum-120A-HV, Platinum-70A-HV, FlyFun-100A-HV and FlyFun-80A-HV ESC's. The Hobbywing RPM sensor is compatible with any firmware of the above ESC's, that means if you use Hobbywing RPM sensor, the above ESC's are always compatible with V-Bar governor function.

Spec Check:
Size: 23mm(L)*10mm(w)*2mm(H)
Weight: 6g (Input and output wires are included)
Working voltage: 3.5V to 8.4V(1S to 2S Lipo)
Current: 1 to 5mA
Voltage range of the motor wires: 2 to 14S Lipo
RPM range (for 2 poles brushless motor): 1000rpm to 300000rpm
Working temperature: 0 to 50 Celsius degree or 32 to 122 Fahrenheit degree

(HW86060041)

SKU HW86060041
Barcode # 6938994400244
Brand HOBBYWING
