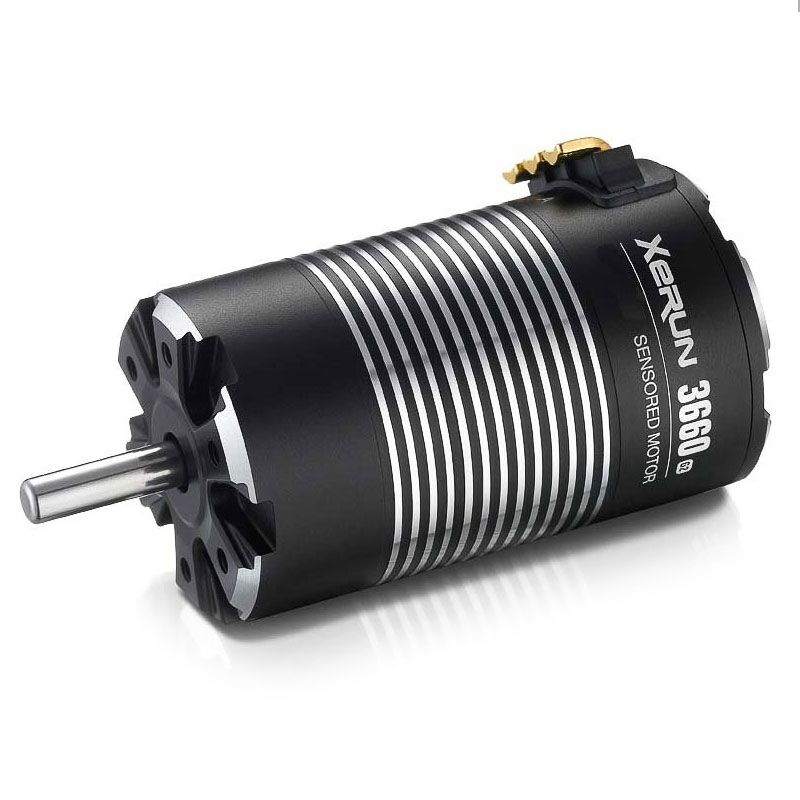

Xerun 3660SD sensored G2 motor 4300KV

HW30401152

SKU: HW30401152

$160.29
RRP $178.10
SAVE $17.81 (10%)
In Stock at Warehouse



Fixed Rate By Invoice Total - $15.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

The first 4-pole motor with a built-in chip which helps ESC identify it's a HOBBYWING motor (only when pairing it with the XeRun XR8 series of ESCs) and the XR8 ESC create a power system which is able to work in the "sensored" mode (at all times) and provide users with the better performance and smoother control. Note: this motor is compatible with other ESCs but unable to work in the "sensored" mode at all times.

The Turbo Timing which is widely used (by 2-pole motors) in 1/10 scale on-road racing can be enabled to unleash the utmost power of the motor when pairing the XeRun 3652/3660 G2 with the XeRun XR8 series of ESCs.

The HOBBYWING-patented "error-free" Hall sensing system adopted by the motor guarantees users the steady operation in the “sensored” mode. A separate high-speed high precision encoder always outputs the clean signals (indicate the position of the rotor) and protects the Hall sensing system from other signal interference.

The HOBBYWING-patented 4-pole-8-magnet "staggered pole" rotor with the extremely low cogging effect and torque pulsation greatly improves the driving feel around corners.

The use of double insulated windings (200? R-leveled), Japanese NMB bearings, super thin silicon steel sheets and the high-intensity adhesive (300?) guarantees users the outstanding performance and great durability. (With the strength of the motor is guaranteed,) the wheel hub design adopted by front & rear end bells effectively reduces the motor weight.

HobbyWing XeRun 3660 SD G2 Features:

  • Full-sensored Mode
  • Turbo Timing Technology
  • Bi-directional Adjustable Timing
  • Advanced Hall Sensing System
  • Low Cogging Torque
  • Quality Materials & Excellent Design
  • Turbine Design
  • Compatible with the XeRun XR8 SCT ESC

Spec Check:

  • Scale: 1/10th
  • Brushed/Brushless: Brushless
  • Sensored/Sensorless: Sensored
  • Pole Count: 4
  • KV Rating: 4300
  • LiPo Cells: 2S
  • No-load Current(A): 4.7
  • Resistance(mΩ): 3.8
  • O.D.(mm): 36mm (1.417in)
  • Length(mm): 62 (2.44in)
  • Shaft Diameter(mm): 5 (0.197in)
  • Weight(g): 218
  • Shaft Length(mm): 17 (0.669in)
  • Timing: 20-40 Degrees (Adjustable)

(HW30401152)

SKU HW30401152
Barcode # 6938994419024
Brand HOBBYWING
