ACE RC Digital Servo Rudder DS0606N

SKU: TTR8163

$110.88
RRP $123.20
SAVE $12.32 (10%)
Out of Stock: Available to Order



Fixed Rate By Invoice Total - $18.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

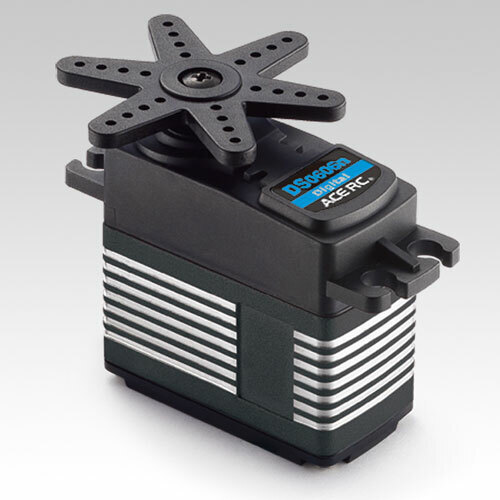

ACE RC DS0606n High Speed Servo. 5.4Kg@6V.

ACE RC (TTR8163) DS0606N RUDDER DIGITAL SERVO

The ACE RC DS0606n is the newly design high speed and high torque digital servo for helicopter rudder. Extraordinary aluminium heat sink middle case with cooling fins to cool the coreless motor and prevent the fading of performance. Muscular holding power and high power gain combined with fewer angular errors and quick response time.

DS0606n is a narrow pulse (760μs) digital servo, defined be fit with all the standard pulse and narrow pulse Gyro in the market.

Specifications

  • Motor : Coreless
  • Gear: Plastic
  • Bearing: 2BB
  • Case: Heat Sink
  • Dim. L x W x H: 40.5 x 20.2 x 39.6mm
  • Weight: 60g
  • Torque (Kg-cm): 4.8V: 4.5 / 6.0V: 5.5
  • Transit Time (sec/60°): 4.8V: 0.073 ; 6.0V: 0.058
  • Voltage Range: 4.8V / 6.0V
  • PWM Pulse: 760μs

(TTR8163)

SKU TTR8163
Barcode # 4719523583773
Brand THUNDER TIGER
