Hitec HS-785HB 13.2kg 3.5 Turn Winch Karbonite Gear Servo

HRC33785S

SKU: HRC33785S

$70.00
RRP $75.00
SAVE $5.00 (7%)
Out of Stock: Available to Order



Fixed Rate By Invoice Total - $14.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

Overview

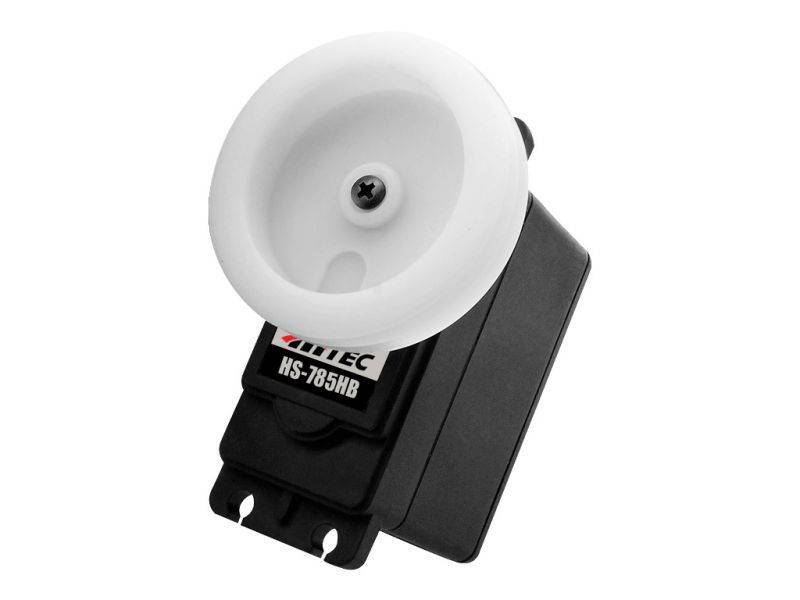

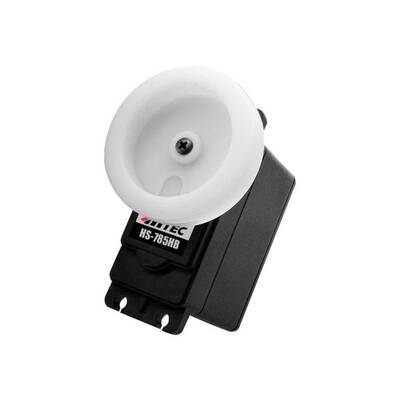

Hitec's HS-785HB Sailboat Sail Winch Servo

Features

  • Dual Ball Bearing Supported Output Shaft
  • Large Drum Wheel
  • Perfect replacement winch servo for the Pro Boat Ragazza
  • *** Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail

The HS-785HB sail winch servo with it's large drum wheel has 3 1/2 revolutions of travel for hauling in even the largest of sails. With its dual ball bearing supported output shaft the HS-785HB will provide years of reliable service.



Size Category

Specialty

Type

Analog

Application

Sail winch

Torque

153 oz-in (11.0kg-cm) @ 4.8V; 183 oz-in (13.2kg-cm) @ 6V

Speed

1.68 sec/60 deg @ 4.8V; 1.38 sec/60 deg @ 6V, at no load

Length

2.32 in (59.0mm)

Width

1.14 in (29.0mm)

Height

1.97 in (50.0mm)

Weight

3.88 oz

Bushing Or Bearing

Bearing

Bearing

Dual

Motor Type

3 Pole

Connector Type

Universal

Gear Material

Karbonite

Current Draw Idle

8mA

Current Draw Stall

1500mA @ 4.8V; 1800mA @ 6V

Voltage

4.8V to 6.0V

Deadband

5µs



(HRC33785S)

SKU HRC33785S
Brand HITEC
Shipping Weight 2.0000kg
