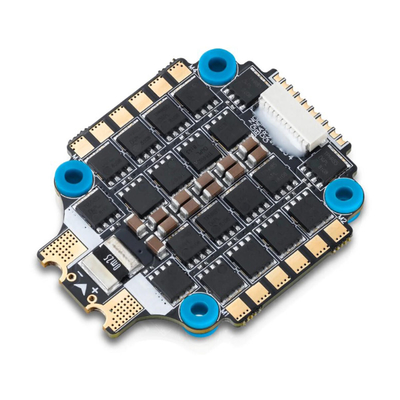

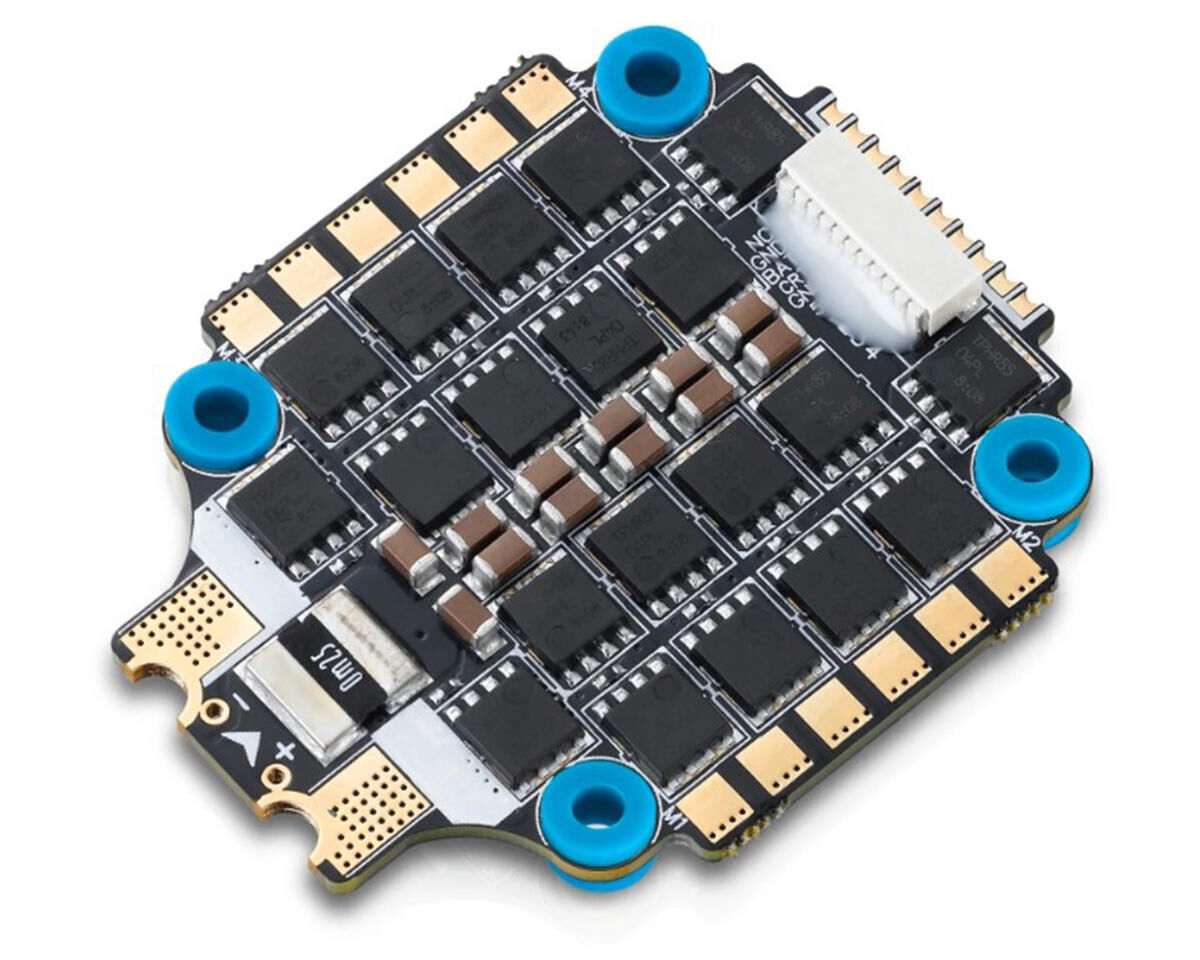

The Hobbywing 4-in-1 XRotor Micro 65A ESC is highly integrated with the latest features and hardware designs, as well as incredibly compact. Featuring upgraded 65A (x4) ESCs, BLHeli_32 DShot 1200 support, two built in 5V BECs, and a voltmeter module that allows the flight controller to monitor battery voltage and amperage in real time.

Innovative shock-absorbing structure allows the ESC to utilize rubber grommets for mounting, as well as connection via a soft silicone cable (best connectivity is in conjunction with the Micro F4 G2 Flight Controller). These small touches aid in reducing vibrations to the flight controller. 3rd Generation BLHeli_32 features incredible performance & rich functions that supports adjusting parameters or upgrading firmware via different methods. Supports up to DShot 1200.

Features:

High performance 32-bit microprocessor with the running frequency of up to 120MHz for excellent performance.
Third generation BLHeli_32 code can support up to 128KHz PWM output frequency, which can be compatible with more motors.
All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
Code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments.
The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power up.
Also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts
