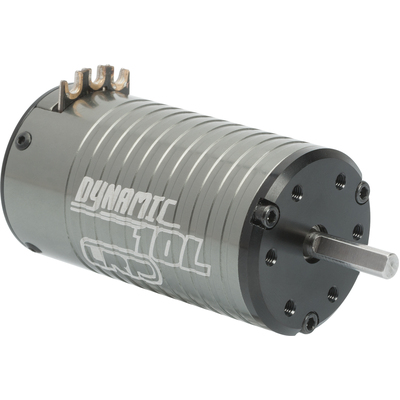

LRP Dynamic 10L 3700KV Brushless Motor

SKU: LRP-53540

$229.00
Out of Stock: Available to Order



Fixed Rate By Invoice Total - $15.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

Dynamic10L BL Motor 3700kV

The LRP Dynamic 10 brushless motor line offers high-end motors in 540 and 550 size for universal use in 1/10 scale R/C cars. The intriguing feature of the Dynamic 10 motors – they are tailor-made for the operation with sensor as well as sensorless controlling and therefore can be used with almost every available brushless speed control. The ultra lightweight, precision machined 7075-T6 aluminium housing has optimised cut-outs for best heat absorption and lowest running temperatures also at full power output.

A special design with 4 magnets and 12 slots provides highest torque. The precision balanced rotor guarantees maximum radial run-out and rpm. A newly developed machined housing made from 7075-T6 aluminium optimises the cooling and ensures lowest running temperatures.





The LRP Dynamic 10 fits into all 540 and 550 size 1/10 brushless models.

LRP recommends the Dynamic 10L 3.700kv for 2WD & 4WD Short Course
(recommendation is only valid for 2S (7.4V) operation)

Features

  • Sensored/sensorless dual operation - perfect operation with any brushless speedo
  • High torque design: Special design with 4 pole magnet and 12 slots for highest torque
  • Universal fit - fits all 1/10 brushless cars - standard 540/550 size
  • CoolTemp motor design: Highly efficient design and optimised cooling for low running temperatures
  • Oversized ball bearings: For highest performance and durability
  • XTEC F10 housing - machined from 7075-T6 aluminium. Fully dismountable
Specifications
Weight275g
kV3.700
Voltage input3.7 - 14.8V
Length70.00mm
Diameter35.9mm
Output shaft5.00mm
Rotor4-pole, sintered
Stack/winding12-slot, low resistance
RPM at 3.7V13690
RPM at 7.4V27380
RPM at 11.1V41070
Application - Advanced4WD MT, SC, TX, BX

(LRP-53540)

SKU LRP-53540
Brand LRP
Shipping Weight 4.0000kg
