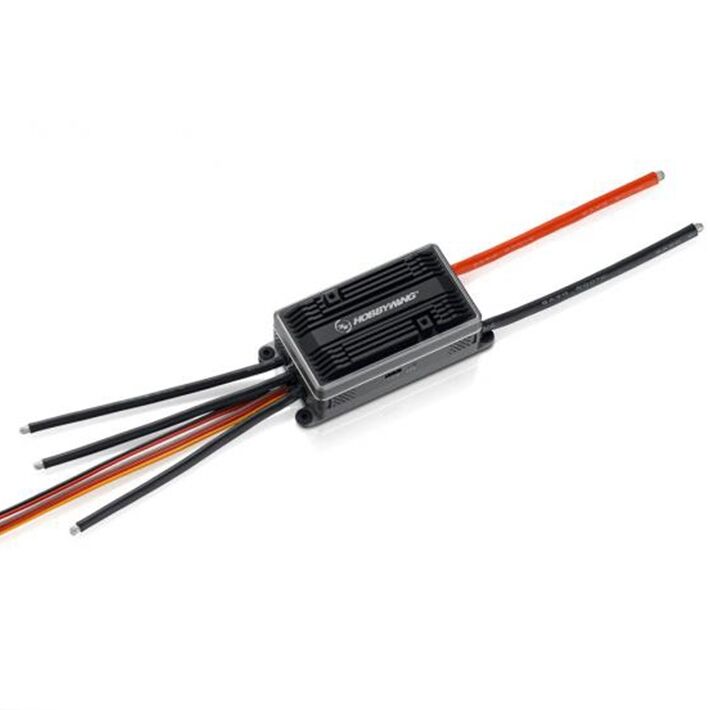

####Platinum 200amp HV-SBEC V4.1 esc

HW30209101

SKU: HW30209101

$729.00
RRP $810.00
SAVE $81.00 (10%)
Out of Stock: Available to Order



Fixed Rate By Invoice Total - $0.00
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

The Platinium Series are professional ESC for airplane and helicopter with best performance and advanced functions like governor mode for helicopter. The Firmware is updatable and the ESC are suitable for senior pilots as well.

Exquisite Design & Quality Components

The elegant cases are made by Aluminum.
Top level components combined with the exquisite industrial design guarantee the Platinum HV 200A SBEC V4.1 ESC the unmatchable quality & look.

Integrated Heat-dissipation Structure

The improved structure solves the heat-dissipation problem of the “Sandwich” stacking circuit board. The appropriate circuit distribution allows all components on both sides of circuit boards to quickly
conduct heat to the Aluminum cases. The way of heat dissipation maximizes the cooling and guarantees the Platinum HV 200A SBEC V4.1 ESC always operates in cool & stable condition.

Platinum HV 200A SBEC V4.1 (New) Way of Heat Dissipation

 The power board dissipates heat via the Aluminum upper & medial case
 The control board dissipates heat via those holes on the medial case
 The BEC circuit board (at the bottom) dissipates heat via the Aluminum lower case.
Excellent Speed-governing

High-performance 32-bit processor combined with advanced algorithm makes the speed-governing excellent for different conditions. With the adjustable sensitivity of speed-governing, every pilot can find
the most suitable settings for his helicopter.

Intelligent and Variable Frequency Soft-start Technology

Based on the original super soft-start technology,the intelligent and variable frequency soft-start technology combined with the adjustable throttle response time guarantees motors ultra-soft and smooth
start and ZERO blade-drift issues of helicopter, this definitely creates a perfect starting for every flight.
Built-in Spark-proof Circuit

The built-in spark-proof circuit effectively eliminates the sparks produced when the ESC is powered on and extends the service life of connectors.




Technical Data

  • Connection Wires: 2x 8AWG for Battery
  • Connection Wires: 3x 10AWG for Motor
  • Cont./Peak Current: 200A / 300A
  • Motor Type: Sensorless Brushless Motor
  • Applications: 700-800 class Helis
  • LiPo/NiMH Cells: 6-14S LiPo
  • BEC Output: 5V - 8V (Switchable in 0,1V Steps)
  • BEC Current (Cont. / Peak): 10A / 30A
  • Throttle Signal / RPM Signal Transmission: via optical coupler
  • Size (LxWxH): 105 x 50 x 36 mm
  • Weight: 325g (with wires)
  • Programming Port: FAN/PRG Port
  • ESC Programming Via: LCD Program Box

(HW30209101)

SKU HW30209101
Barcode # 6938994402804
Brand HOBBYWING
