QUICRUN 10BL60-SENSORED G2

SKU: HW30108001

$71.10
RRP $79.00
SAVE $7.90 (10%)
In Stock at Warehouse



Fixed Rate By Invoice Total - $14.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.
Product Name
  QUICRUN 10BL60 SENSORED G2
Product Number
  30108001
Type
Scale 1/10th
Brushed/Brushless Brushless
Sensored/Sensorless Sensored
Waterproof NO
Specifications
Cont./Peak Current 60A/200A
Input Voltage 2S Lipo
BEC BEC Output Switch Mode 6V/7.4V @4A
Wires & Connectors
Input Wires Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires Blue-14AWG-175mm*1、Yellow-14AWG-175mm*1、Orange-14AWG-175mm*1
Input Connectors No
Output Connectors No
ESC Programing via
SET Button on ESC Supported
LED Program Box Supported
LCD G2 Program Box Supported
LCD PRO Supported
OTA Programmer Not Supported
Program Port Shared with fan port
Data Recording
Extreme value Not Supported
Real-time Data Not Supported
Historical data (Graph) Not Supported
Firmware
Firmware Upgrade Not Supported
Size & Weight
Size 35.0*31*30.8mm
Weight 66.5g (Included wires&connectors)
Applications
Motors Sensored/Sensorless Brushless motor
Vehicles 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count QUICRUN 3650 SD G2



    • Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or troubleshooting.
    • Powerful built-in BEC
      • Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V.
      • It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.
    • Support Boost/Turbo timing technology
      • With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.
    • High reliability and durability
      • Continuous current 60A, Peak Current 200A. A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability.
    • Support multiple programming methods
      • The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.
    • Support Motor Rotation Adjustment
      • This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

    Specifications:
    • Scale: 1/10th
    • Brushed/Brushless: Brushless
    • Sensored/Sensorless: Sensored
    • Waterproof: NO

    Relevant Parameters:
    • Cont./Peak Current: 60A/200A
    • Input Voltage: 2S Lipo
    • BEC BEC Output: Switch Mode 6V/7.4V @4A

    Wires & Connectors:
    • Input Wires: Black--14AWG-175mm*1 Red--14AWG-175mm*1
    • Output Wires: Blue-14AWG-175mm*1, Yellow-14AWG-175mm*1, Orange-14AWG-175mm*1
    • Input Connectors: No
    • Output Connectors: No

    ESC Programing via:
    • SET Button on ESC: Supported
    • LED Program Box: Supported
    • LCD G2 Program Box: Supported
    • LCD PRO: Supported
    • OTA Programmer: Not Supported
    • Program Port: Shared with Fan port

    Data Recording:
    • Extreme value: Not Supported
    • Real-time Data: Not Supported
    • Historical data (Graph): Not Supported
    • Firmware Upgrade: Not Supported

    Size & Weight:
    • Size: 35.0*31*30.8mm
    • Weight: 66.5g (Included wires & connectors)

    Applications:
    • Motors: Sensored/Sensorless Brushless motor
    • Vehicles: 1/10th Touring, Buggy, Drift, 1/12th and 1/14th Vehicles
    • KV Rating/T Count: QUICRUN 3650 SD G2
  • Package total weight: 130.00 grams (incl. packaging)
  • Package size: 9.00 x 12.50 x 7.00cm

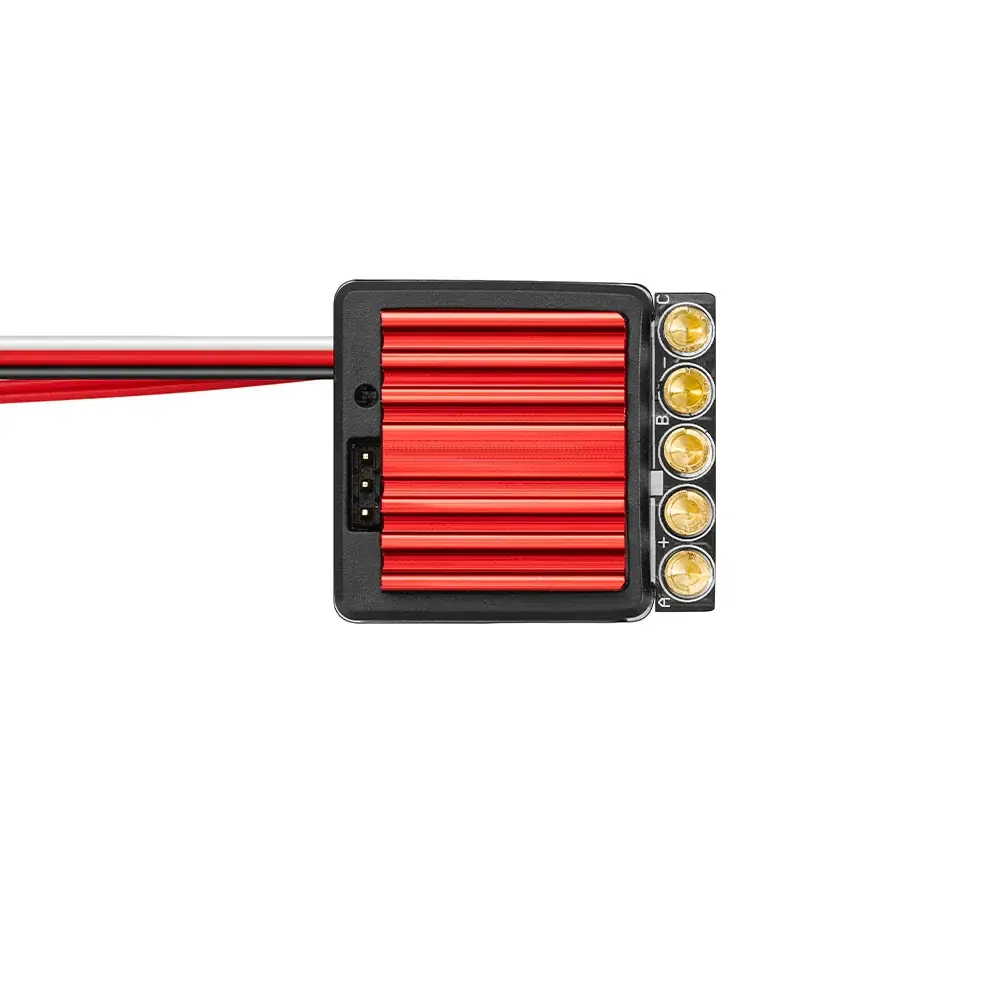

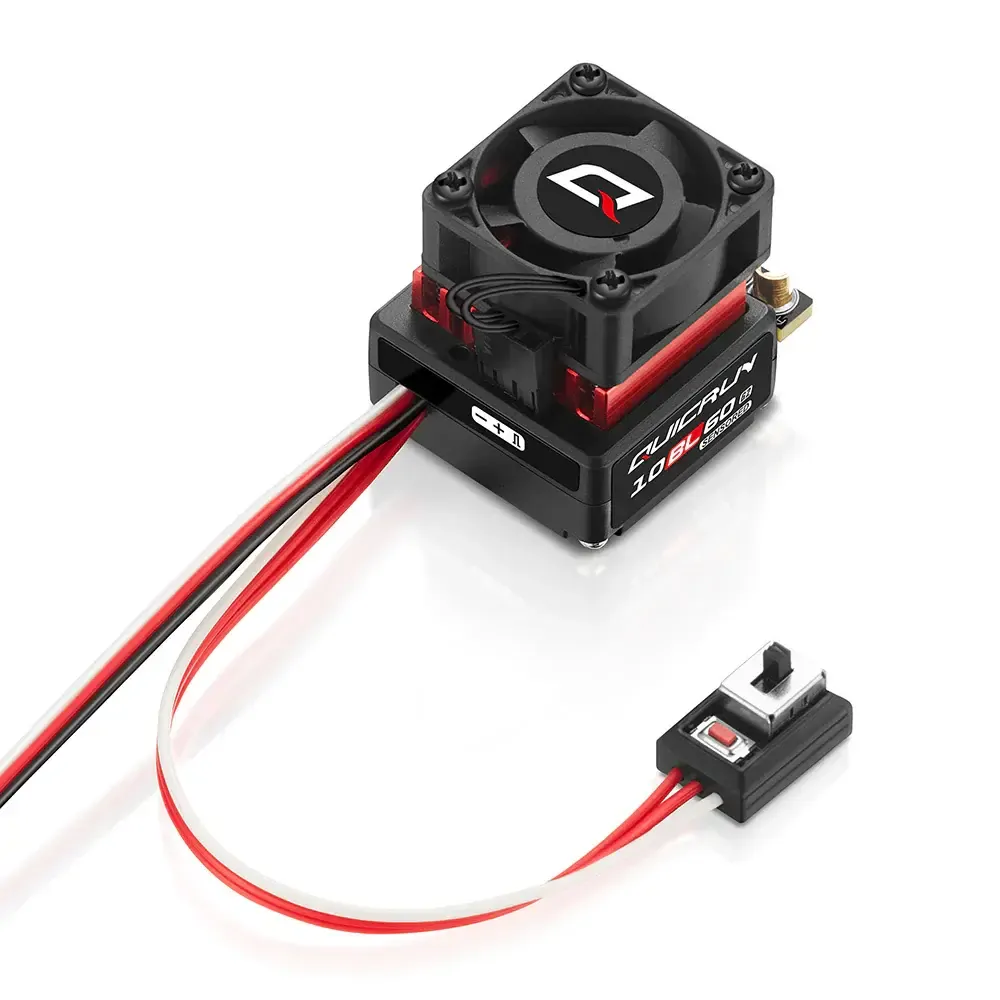

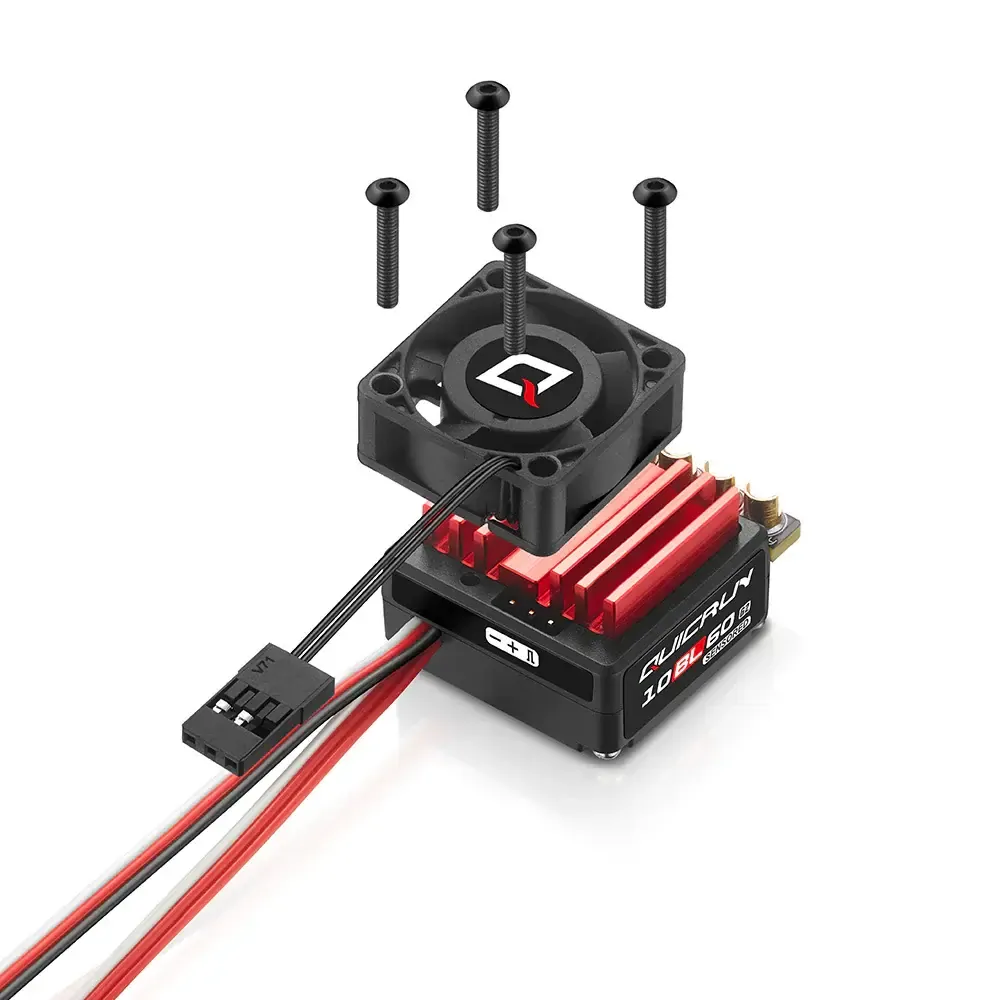

  • Factory description: Hobbywing QUICRUN 10BL60-SENSORED G2 Brushless ESC

(HW30108001)

SKU HW30108001
Barcode # 6938994413008
