QUICRUN Fusion SE for Crawler-1200KV 540spec

SKU: HW30404318

$127.98
RRP $142.20
SAVE $14.22 (10%)
In Stock



Fixed Rate By Invoice Total - $18.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

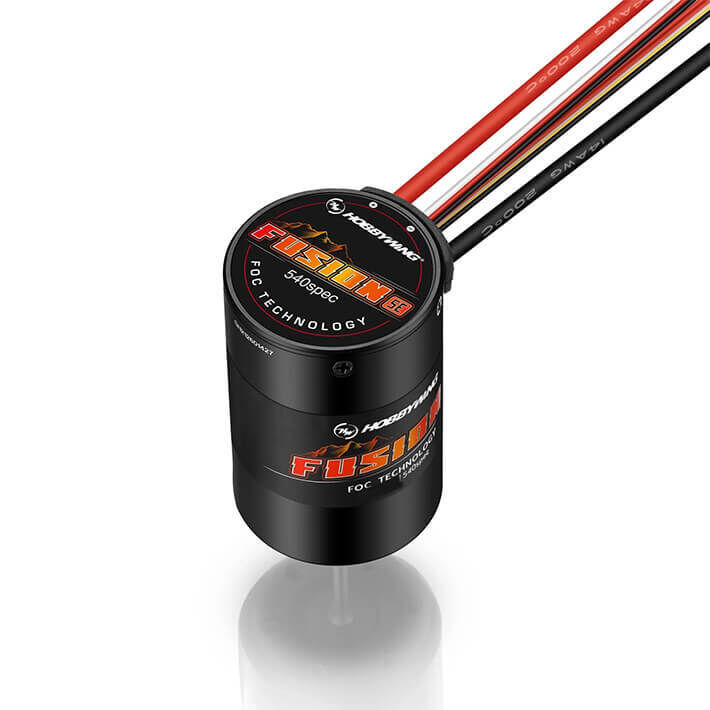

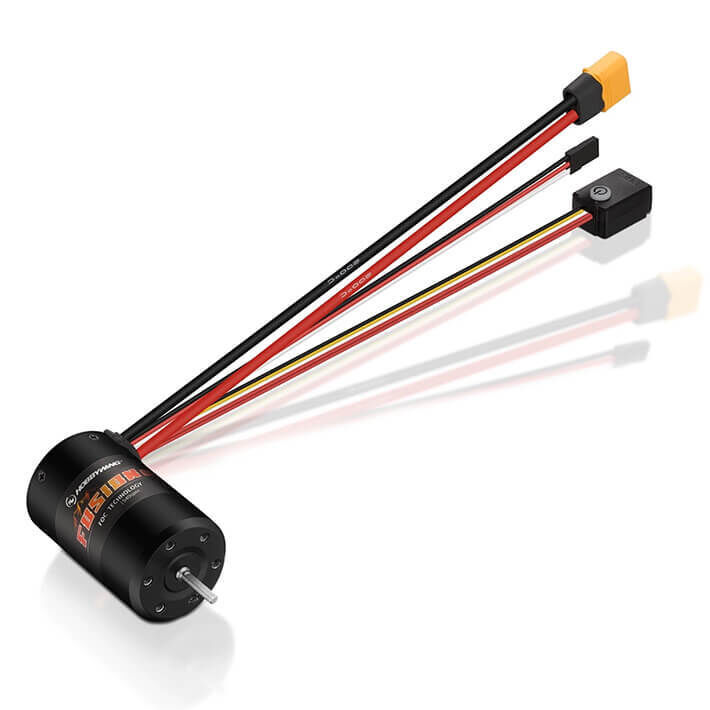

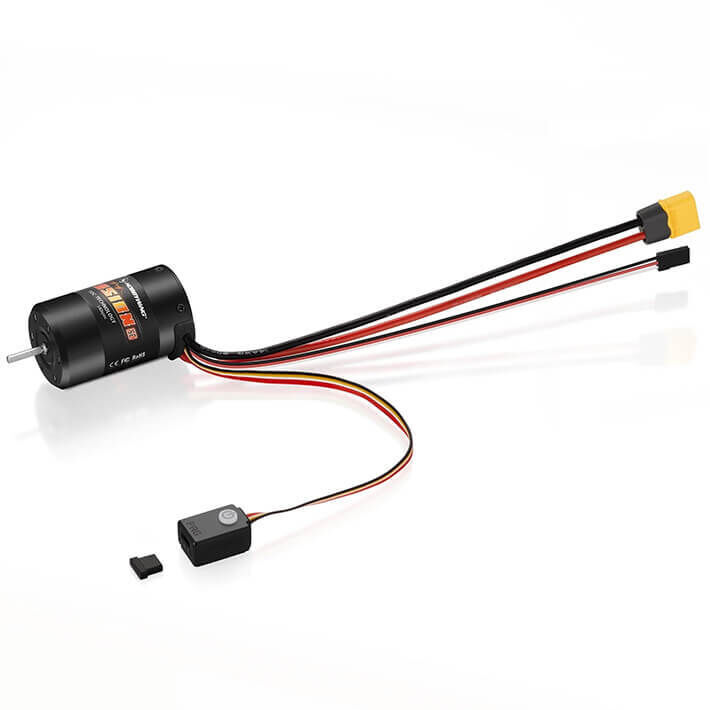

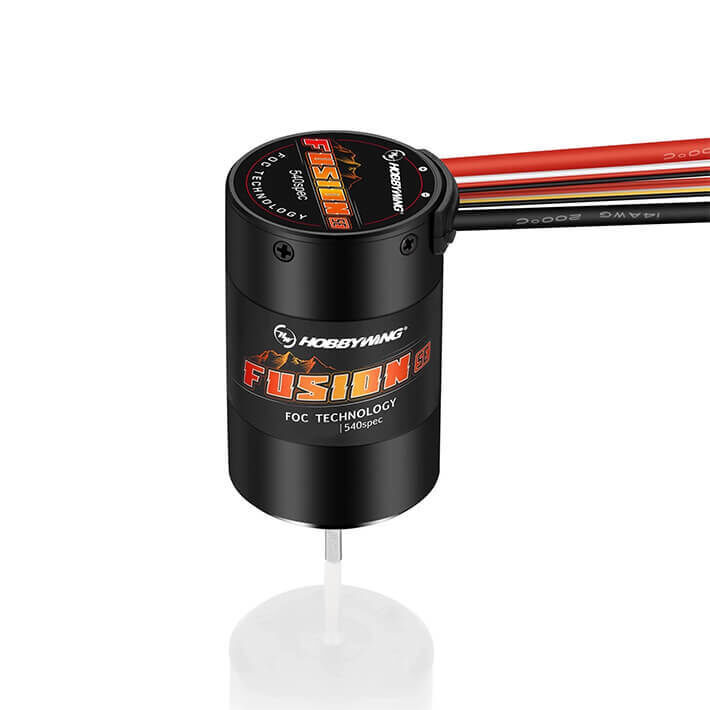

HOBBYWING QUICRUN FUSION SE 1200KV SENSORED BRUSHLESS 2IN1



SPECIFICATIONS

Type

Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof

Specifications

Cont./Peak Current: 40A
Input Voltage: 2-3S LiPo/6-9 Cell NiMH
BEC Output: 6V/7.4V@4A 6A peak
Motor KV: 1200KV
Diameter/Length of Motor: 36mm / 58.1mm
Shaft Diameter / Exposed Shaft Length: 3.175mm / 16.5mm
Motor Poles:4

Wires & Connectors

Input Wires: Red-14AWG-200mm*1 /' Black-14AWG-200mm*1
Input Connectors: XT60
(Note: All the wire length above is the original length, not the length you see from the outside.)

ESC Programming Via

SET Button on ESC: Not Supporterd
LED Program Box: Supported
LCD Program Box: Not Supported
OTA Programmer: Not Supported
Program Port: Independent programming interface (Switch Positionm)

Firmware

Firmware Upgrade: Not Supported

Size & Weight

Size: 36 x 58.1mm
Weight: 201g (Including Wires and Connectors)

Applications

Venicles: 1/10th Rock Crawler



(HW30404318)

SKU HW30404318
Barcode # 6938994412223
