QUICRUN WP-8BL150 G2

SKU: HW30109003

$161.10
RRP $179.00
SAVE $17.90 (10%)
In Stock



Fixed Rate By Invoice Total - $18.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

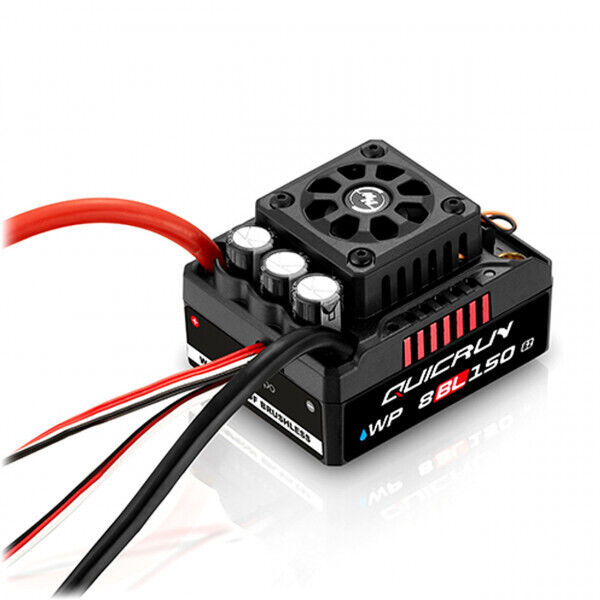

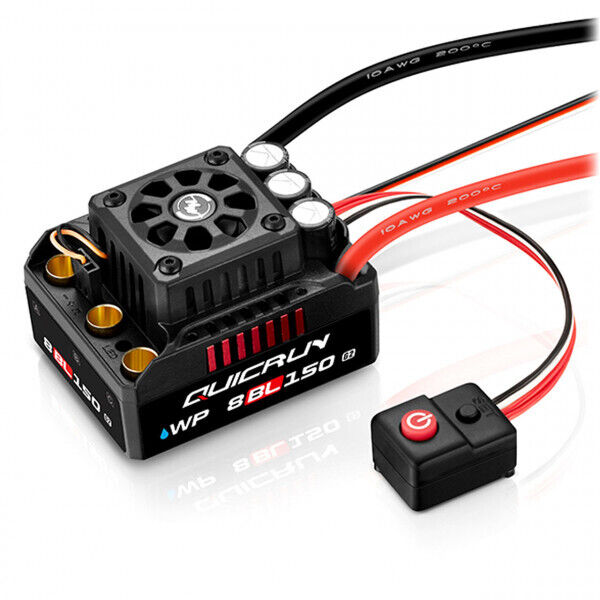

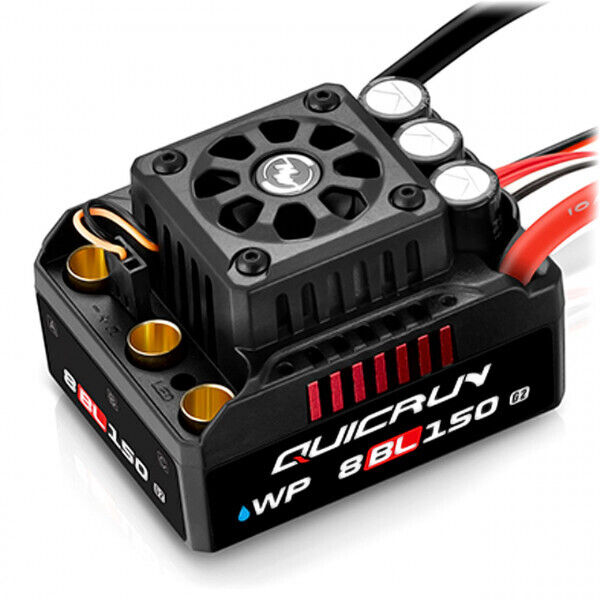

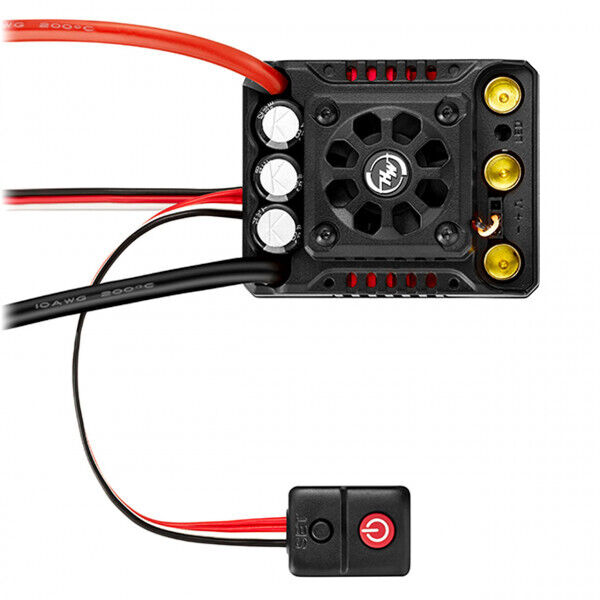

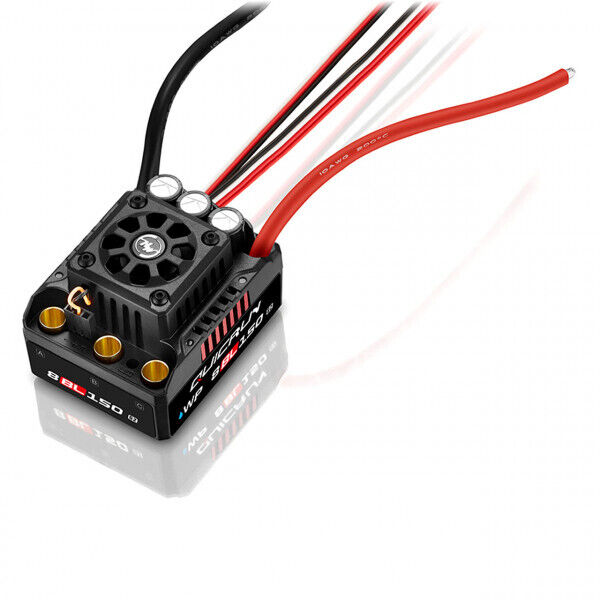

Product information "Hobbywing QuicRun WP8BL150 G2 brushless controller 150A 3-6s for 1:8"

The second generation QuicRun WP 8BL150 controller demonstrates greater efficiency at low temperatures than its predecessor thanks to intelligent freewheeling technology. But an expected increase in performance is not everything with this G2 controller. The main focus was primarily on the further development of the BEC. Previously only 6V at 3A, now switchable with 6V or 7.4V at a whopping 6A. The maximum current can even reach up to 12 amps. The BEC thus ensures that the controller can now also be used together with high-voltage servos.

The power board inside the controller is covered with a patented copper heat conduction rail to achieve rapid dissipation of the resulting internal heat. In addition, the built-in fan creates an extremely reliable cooling system that ensures that the controller always has a safe operating temperature. The integrated overheating protection function for the 2040uF capacitors can also effectively prevent the regulator from major damage due to overload.

Characteristics

  • Protected against dust and splash water according to IP67
  • Programmable high performance switching mode BEC
  • Suitable for various powerful and high voltage steering servos
  • 9 different acceleration programs from “soft” to very “aggressive” can be selected depending on the model and route.
  • Proportional brake with adjustable maximum braking force and automatic brake
  • Various protection functions, for example:
    - Undervoltage caused by the battery
    - Thermal overheating
    - Loss of gas signal
    - Capacitor overheating
  • Independent programming port - no need to pull the throttle cable out of the receiver beforehand

Technical data

Type: Brushless sensorless
Current (continuous/short): 150A/950A
Number of cells: 3-6S LiPo
BEC: 6V/7.4V with 6A (switch mode)
Waterproof: Yes (IP67)
Exit: 6.5mm gold (socket)
Programming: - LCD programming box G2
- LED programming card
- programming interface
Dimensions: 60x48x40.4mm
Weight: 169.5g
Mission: 1/8 truck, monster truck

Delivery

  • Quircun WP 8BL150 regulator
  • Instructions (English)

(HW30109003)

SKU HW30109003
