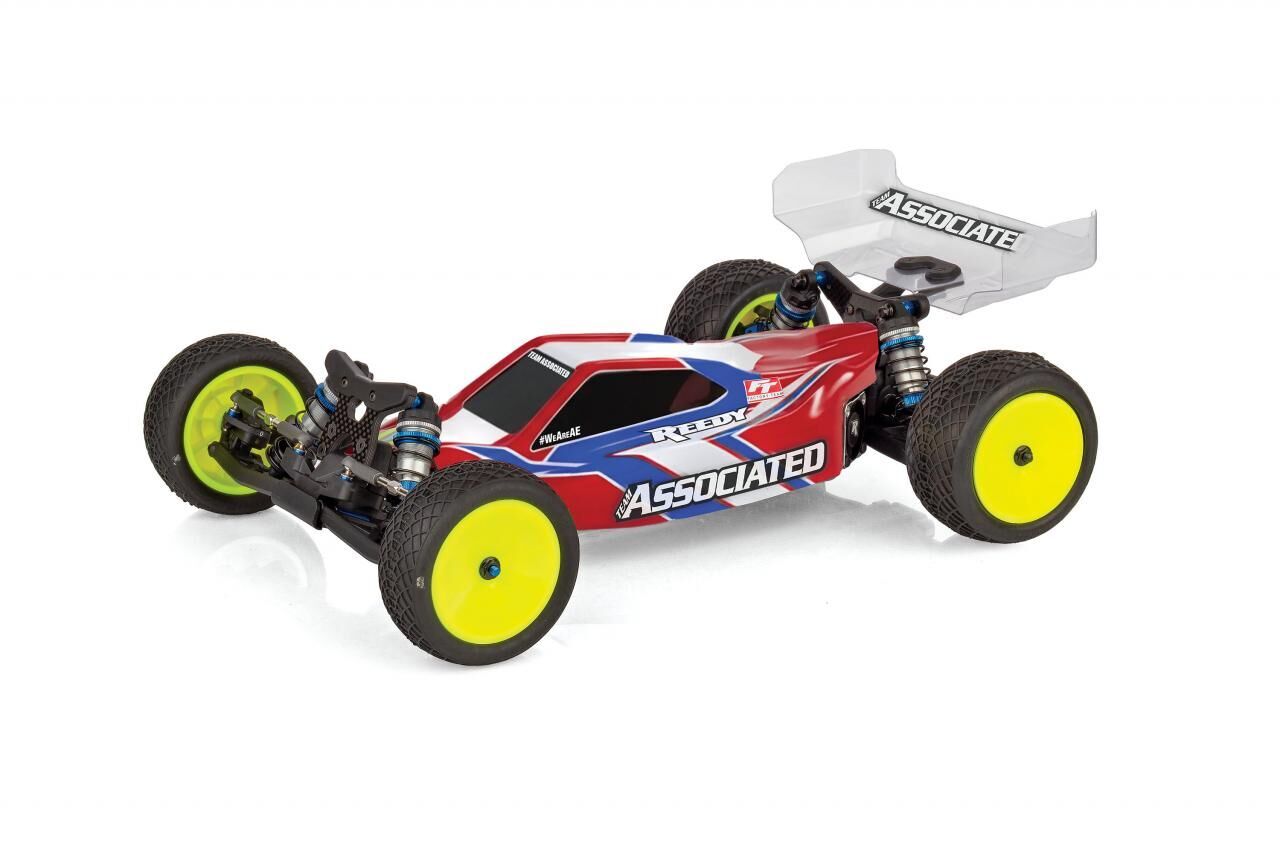

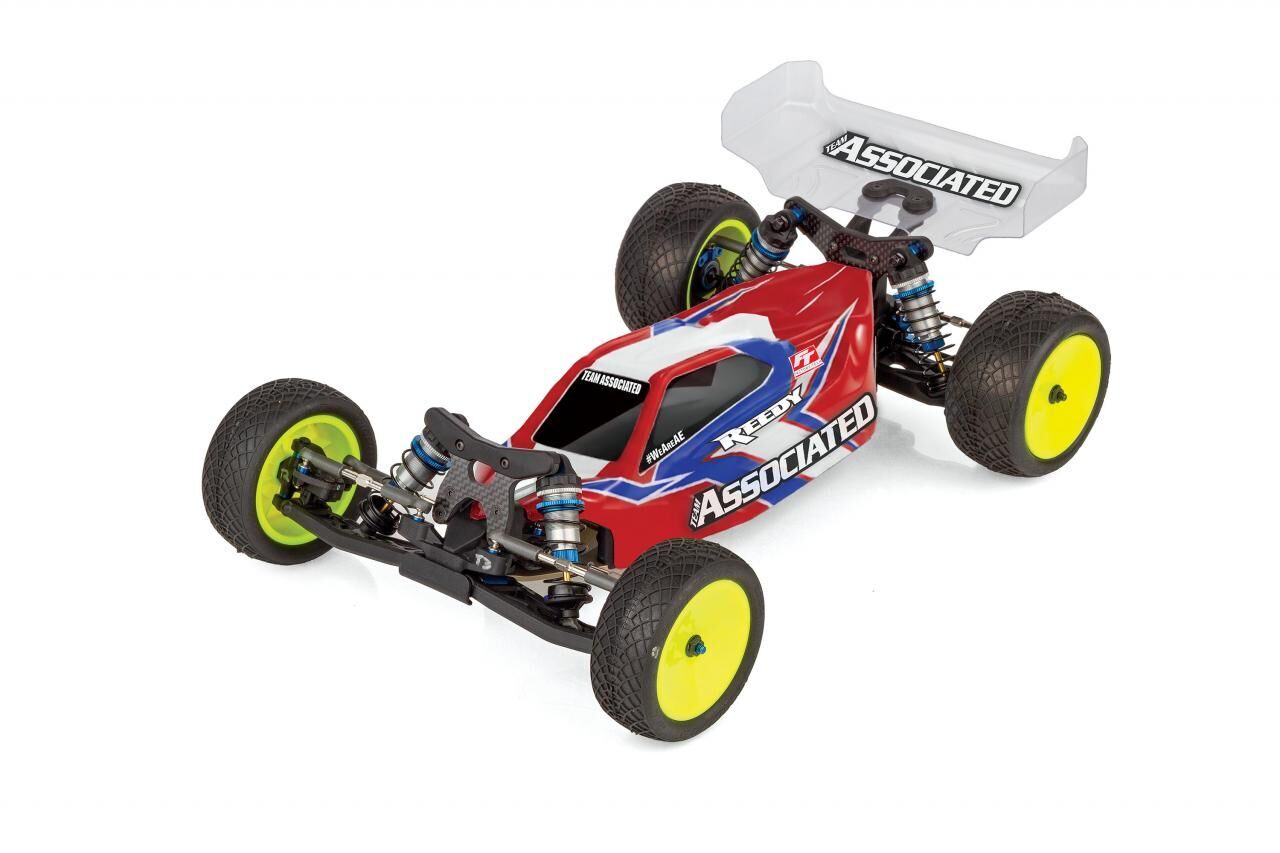

RC10B7.1D Team Kit

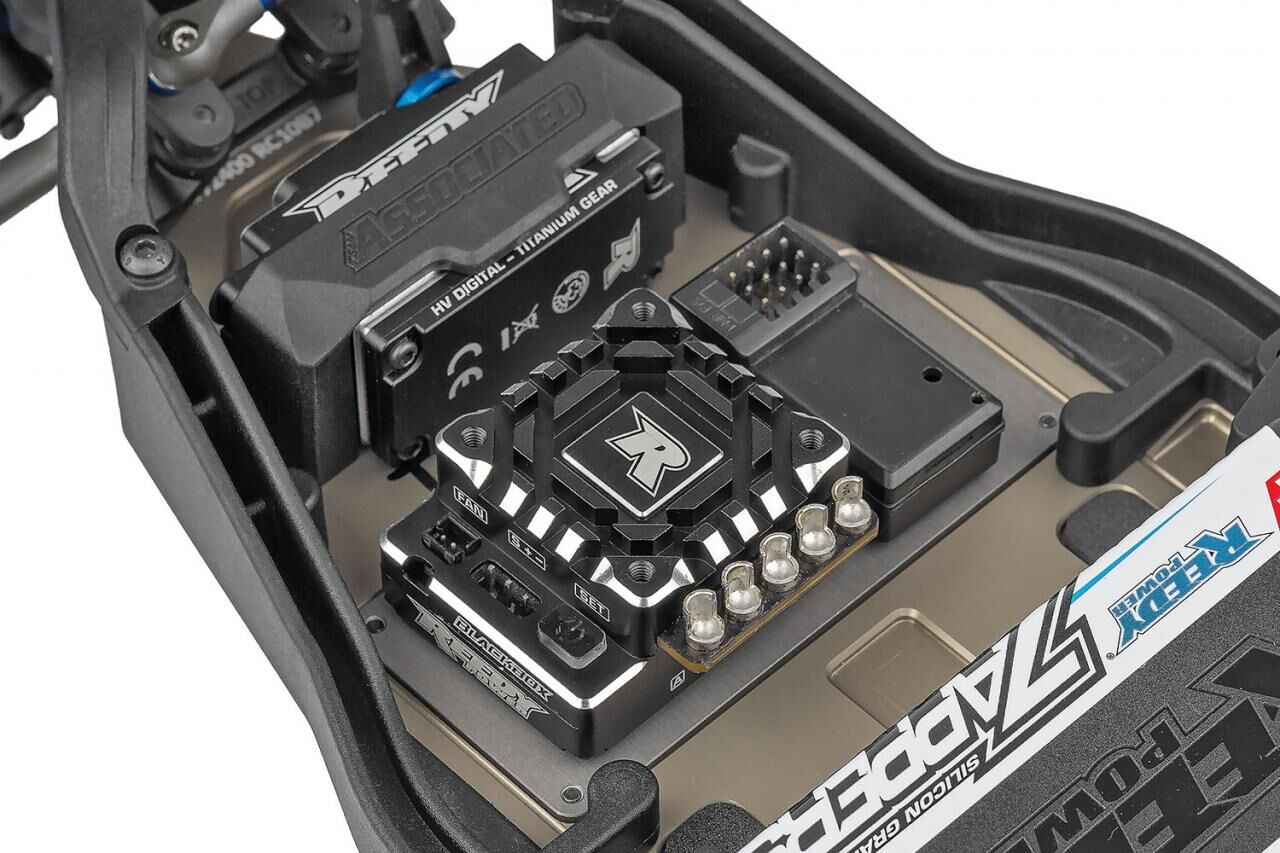

Team Associated has been at the leading edge of 1:10 scale 2WD off road for over 40 years, starting with the original RC10 and are proud to introduce the RC10B7.1D. 40 years has seen a lot of development and changes with each generation being a step forward from the last. The RC10B7.1D boasts the new long-arm suspension geometry, weight-centralized electronics layout, KPI adjustable steering blocks, and increased tunability throughout the whole chassis. These innovations have increased the potential for grip and corner speed which leads to faster lap times and an overall smoother drive feel.

The RC10B7.1D is the recommended starting kit for those who plan to race on dirt, clay, and some low-grip AstroTurf tracks. This kit comes equipped with a ball differential and an optimized setup which includes softer springs and lower pack pistons. As with previous generations, the RC10B7.1D and RC10B7.1 feature fully interchangeable parts between the two kits, which allows the user to pick and choose what configuration they want to use depending on track conditions. Both versions come with the same durability, speed, and lineage of a champion that is found in any Team Associated race platform.

Features

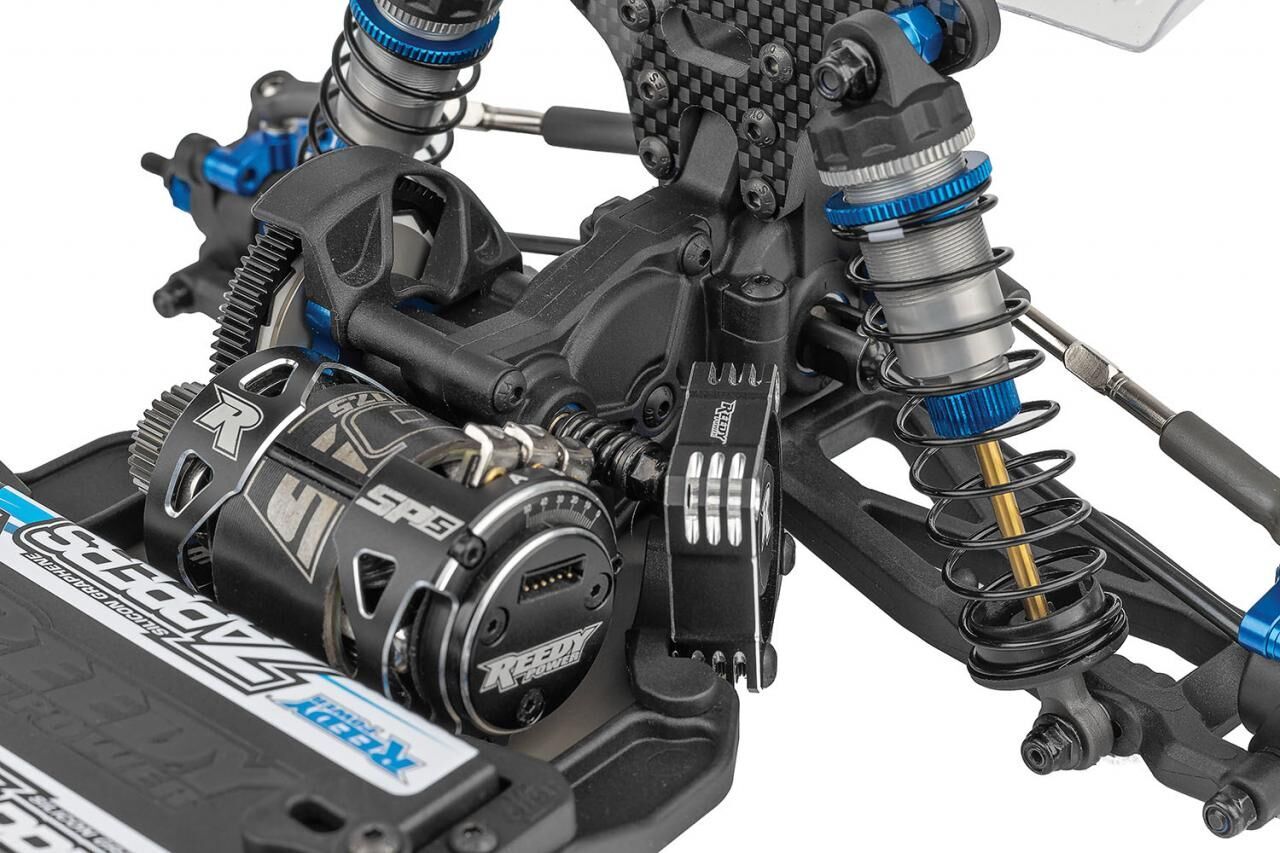

Includes 3-Gear Laydown Transmission that maintains original B7 motor position while reducing rotational weight and drag
NEW Steering and Caster Block Assembly simplifies assembly and reduces weight without sacrificing tunability

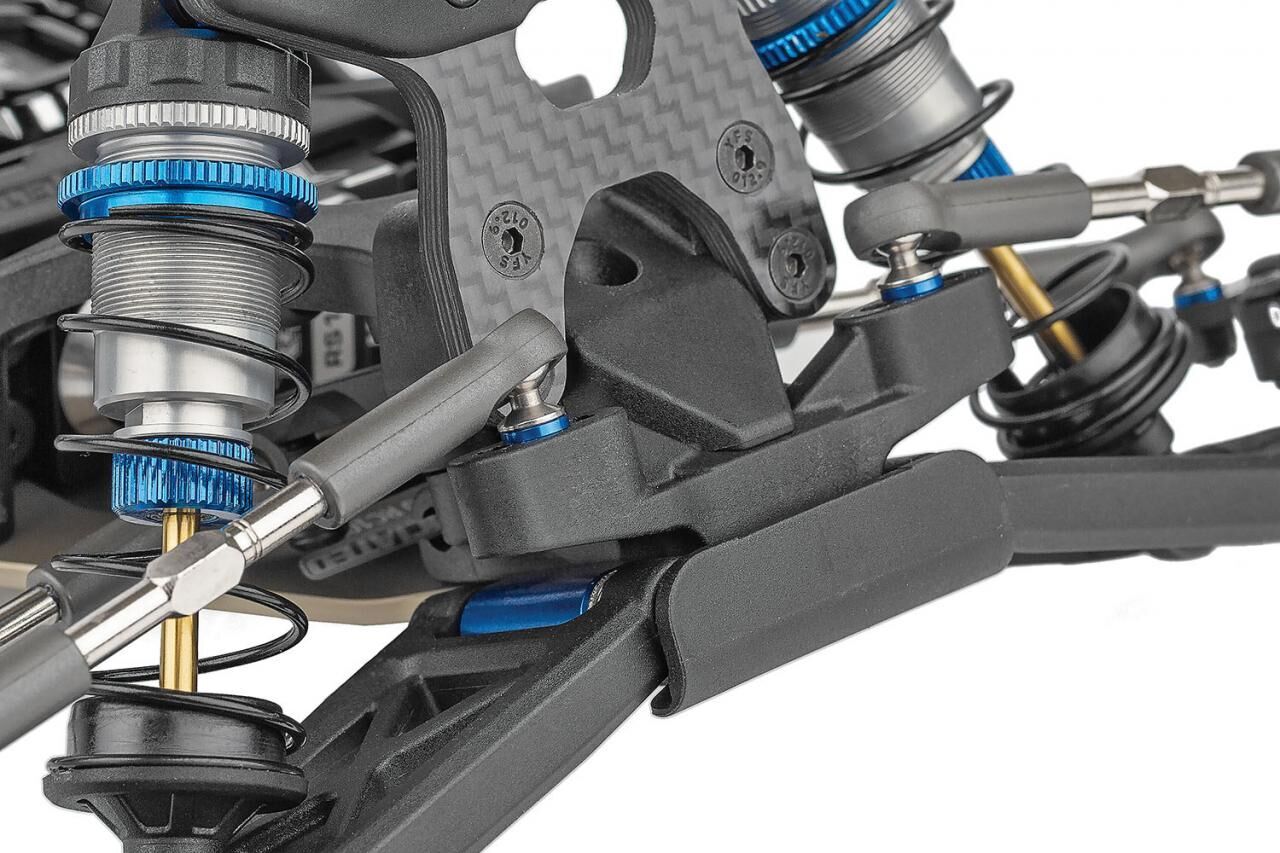

NEW -2mm Front Ballstud Mount included along with updated Top Plate and Standard Ballstud Mount

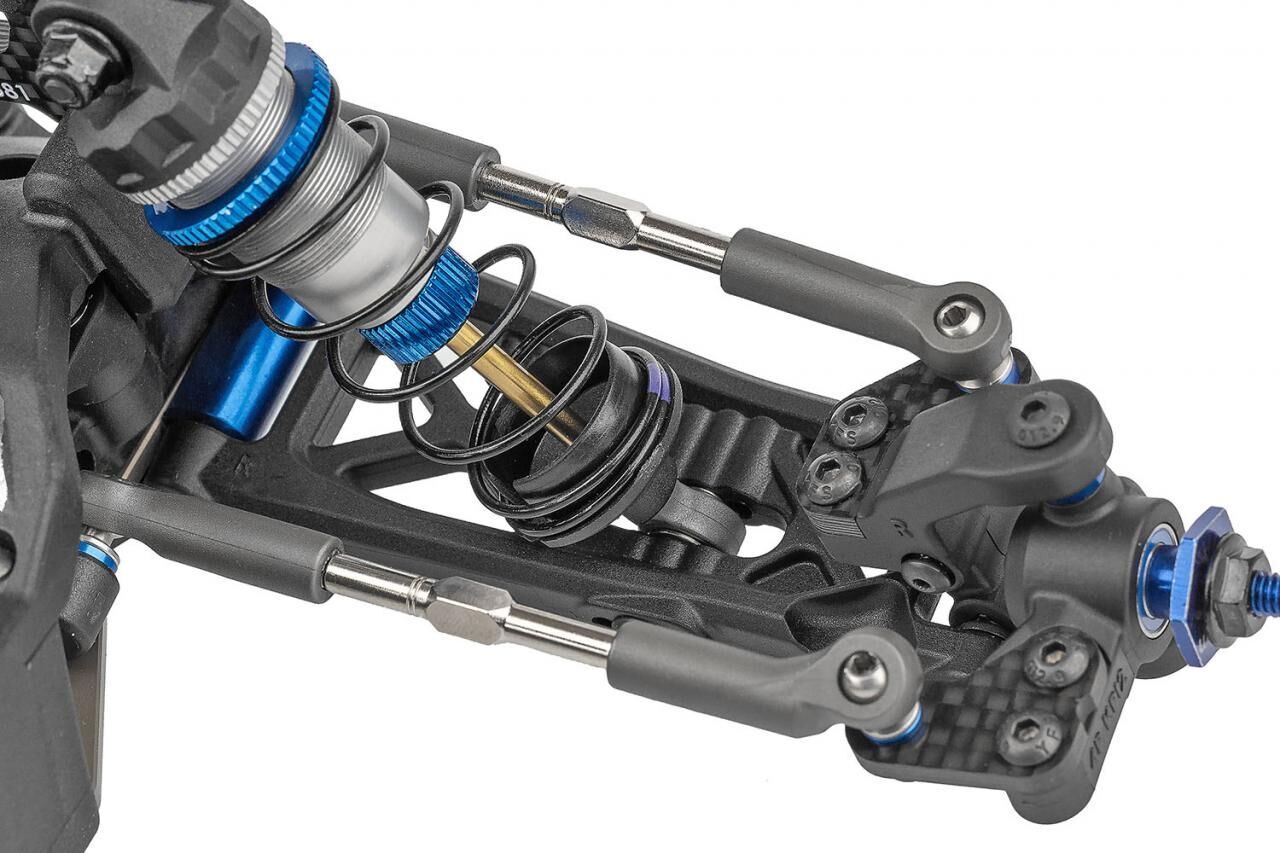

NEW Front Suspension Arms with Hinge Pin Brace for improved durability
NEW -2mm Front Shock Tower and FT -2mm Rear Shock Tower included for lower center of gravity

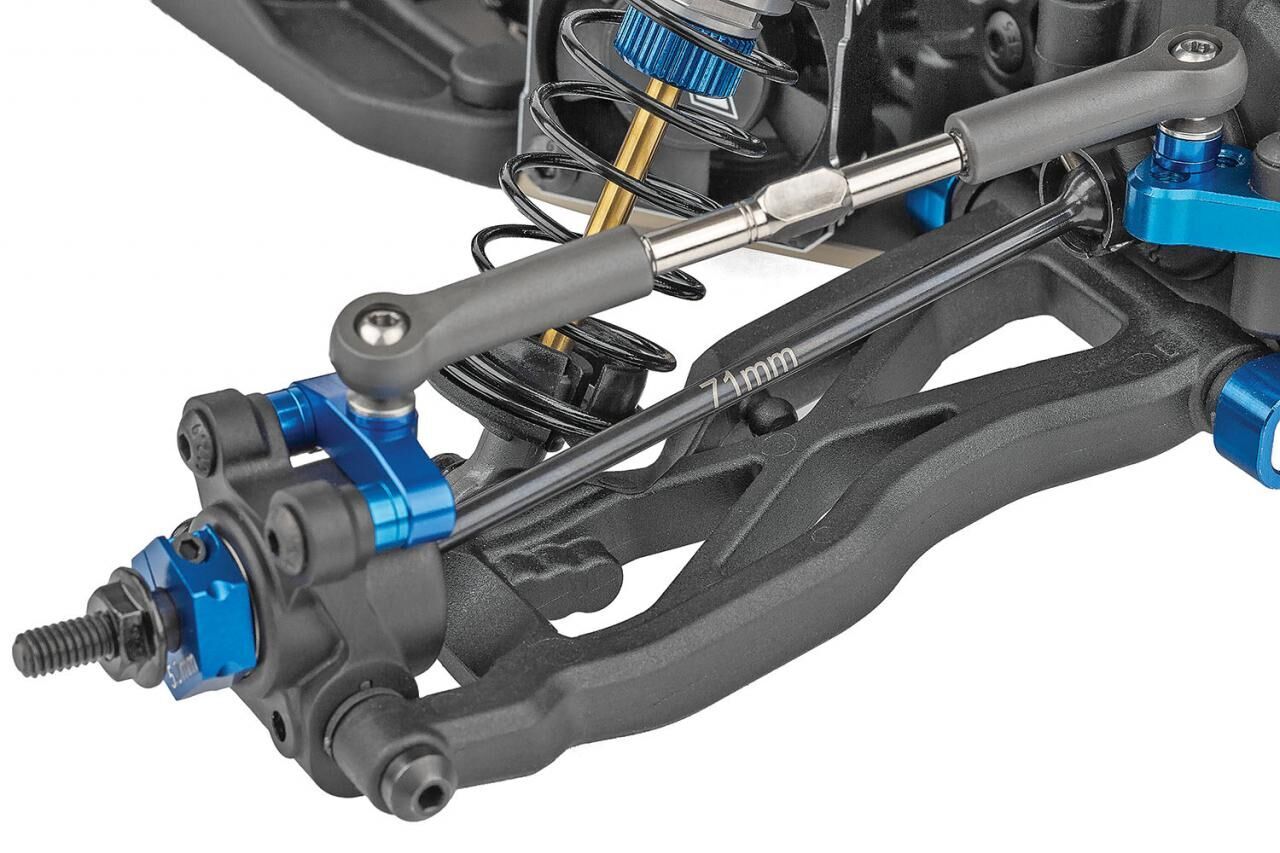

Includes 81mm Rear Suspension Arms and 71mm CVA Bones
Includes Ball Differential
Low-Profile RC10B7 Body, 7-inch Rear Wing, and 2.5-inch Front Wing
7075-T6 Aluminum Chassis with Optional Weight Plate Pockets (Aluminum plate included)
Shock Tower Covers Front and Rear
3.5mm Turnbuckles and Ballcups
13mm Big-Bore Shocks
