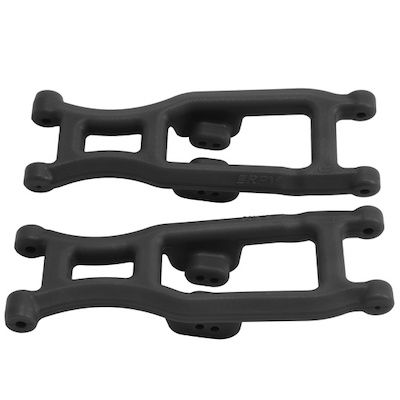

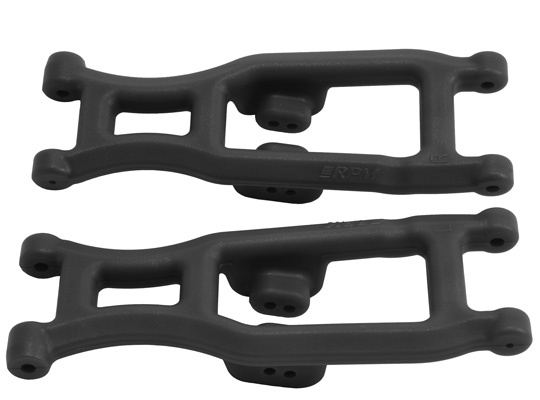

RPM Front A-Arms - Black - SC10B, SC10.2, T4.2

Calculate Shipping

Fixed Rate By Invoice Total - $12.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

Quick Notes:
– fits the Associated SC10B, SC10.2 & T4.2FT
– not compatible with the T4.2RS or SC10.2RS – see “Tech Notes” below
– replaces stock Associated #91201

Description

The SC10B, SC10.2 & T4.2FT have new, gull-wing style front A-arms that have had RPM customers contacting us for help. This new shape has been less durable than RPM customers require. The RPM A-arm design eliminates the gull-wing shape in favor of a straight A-arm design with a lowered shock mount position (the shock slips through the center of the A-arm perfectly) to retain stock suspension geometry, yet the straight A-arm style improves durability immensely.

To help improve overall durability, we also focused our attention on the hinge pin retainers. The stock set-up uses a small screw placed next to the hinge pin, relying on the head of the screw to keep the hinge pin in place. This screw hole adds a weak spot on the A-arms. Our A-arms eliminate that screw in favor of an in-line screw to keep the hinge pin in place thus increasing the durability of our A-arms even further.

Lastly, we removed as much slop from the A-arms as possible. We found as much as .005” (or .127mm) of slop in the stock a-arms in each hinge pin hole. That equates to camber, caster and toe angle settings that will not hold true to their settings. That is no longer an issue with RPM A-arms. Each hinge pin hole is a perfect fit, with less than .001” (or .025mm) of clearance for optimal suspension settings.

RPM A-arms are designed to meet a wide range of demands, from the toughest backyard basher to the smoothest track-built racer, RPM performance parts will get your ride to the finish line!

Tech Notes: RPM A-arms for the Associated SC10B, SC10.2 & T4.2FT replace stock Associated #91201 and are sold in pairs. RPM #73512 & #73515 front A-arms are not compatible with the T4.2RS or SC10.2RS. The T4.2RS & SC10.2RS use standard RPM T4 front A-arms – #70762 or #70765.

(RPM73512)
