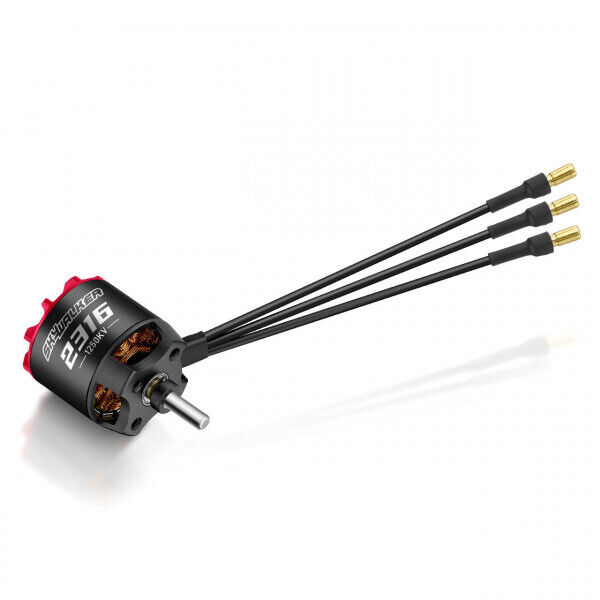

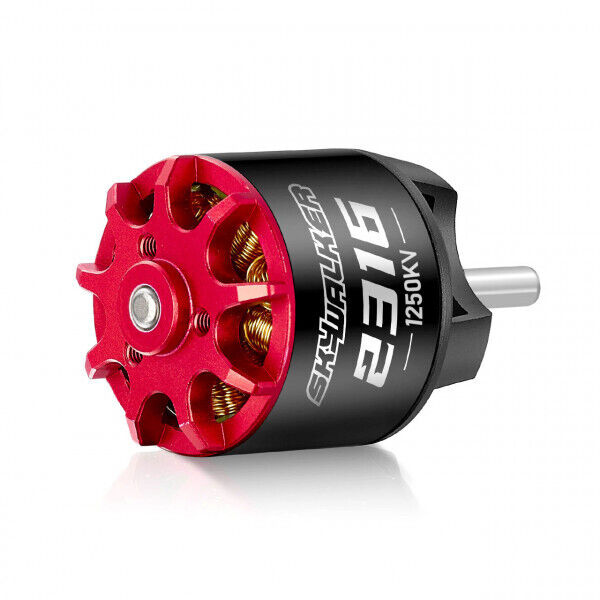

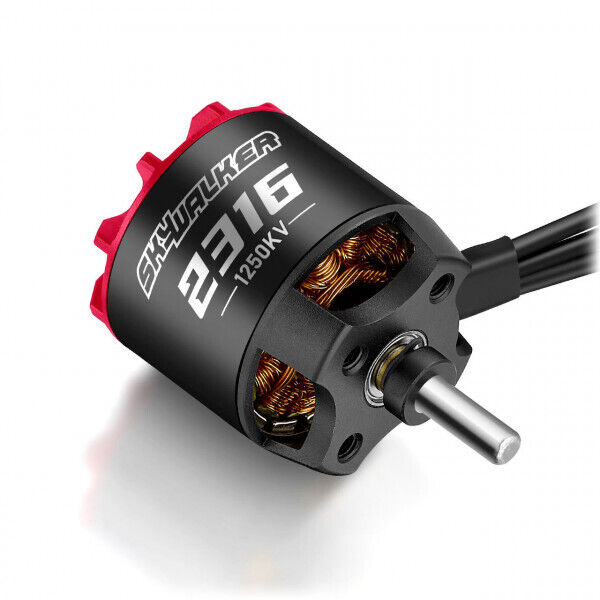

SkyWalker-2316SL-1250KV-BLACK-G1-HW

SKU: HW30415051

$55.98
RRP $62.20
SAVE $6.22 (10%)
In Stock at Warehouse



Fixed Rate By Invoice Total - $14.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

roduct information "Hobbywing SkyWalker-2316SL-1250KV-BLACK-G1-HW"

The first generation of the Skywalker motor series brings RC hobby pilots with fixed-wing models a whole new flying experience. They are also a suitable complement to the already established Skywalker ESCs and achieve around 10% more output power than comparable motors with similar specifications.

The Skywalker aircraft motors have a special propeller attachment that ensures an overall higher torque. And the motor, equipped with N48 magnets, takes advantage of exactly that to ensure maximum torque output. Incidentally, no problems due to excessive heating are to be expected. After all, there is a generous cavity in the motor, which, together with the self-draining structure of the top cover, increases the cooling performance. And together with other high-quality components such as the 0.2mm JNEH1200 silicon steel sheet and the high-temperature-resistant enameled wire, these engines are ready to travel the skies for a long time.

The rotor itself has been designed to noticeably reduce potential motor vibrations and ensure smoother operation overall. The rotor is also secured through the interaction of the various components in order to further increase the reliability of the Skywalker motors.

Features:

  • Powerful motor
  • Ideal as a complement to the Skywalker ESCs
  • Optimized rotor running
  • Designed for effective cooling and heat dissipation
  • 18AWG silicone cable

Technical Specifications:

Type: Brushless
kV Rating: 1250kV
No-Load Current: 1.7A/14.8V
Resistance: 38.5m Ohm
LiPo Cells: 3-4S LiPo
Slots & Poles: 12N14P
Max. cont. Current: 41A/54s
Max. cont. Power: 615W/54s
Phase Cable: 18AWG, 100mm
Bearing: 684ZZ (D9 x d4 x 4)
Diameter: 28.8mm
Length: 50mm
Shaft Diameter: 4mm
Weight: 79g
Recommended ESC: Skywalker V2 30A-50A
Props: 3S: 9x4.5E, 10x5E,10x6E
4S: 7x6E, 8x6E
Clip Mounting Hole Thread: D:12mm-3 x M2.5
Base Thread: D:16mm-2 x M3
D:19mm-2 x M3

Delivery:

1x Skywalker motor 2316 SL 1250kV
1x Manual

(HW30415051)

SKU HW30415051
Barcode # 6938994422031
