Genuine Traxxasâ„¢ Spare Part

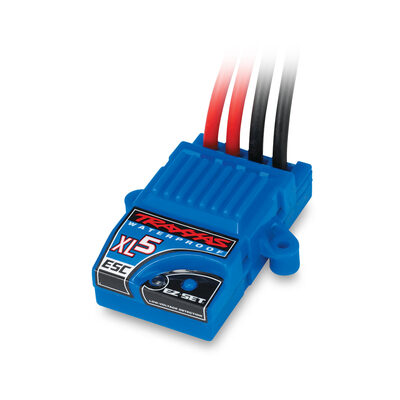

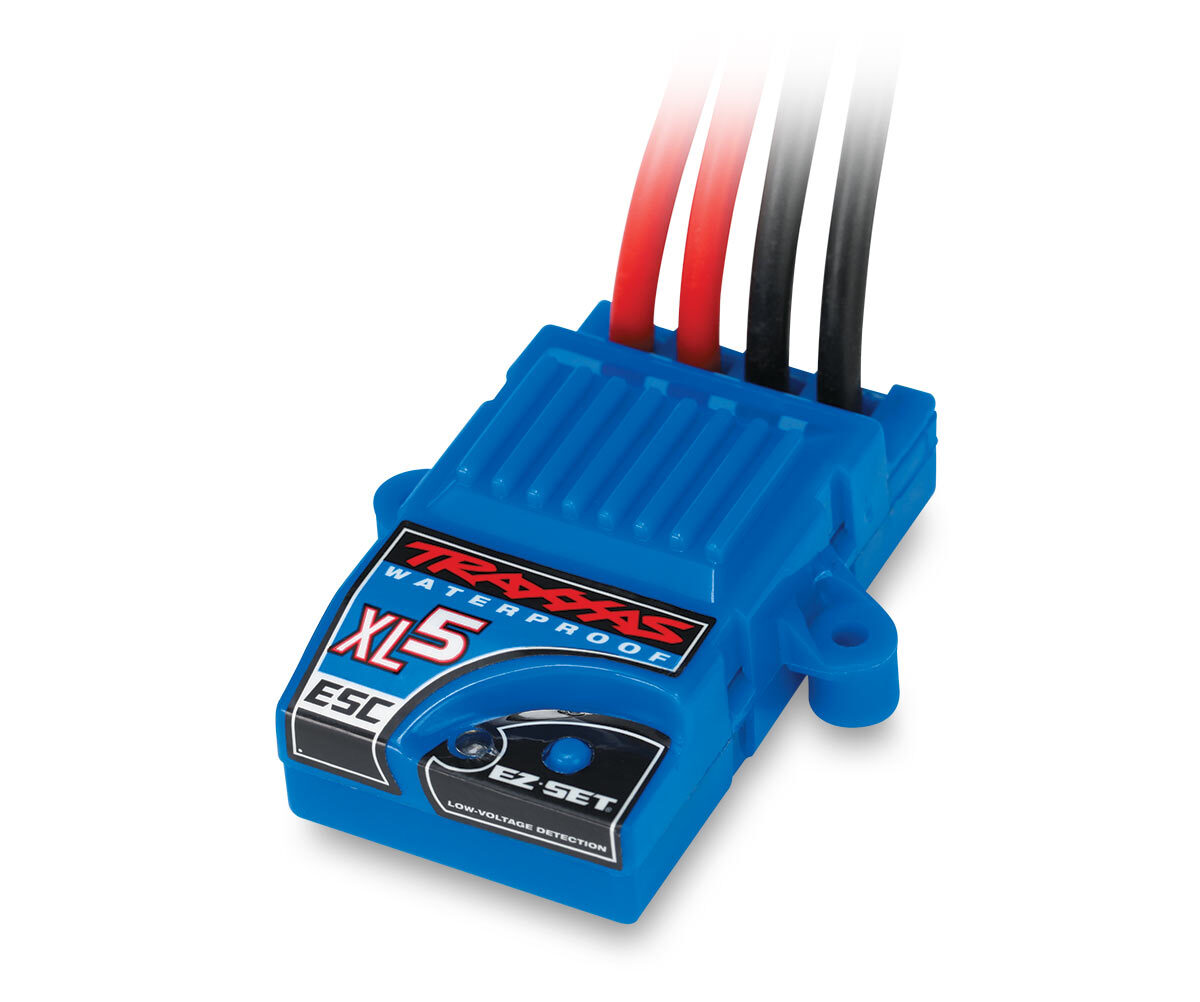

XL-5â„¢ Waterproof FWD/REV ESC
with Low Voltage Detection (LVD)

XL-5 Waterproof Electronic Speed Control (#3018R) (2014) (with LVD) Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, Thermal Shutdown Protection, 4-7 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patented Training Modeâ„¢. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. XL-5 is equipped with two-stage low-voltage detection (LVD) to allow LiPo battery use. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support. The XL-5 is backed by the Traxxas Lifetime Electronics Warranty.

Traxxas High-Current Connector*
The XL-5 ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.

Patented Training Modeâ„¢
An exclusive feature that places the XL-5 ahead of the pack is the patented Training Mode. This feature reduces the overall power output of the XL-5 by 50% making it easier for new drivers to control their model. When they're ready, simply change profiles to unleash full-throttle action. Only Traxxas has it!

XL-5 LVD Waterproof ESC Features

Built-in two-stage low voltage detection (LVD)
for Lithium Polymer (LiPo) battery use
Innovative watersealed design
15-turn motor limit for 540 size motors
12-turn motor limit for 550 size motors
Fully-proportional forward, reverse, and braking control
Programmable with three drive profiles:
- Sport Mode â€“ Fwd / Brake / Rev
- Race Mode â€“ Fwd / Brake
- Training Mode* â€“ 50% Fwd / Brake / 50% Rev
EZ-Set^Â® push-button setup
Multi-color LED
Thermal shutdown protection
Efficient, low-loss MOSFET design
High-capacity heat sink
Smooth, high-frequency operation
Easy installation in Traxxas models
Backed by the Traxxas Lifetime Electronics warranty

XL-5 LVD WATERPROOF ESC SPECIFICATIONS

Input voltage:		4-7 Cells (4.8 to 8.4 Volts DC)
Case Size:		1.23"W x 2.18"D x 0.61" H
Weight:		2.44 Ounce
Motor Limit:		15-turns (540 Size) 12-turns (550 Size)
On Resistance Forward:		0.007 Ohms
On Resistance Reverse:		0.014 Ohms
Peak Current - Forward:		100A
Peak Current - Reverse:		60A
Braking Current:		60A
Continuous Current:		14A
BEC Voltage:		6.0 VDC
BEC Current:		1A
Power Wire:		14 Gauge / 5"
Input Harness Wire:		26 Gauge / 9"
Transistor Type:		MOSFET
PWM Frequency:		1600 Hz
Low Voltage Detection (LVD):		2-Stage indicators, switchable (on or off)
Thermal Protection:		Thermal shutdown
Profile selection:		Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode:* 50% FWD, 100% brakes, 50% REV
Single-button setup:		Yes, Traxxas EZ-Set^Â®
		*Properly geared Patented
