Genuine Traxxasâ„¢ Spare Part

For 16.8-Volt Dual-Battery Dual-Motor Setups!

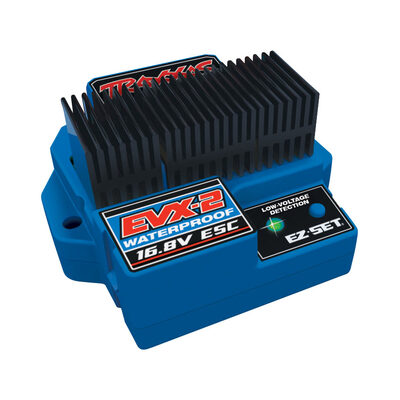

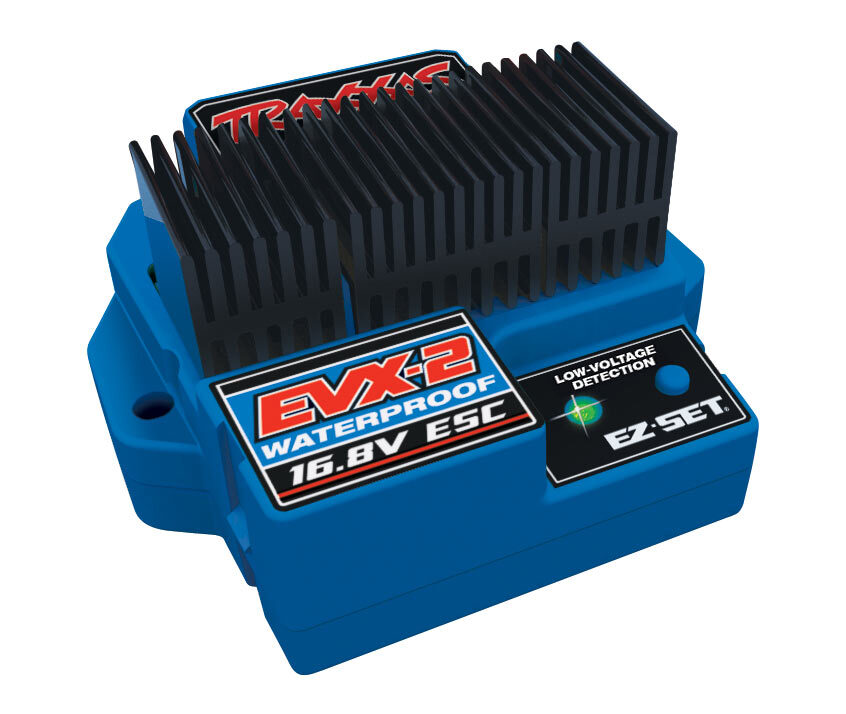

EVX-2â„¢ Waterproof FWD/REV ESC
with Low Voltage Detection (LVD)

EVX-2 with Low Voltage Detection (#3019R)
The EVX-2 delivers an incredible 16-plus volts, from two battery packs, making 16.8-volt, twin-motor setups more powerful than ever! Designed by Traxxas, the EVX-2 features a completely waterproof design, three drive profiles, Thermal Shutdown Protection, and gold-plated patented Traxxas High-Current Connectors. The EVX-2 also includes patented Training Mode.â„¢ This profile reduces the overall power output of the EVX-2 by 50% making it easier for young/new drivers to develop their control skills before unleashing full-power operation. EVX-2 is equipped with two-stage low voltage detection (LVD) to allow LiPo battery use. The EVX-2 is manufactured by Traxxas to ensure the highest level of quality and support. The EVX-2 is backed by the Traxxas Lifetime Electronics Warranty.

Traxxas High-Current Connector*
The EVX-2 is equipped with patented Traxxas High-Current Connectors for restriction-free current flow.

Click here for more info about the patented Traxxas High-Current Connertor.

The EVX-2 uses Traxxas ' exclusive EZ-Set push-button set-up and a multi-colored LED making it a snap to adjust. Its microprocessor control has three built-in programming modes including: Sport Mode with forward, brakes, and reverse; Racing Mode with forward, brakes, and no reverse; and the patented Training Modeâ„¢ that limits forward and reverse power by 50% while still applying 100% brakes. Built-in thermal shutdown protection adds an extra level of safety. Sophisticated, high-frequency operation and low internal resistance provide longer run times, more speed, and more fun!

The exclusive patented Training Modeâ„¢ limits full throttle output to 50% making it easier for new or young drivers to develop their control skills. With the high-frequency efficiency of the EVX-2, run time is also greatly increased. When they're ready, simply change profiles to unleash full-throttle action. Only Traxxas has it!

EVX-2 Waterproof ESC Features

Built-in two-stage low voltage detection (LVD)
for Lithium Polymer (LiPo) battery use
16.8 Volts of Power
Waterproof Design
Microprocessor Controlled
Traxxas High-Current Connectors*
Three Drive Profiles
Patented Training Mode
EZ-Set^Â® Push-Button Set-Up
Thermal Shutdown Protection
For Traxxas E-Maxx^Â®, E-Revo^Â® and Summit

The EVX-2 is warrantied and serviced exclusively
through Traxxas by the Lifetime Electronics Warranty*

EVX-2 LVD (WATERPROOF) SPECIFICATIONS

Input voltage:		6-14 NiCad and NiMH cells (7.2 to 16.8 volts DC) 4-cell LiPo (14.8 volts DC)
Case Size:		2.27"W x 2"D x 1.05"H
Weight:		3.6 ounces
Motor Limit (540 size):		10-turns
Motor Limit (550 size):		12-turns
On-ResistanceÂ (@Trans)â€“FWD/REV:		0.004 ohms / 0.004 ohms
Rated Currentâ€“FWD/REV:		180 amps / 180 amps
Braking Current:		360 amps
Continuous Current (at 100Â°F amb.):		30 Amps
Reverse Delay:		None
BEC Voltage:		6.0 volts DC
BEC Current:		2.5 amps
Power Wire:		14 Gauge / 3"
Input Harness Wire:		26 Gauge / 9.5"
Motor Wires:		14 Gauge / 4"
Transistor Type:		MOSFET
PWM Frequency:		1700 Hz
Thermal Protection:		Thermal shutdown
Profile selection:		Sport Mode: 100% fwd, 100% brakes, 100% rev. Race Mode: 100% fwd, 100% brakes, no rev. *Training Mode:** 50% fwd, 100% brakes, 50% rev.
Single-button setup:		Yes, Traxxas EZ-Set^Â®
		*Patented
