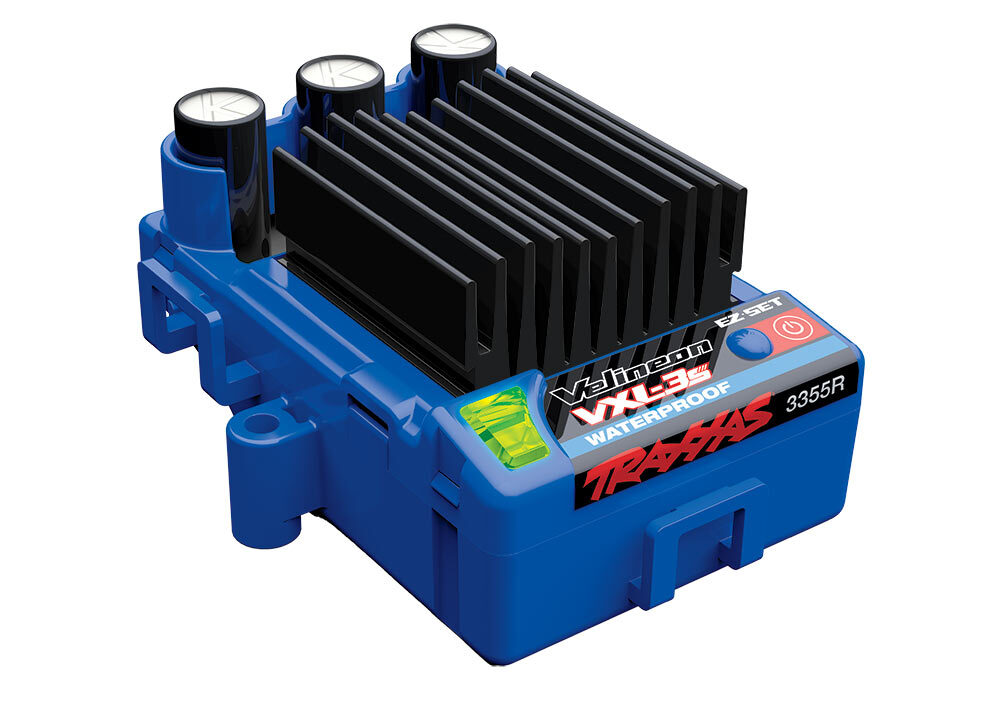

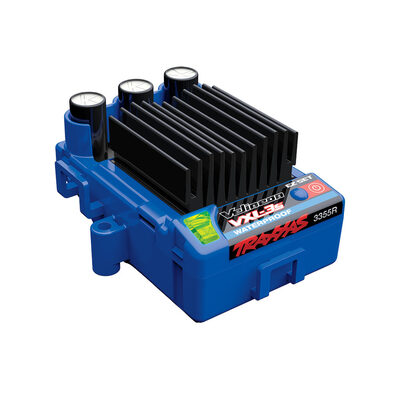

Traxxas Velineon VXL-3s Brushless ESC, Waterproof

SKU: TRA3355R

$349.00
In Stock



Fixed Rate By Invoice Total - $18.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

The Velineon® VXL-3s forward/reverse electronic speed control simplifies brushless technology with easy, built-in profiles. It sets up, operates, and programs just like the Traxxas XL-5â„¢ family of ESCs so there's no tricky new procedures to learn. Traxxas' exclusive patented Training Modeâ„¢ is also included to limit full throttle to 50% for young or inexperienced drivers. For the most advanced users, the VXL-3s is equipped with two-stage low voltage detection to allow LiPo battery use, including powerful 11.1-volt 3S packs! The VXL-3s is manufactured by Traxxas to ensure the highest level of quality and support and is backed by the Traxxas Lifetime Electronics Warranty.




Traxxas High-Current Connector*
The VXL-3s ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.

Click here for more info about the patented Traxxas High-Current Connertor.







Assembled with Maxx® Cable (12-gauge wire)
This super-flexible, high-current, low-resistance 12-gauge, wire acts like a series of giant pipes, flowing energy in and out of the VXL-3s electronic speed control and into the Velineon 3500 motor. The patented Traxxas Connector combined with Maxx cable is a better engineered solution for extracting all the power your battery has to give.







Velineon VXL-3s Waterproof Features

  • Patented Traxxas High-Current Connector eliminates a common bottleneck and maintains pure, unrestricted power flow from the battery to the brushless power system.
  • Built-in two-stage low voltage detection for Lithium Polymer (LiPo) battery use provides a clear signal to the driver that the battery pack is nearing its minimum voltage threshold.
  • Widest range of battery options ranging from 4-cell NiMH or NiCad packs all the way up to 3S LiPo battery packs (11.1 volt)
  • The patented Training Modeâ„¢ is an exclusive Traxxas feature that reduces the overall power output of the VXL-3s by 50%, making it easier for new or younger drivers to control their model. When they're ready, simply change profiles to unleash full-throttle action.
  • The EZ-Set® push-button setup operates and programs just like other Traxxas speed controls such as the XL-5. This eliminates the need to learn a new set of procedures.
  • The VXL-3s is programmable with three drive profiles:
    • Sport Mode â€“ Fwd / Brake / Rev
    • Race Mode â€“ Fwd / Brake
    • Training Mode**â„¢ â€“ 50% Fwd / Brake / 50% Rev
  • Multi-color LED provides clear feedback
  • Two-stage thermal shutdown protection protects the VXL-3s from overheating.
  • Locked Rotor Protectionâ„¢ prevents system damage by cutting power if the vehicle is stuck or the motor is bound.
  • Battery Over-Voltage Protectionâ„¢ causes the ESC to go into failsafe mode if the maximum input voltage is exceeded.
  •
  • Water resistent case design uses rubber seals and o-rings to protect against damage caused by water and moisture.
  • Micro-fin aluminum heatsink dissipates heat.
  • The built-in auxiliary fan output powers a snap-on accessory fan for increased cooling capacity during extreme use. A handy clasp on the speed control case keeps the wire neatly in place until you are ready to use it.
  • MOSFET design provides high-current output (320 amp peak) with incredibly low resistance (.00075 Ohm).
  • Gold plated 3.5mm bullet connectors on 12-gauge Maxx® Cable flow full power to the motor without performance strangling resistance.
VXL-3s WATERPROOF ESC SPECIFICATIONS
Input Voltage:   NiCad/NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
Case Size:   39mmW x 55mmD x 33mmH
Weight:   90 grams
Motor Limit (Brushless):   No motor limit
On Resistance Forward:   0.00075 Ohms
On Resistance Reverse:   0.00075 Ohms
Peak Current - Forward:   320A
Peak Current - Reverse:   320A
Braking Current:   320A
Continuous Current:   200A
BEC Voltage:   6.0 V
BEC Current:   2.5A (with 6-cell NiMH)
Power Wire:   12-Gauge Maxx® Cable
Input Harness Wire:   26 Gauge / 100mm
Transistor Type:   MOSFET
Low Voltage Detection:   2-Stage indicators, switchable (on or off)
Thermal Protection:   2-Stage thermal shutdown
Profile selection:   Sport Mode:
    100% FWD, 100% BRAKES, 100% REV
Race Mode:
    100% FWD, 100% BRAKES, NO REV
Training Mode:**
    50% FWD, 100% BRAKES, 50% REV
Single-Button Setup:   Yes, Traxxas EZ-Set®
Battery Input Connector :   Traxxas High-Current Connector
Motor Types :   Brushless
Ports:   RX Input, auxiliary fan

(TRA3355R)

SKU TRA3355R
Brand TRAXXAS
Shipping Weight 0.5000kg
